Electrical Installation 59-

4.2 Example for a Fail-Safe monitoring of the PI with a PLC

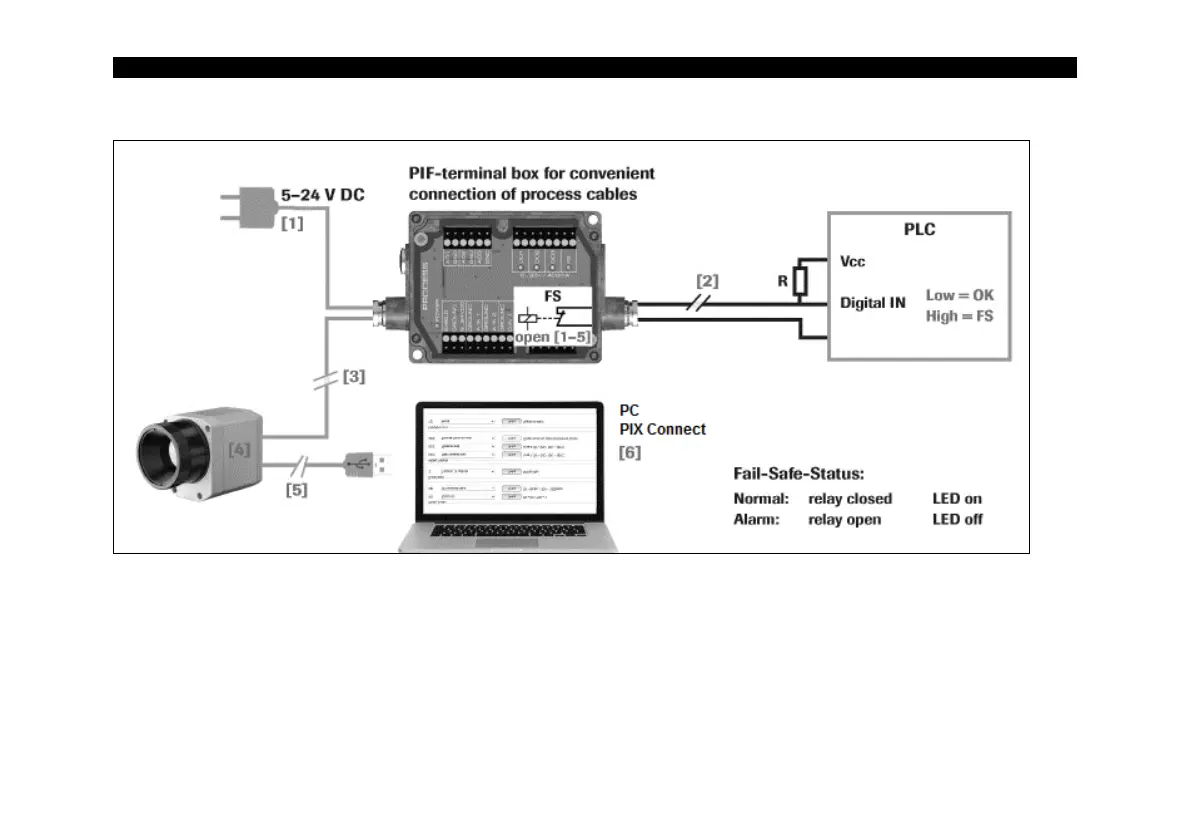

Figure 35: Fail-Safe monitoring states

Fail-Safe monitoring states

[1]

Breakdown of PIF power supply

[4]

Malfunction of PI

[2]

Cable break of fail-safe cable

[5]

Breakdown of PI power supply/ Interruption of USB cable

[3]

Interruption of cable PI-PIF

[6]

Malfunction of PIX Connect software
