optris PI 400i User Manual

-92 -
Digital Input:

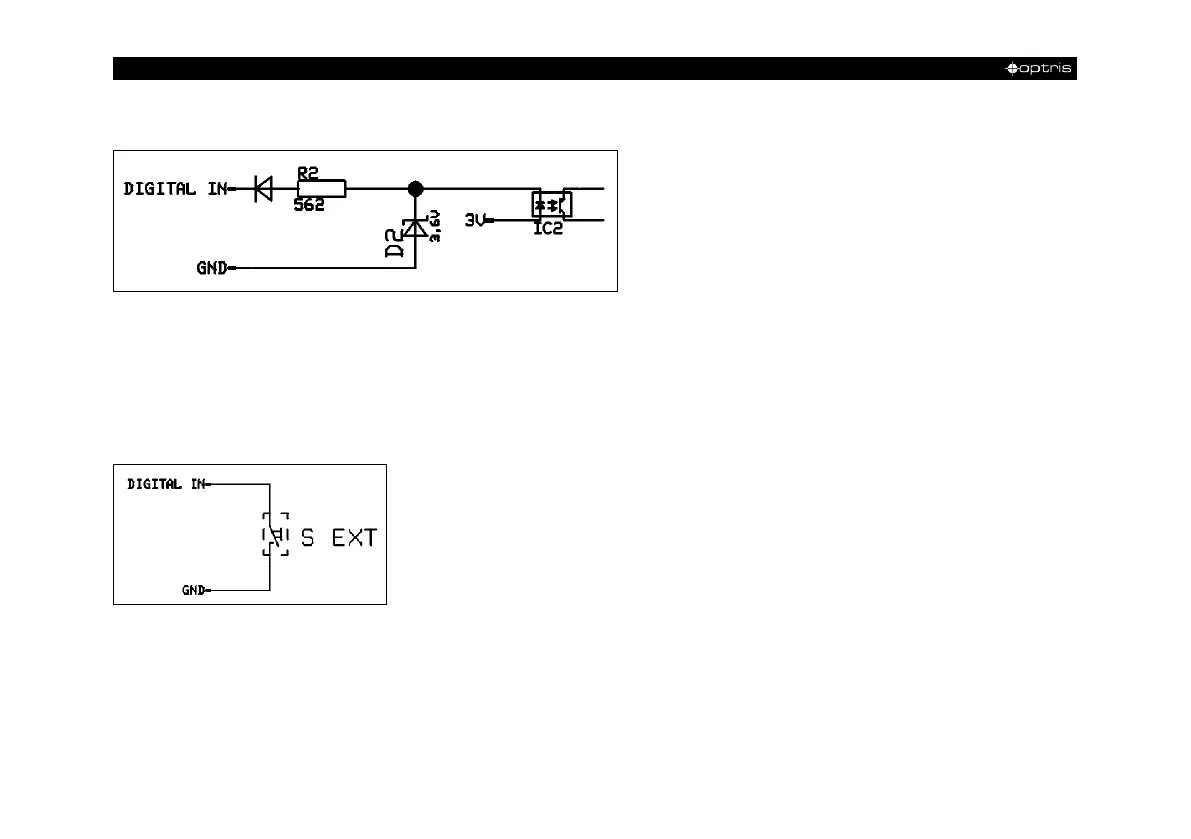

Figure 52: Digital input
The digital input can be activated with a button to the PI GND-Pin or with a low level CMOS/TTL signal: Low
level 0…0.6 V; High level 2…24 V
Example Button:
Figure 53: Button
