Install the Oracle Database Appliance X5-2 DE2-24C Storage Shelf Into a Rack
Chapter4 • Installing the System Into a Rack 81
7.

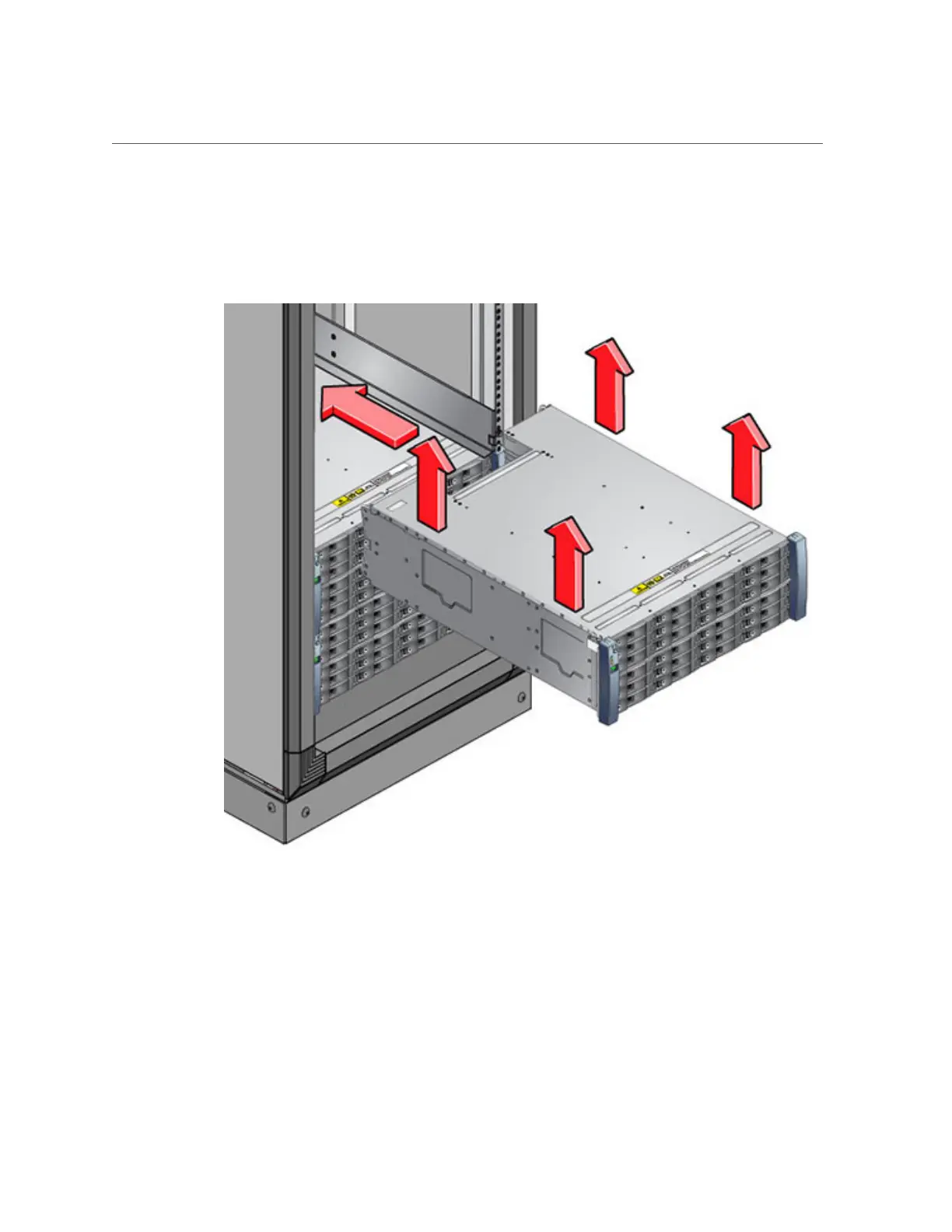

Using a mechanical lift or three people, one at each side of the storage shelf and
one in front, carefully lift and rest the shelf on the bottom ledge of the left and
right rails. Do not lift using the power supply handles.
8.
Carefully slide the shelf into the cabinet. Ensure that the shelf is fully seated
within the rails. If removing the shelf to reseat it, support it at all times.
9.
Remove the front side caps, install two screws into each front side, and replace
the caps.
