Install the Oracle Database Appliance X3-2/X4-2 DE2-24P Storage Shelf Into a Rack
82 Oracle Database Appliance Owner's Guide • March 2017
10.

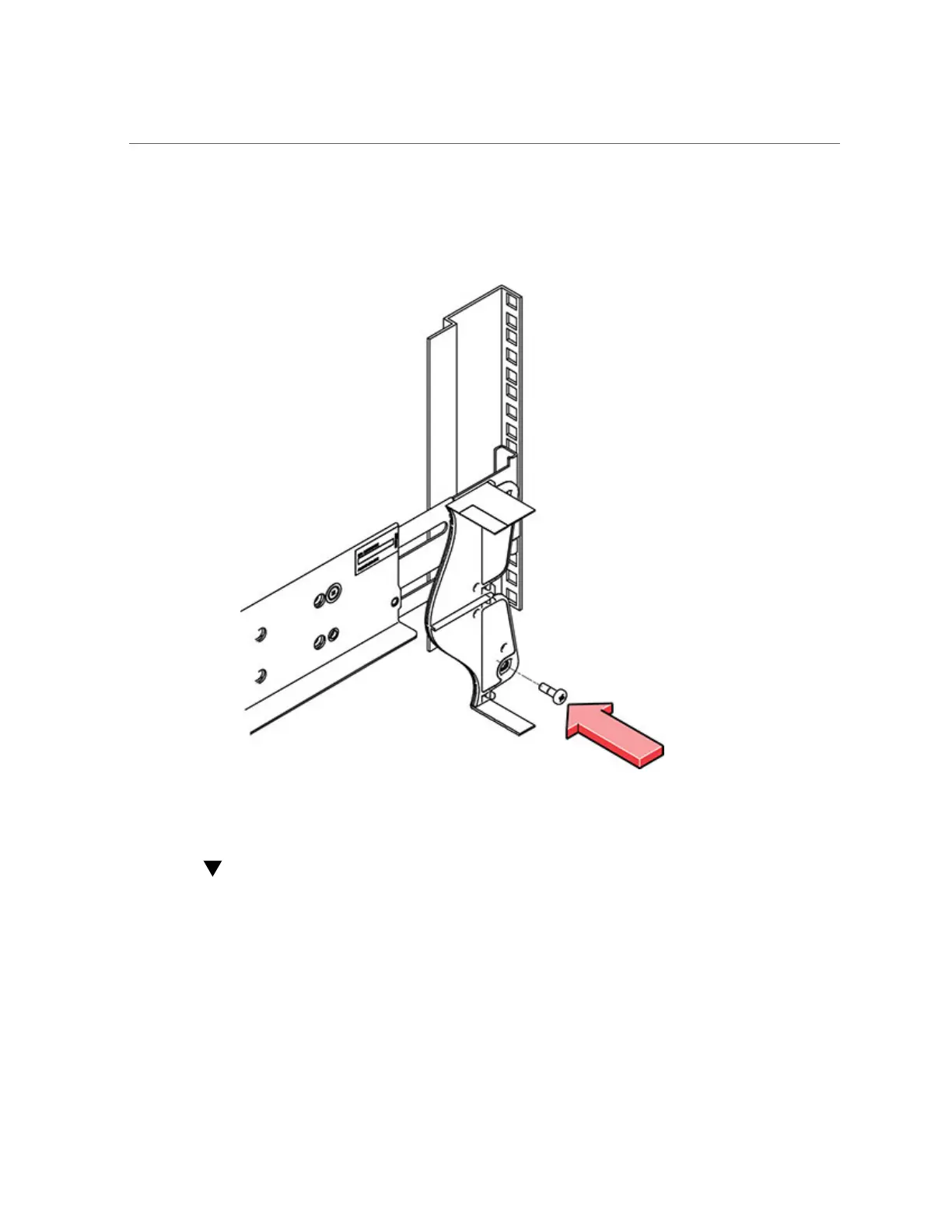

Install one long patchlock screw per rail to secure the rear of the shelf to the rear
of the rack.
11.
Repeat these steps if you have an additional storage shelf to install.
Install the Oracle Database Appliance X3-2/X4-2 DE2-24P Storage Shelf
Into a Rack
The Oracle Storage Drive Enclosure DE2-24P requires two standard mounting units (2RU) of
vertical space in the cabinet. The storage shelf rack-mount kit contains two rack rails, long and
short M6 screws, and a 10mm wrench.
Before You Begin
This task provides instructions for both threaded and unthreaded racks.
■
Ensure that your site meets the requirements in “Oracle Database Appliance
Specifications” on page 48
