ORANGE 100BXT - Top Panel

9

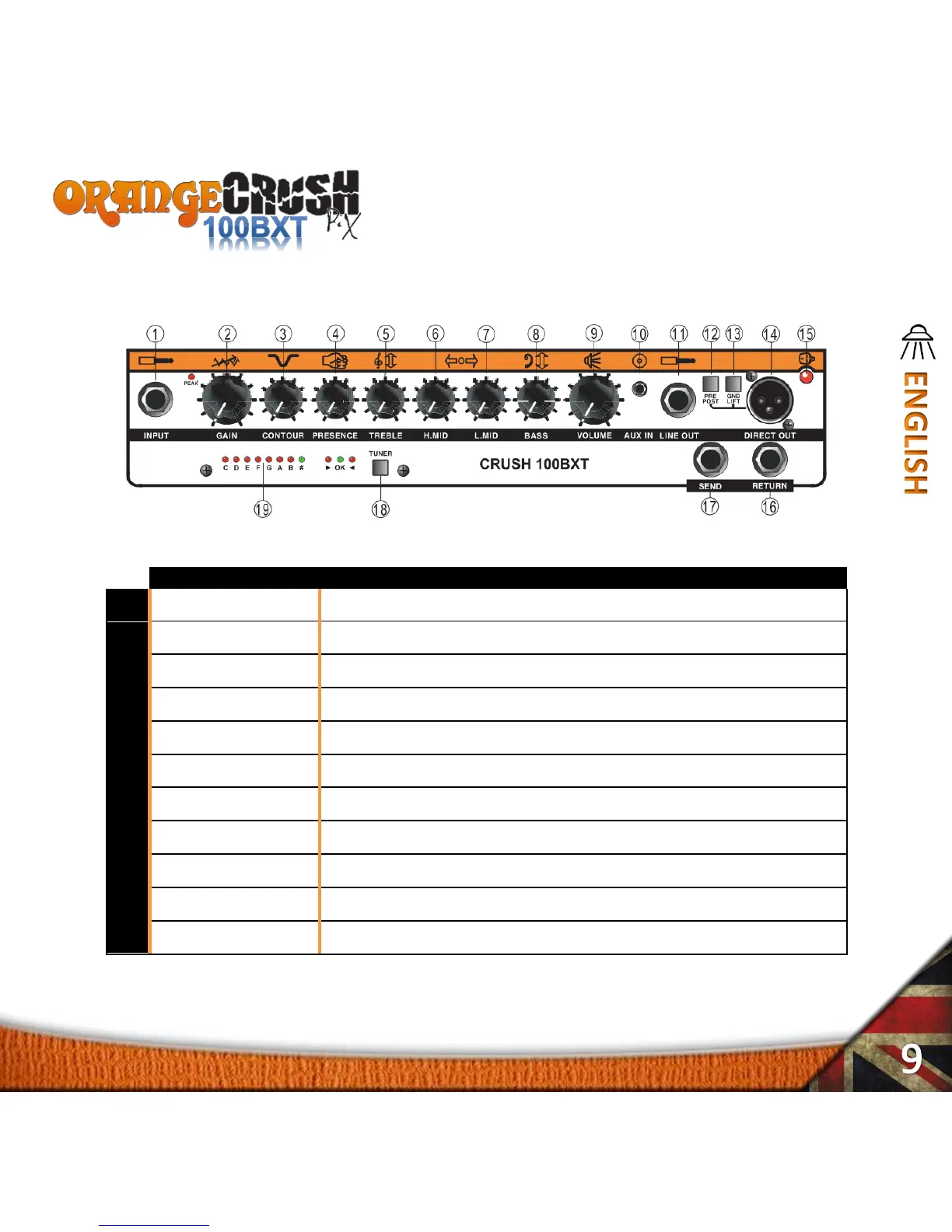

TOP PANEL
NAME
DESCRIPTION
1
INPUT
Plug your guitar into this input
2
GAIN
The gain control adjusts the gain
3
CONTOUR
When turning clockwise, a boost is achieved in both the bass and treble ranges, while the
midrange is being slightly cut
4
PRESENCE
Adds higher frequencies to the guitar tone, creating crispness and bite
5
TREBLE
Provides high frequency equalization as required
6
H.MID
Provides high middle frequency equalization as required
7
L.MID
Provides low middle frequency equalization as required
8
LOW
Provides low frequency equalization as required
9
VOLUME
Controls the overall volume of the amplifier
10
AUX IN
Use this 1/8” stereo mini jack to connect the output of a CD or MP3 player, laptop, etc to the
amplifier - The jacks are internally summed to a mono signal
11
LINE OUTPUT
Use this unbalanced jack to send a line level signal to another amplifier, the mixing board, or
recording console.
