ORANGE OR15 User Manual

10
OR15
ENGLISH

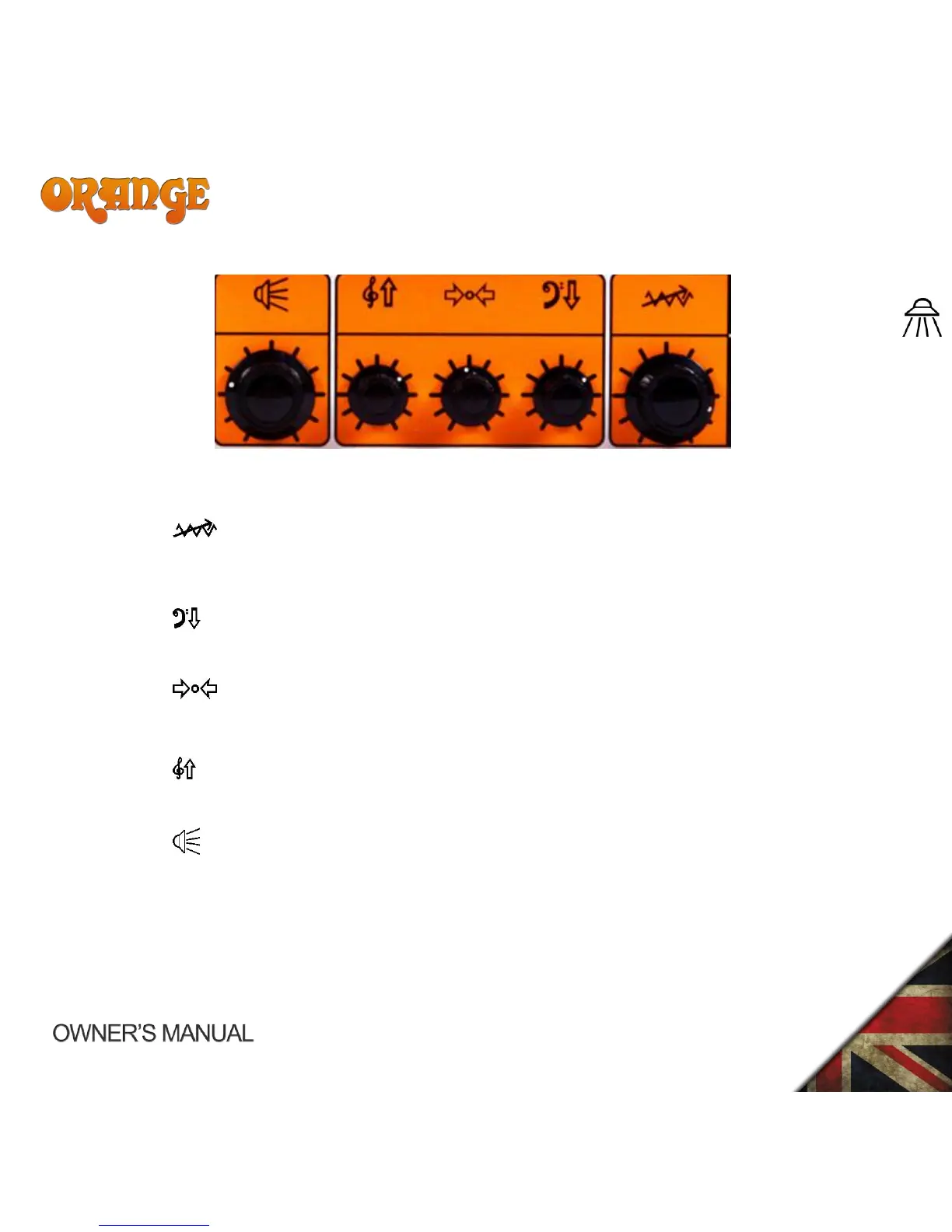

GAIN CONTROL.
The gain control adjusts the gain. High levels of gain will heavily overdrive the pre-amp. With the
gain set to zero, no sound will be heard.
BASS CONTROL
The Bass control adjusts the level of bass after the pre-amp stages and before the FX Loop.
MIDDLE CONTROL
The Middle control adjusts the level of midrange after the pre-amp stages and before the FX
Loop.
TREBLE CONTROL
The Treble control adjusts the level of treble after the pre-amp stages and before the FX Loop.
VOLUME CONTROL
The volume control adjusts the output volume. High levels of volume will heavily overdrive the
output stage.

ORANGE OR15 Specifications

General

Power Output	15 Watts
Channels	1
Footswitch	No
Controls	Gain, Volume
Valves	ECC83, EL84
Type	Tube Amplifier
Impedance	16 Ohm, 8 Ohm
Speaker	1 x 10" Voice of the World
Effects Loop	Yes
Speaker Output	1 x 16 Ohm
Dimensions	48 x 24 x 24 cm
