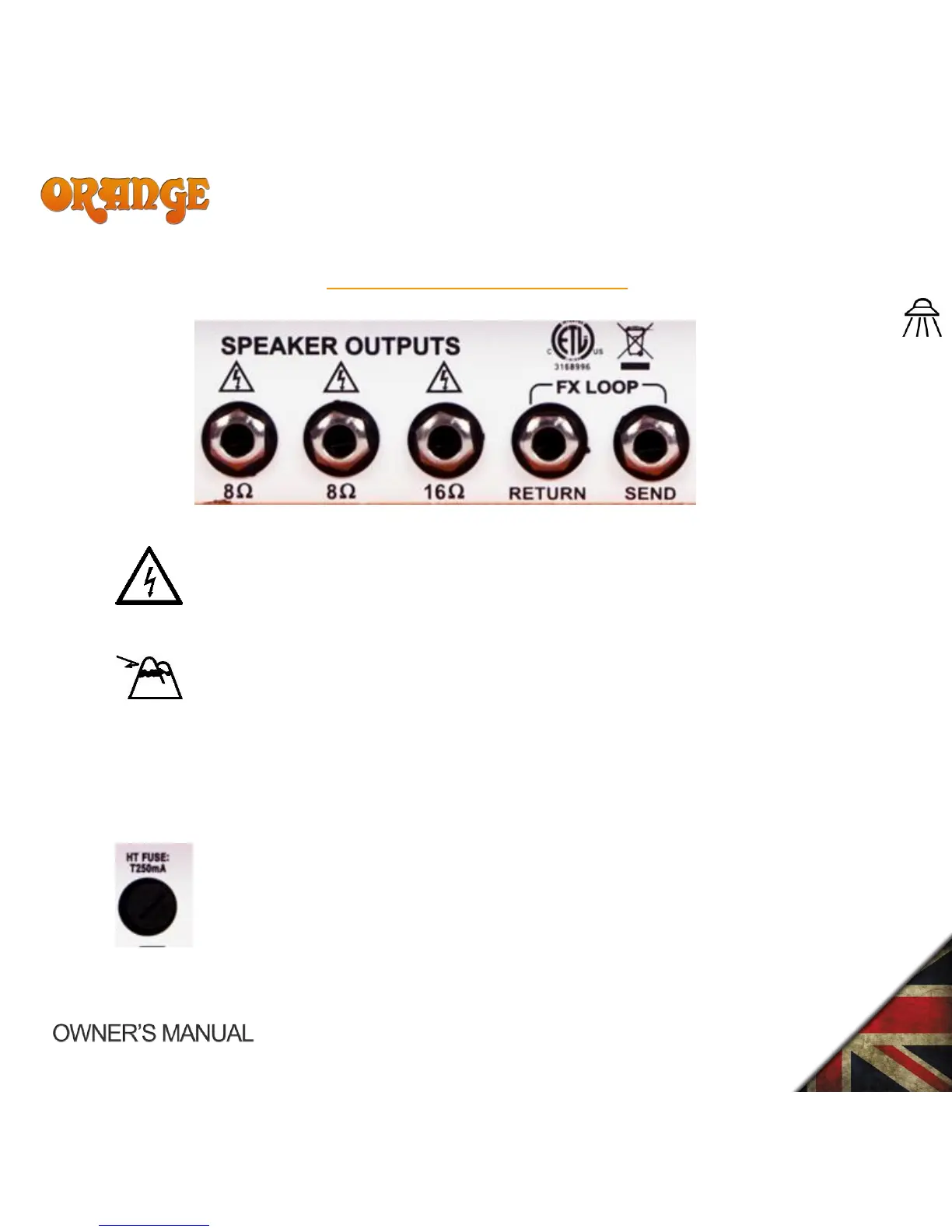

REAR PANEL FEATURES
SPEAKER OUTPUTS (8 Ω, 8 Ω, 16 Ω)
Please refer to “Using Your Amplifier”.
EFFECTS LOOP SEND AND RETURN JACK SOCKETS.
The effects loop, send and return jack sockets are intended for use with outboard pedals
or rack equipment such as delay, reverb and chorus etc.
Effects such as wah-wah, fuzz, distortion etc, would probably be best placed between the guitar
and amplifier input.
The effects loop is wired in series with the pre-amp signal and is completely valve driven.
HT FUSE. (T250MA)
Please contact a qualified service technician if this fuse fails!

ORANGE OR15 Specifications

General

Power Output	15 Watts
Channels	1
Footswitch	No
Controls	Gain, Volume
Valves	ECC83, EL84
Type	Tube Amplifier
Impedance	16 Ohm, 8 Ohm
Speaker	1 x 10" Voice of the World
Effects Loop	Yes
Speaker Output	1 x 16 Ohm
Dimensions	48 x 24 x 24 cm
