MAXIMUM AND MINIMUM SADDLE
HEIGHT WITH A DROPPER SEATPOST
Find below a table with the maximum and minimum possi-
ble height with the seatpost in its extender position.
The maximum height refers to the seatpost installed in its
minimum insertion, which is dened by the seatpost.
The minimum height refers to the seatpost installed in its
maximum insertion, which is dened by the frame.
Only the measurements with the seatpost and saddle
options offered by Orbea for a given frame are listed. To
know these measurements for any other seatpost brand
and model, consult the seatpost dimensions with the man-
ufacturer and check the maximum insertion for each size
frame on this manual.

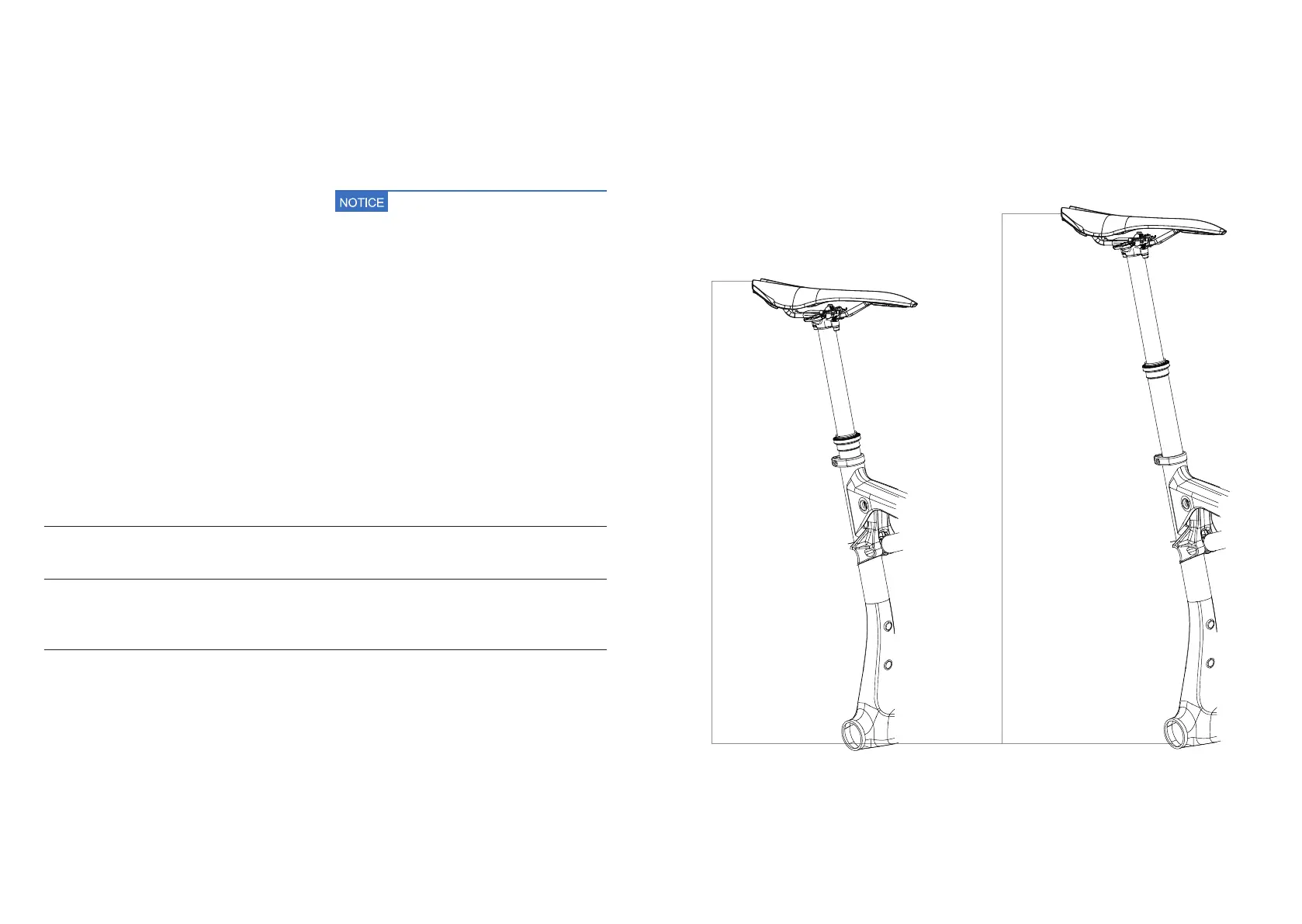

L (MIN) L (MAX)
The measurements given show the distance
between the center of the bottom bracket
shell to the middle of the saddle´s top (saddle
models specicated from Orbea).
Different saddle models in the market may
vary these heights by +/-5mm depending
on the saddle model height. If your saddle
height differs from the values on the table by
less than 5mm, it may be possible to adjust
the height by means of an aftermarket saddle
of a different height.
If your saddle height differs from the values
on the table by more than 5mm, choose a
longer or shorter travel seatpost.
FRAME/SIZE
DROPPER
SEATPOST
MODEL
ALMA H (S) ALMA H (M) ALMA H (L) ALMA H (XL)
OC 27.2
80mm
drop
Maximum
saddle height
724mm* 769mm* 806mm* 857mm*
Minimum
saddle height
660mm* 654mm* 670mm* 721mm*
*The measurements may vary +/-5mm depending on the height of
the saddle model.
