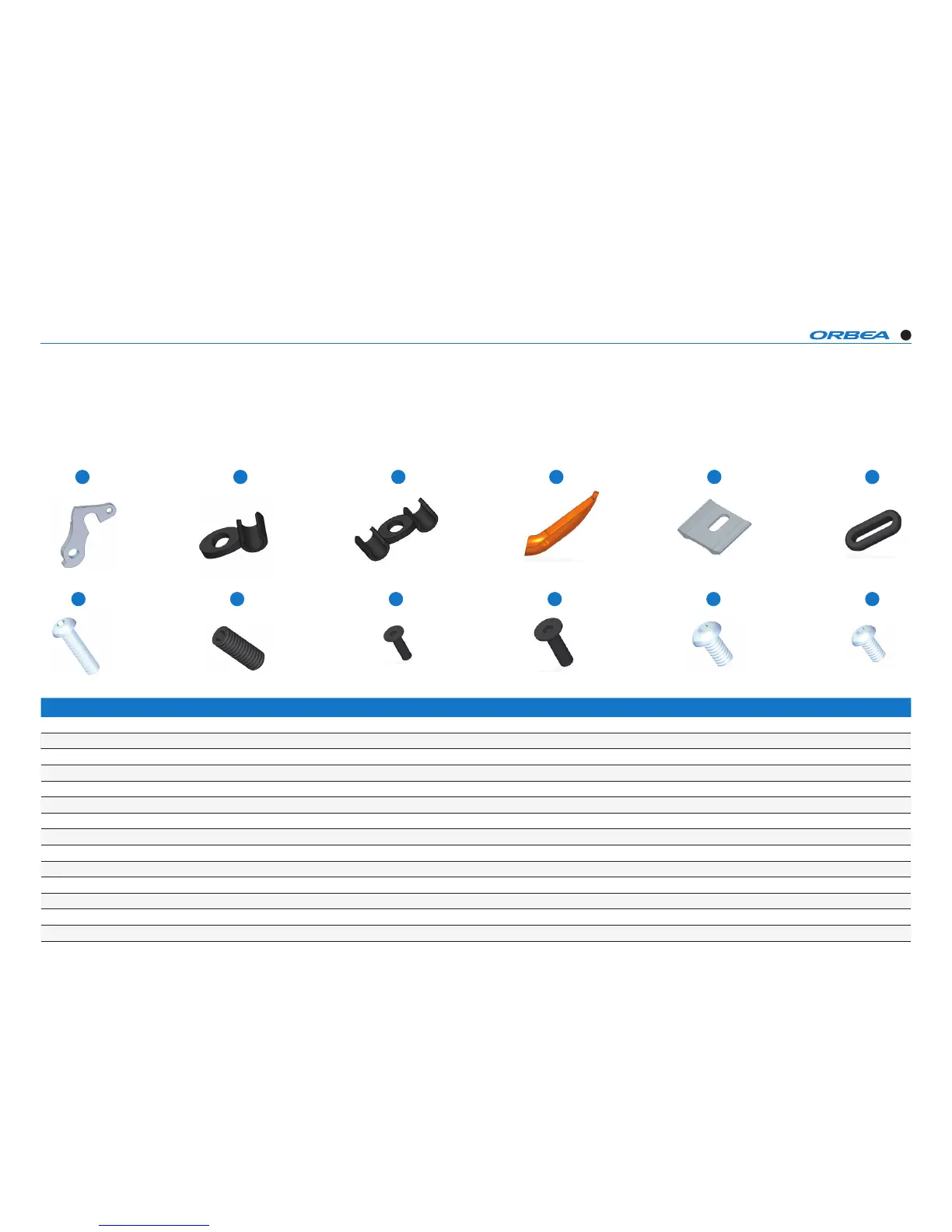

GAIN TECHNICAL SPECIFICATIONS
10
4 632 51
PARTS & HARDWARE
VARIOUS & CAPS
PART NUMBER REFERENCE ORBEA DESCRIPTION
1 15430166 DROPOUT GAIN 2018
2 11001181 CABLE CLIP 5,5 FOR 1 CABLE
3 11001182 CABLE CLIP 5,5 FOR 2 CABLES
4 11000405 BOTTOM COVER GAIN
5 11200460 GUIDE FOR BATTERY GAIN
6 11001161 RUBBER CAP 3 MM KEYHOLE 30X10
7 12300019 SCREW M5X20 ISO 7380 INOX
8 12301058 SETSCREW M4X10 DIN 916 INOX
9 12309075 SCREW INOX M3X12 DIN 7911 BLACK
10 12300018 COUNTERSINK SCREW M5X25 DIN 7991 INOX
11 12306022 SCREW M5X10 ISO 7380 INOX
12 12301078 SCREW M5X8 ISO 7380 INOX
13 12301087 SCREW M5X6 TORX
14 12321020 WASER M5 DIN 125 INOX
