DROPPER OC28 | ORBEA TECHNICAL MANUAL OC | 9
EN

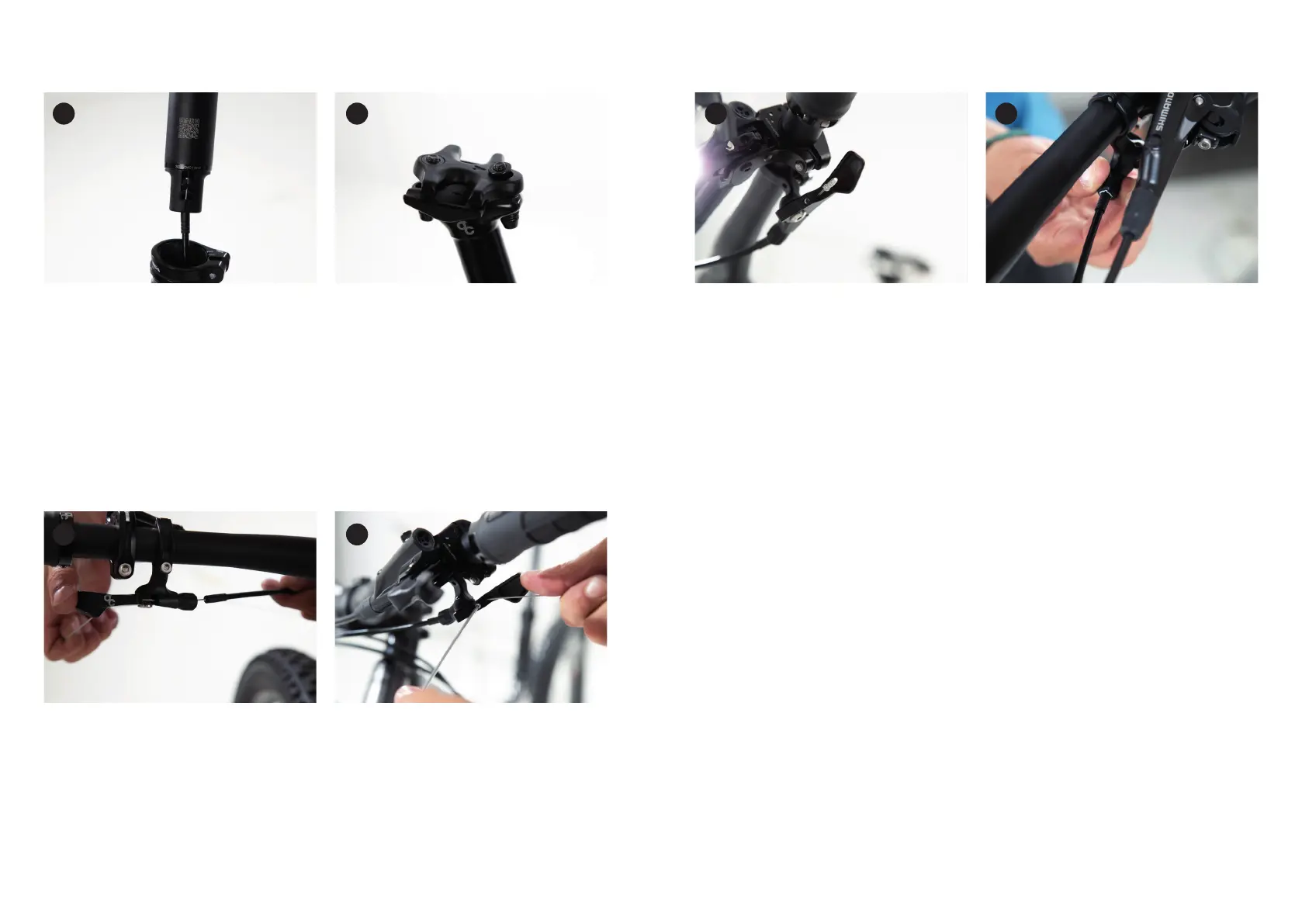

Install the gear cable´s head into its housing on the sea-
tpost actuator and insert the outer cable into its housing
on the seatpost base.
Guide the cable through the remote´s barrel adjuster and through the hole on the lever. Lightly pull from the cable to
remove any slack and tighen the lever setscrew (1,2Nm). Cut the cable and install a metal cable end.
Insert the seatpost into the seat tube while carefully pu-
lling from the outer cable from the front of the bike until
the seatpost is at the desired height. The arrow on the
saddle clamp should point to the front of the bike.
Tighten the seatpost clamp (5Nm-6Nm)
On aluminum frames, apply a thin layer of lithium grease
on the part of the seatpost that will be inserted into the
frame. On carbon frames use carbon assembly compound.
Adjust the cable tension with the barrel adjuster until there
is no play on the lever. New cables can develop slack until
they completely settle, remove any slack with the barrel
adjuster after the rst rides.
8
10.1 10.2
10.3
119
