DROPPER OC216 | ORBEA TECHNICAL MANUAL OC | 17
EN

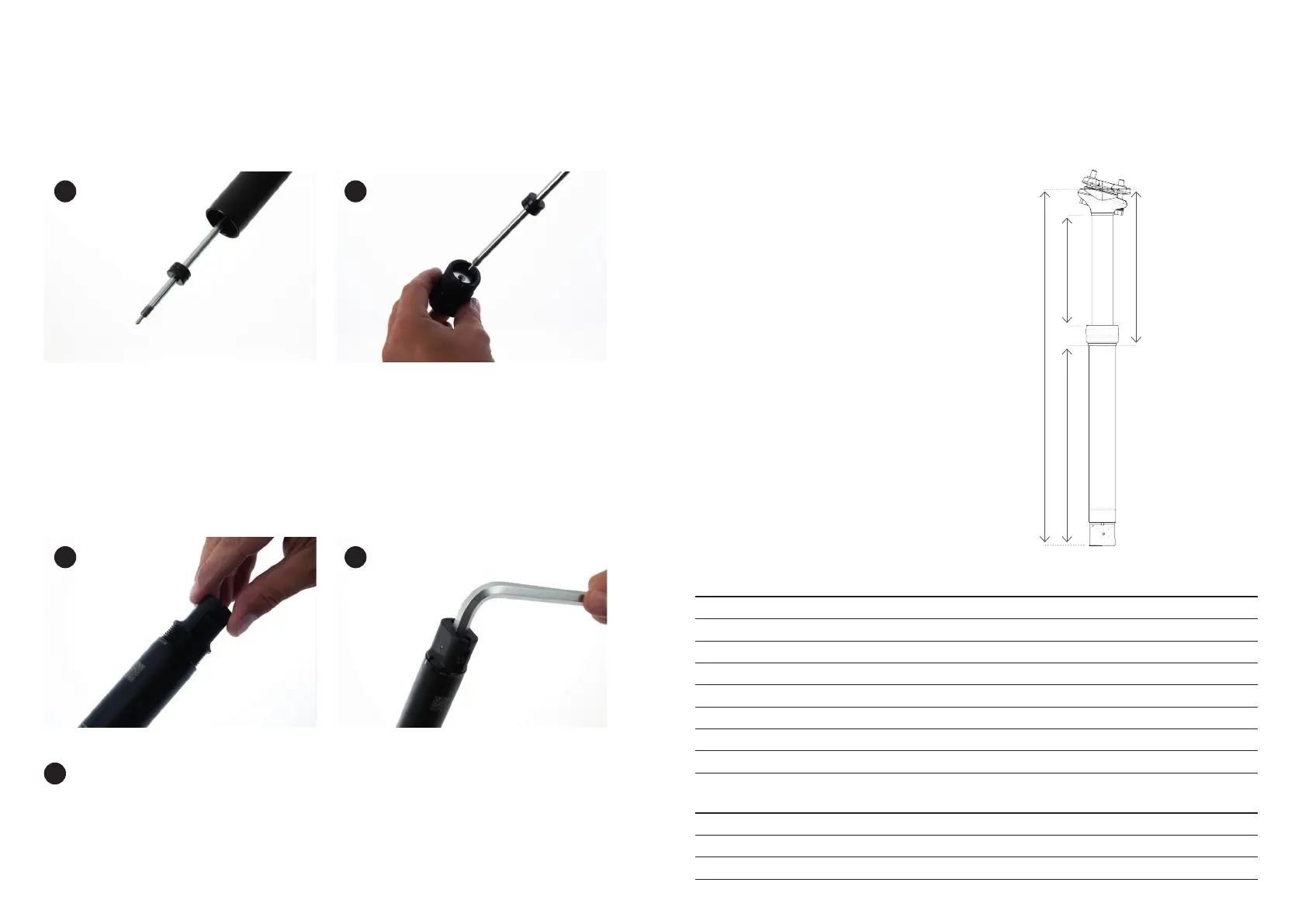

Install the rubber bottom out bumpers onto the cartridge
shaft.
Check the correct operation of the OC2 Drpper. Install the saddle clamp assenmbly, the saddle and the seatpost on the
bike.
The hydraulic cartridge, the lower tube and the upper tube
of the OC2 Dropper have specic lenghts for each sea-
tpost size (drop). Order the correct kit for your seatpost.
Do not mix components from different lenght kits.
SERVICE KITS
8
9.2
10
9.1
9.3
Slide the lower tube upwards and screw the actuator as-
sembly.
To avoid crossthreading the shaft, rst screw a couple of
turns the actuator assembly onto the shaft, then slide the
outer tube downwards and screw the actuator assembly
into the lower tube.
Tighten the actuator assembly to 5Nm using a 10mm allen
wrench.
31.6MM SEATPOSTS MEASUREMENTS
DROP (D) LENGHT
L L1 L2 L3 L4 L5
50mm 288mm 108mm 180mm 150mm 138mm 170mm
75mm 313mm 133mm 180mm 175mm 163mm 170mm
10mm 363mm 148mm 215mm 200mm 188mm 195mm
125mm 413mm 183mm 230mm 225mm 213mm 220mm
150mm 463mm 208mm 255mm 250mm 238mm 245mm
170mm 503mm 228mm 275mm 270mm 258mm 265mm
27.2MM SEATPOSTS MEASUREMENTS
DROP (D) LENGHT
L L1 L2 L3 L4 L5
80mm 404,5mm 140,5mm 264mm 255mm 179mm 255mm
L1
L2
D
L
