DROPPER OC210 | ORBEA TECHNICAL MANUAL OC | 11
EN
SERVICE
This guide is intended for authorized Orbea dealers. The service and repair of the OC2 Dropper should not be carried out
by the end consumer, risking damages to the components that are not covered by the warranty.
After every 100 hours of use, or in case of excesive play on the seatpost, the bushings, guides and the seal collar ring
should be replaced.
DISASSEMBLY
Tools needed:
· 3mm Allen wrench.
· 10mm Allen wrench.
· Assembly grease

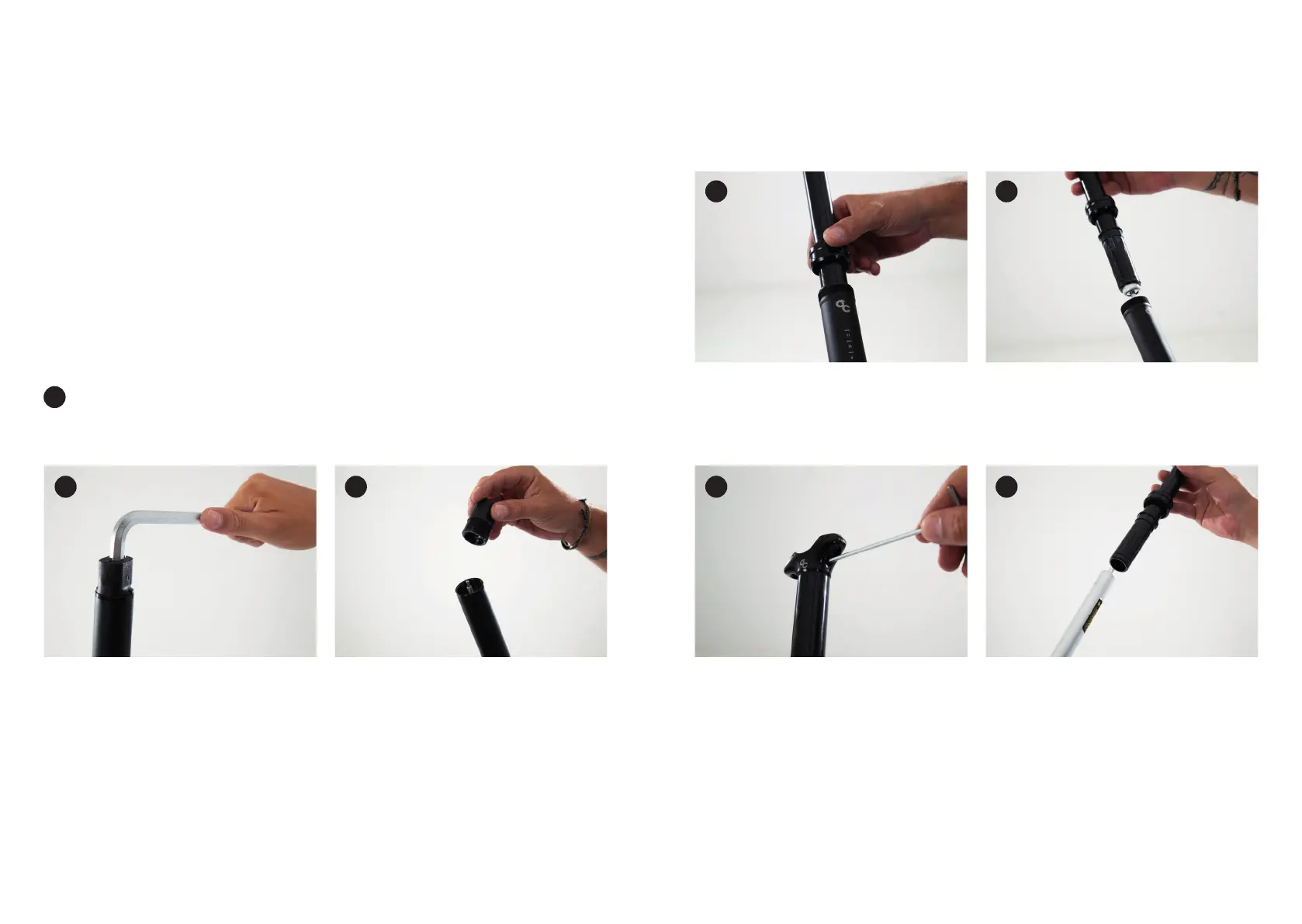

Completely remove the seatpost from the bike. Remove
the saddle and the saddle clamp assembly.
Hold the seatpost with your hand or soft rubber jaws and use a 10mm Allen wrench to unscrew the actuator from the
base of the seatpost.
With your bare hands, unscrew the seal collar ring and remove the outer tube from the upper tube assembly.
With a 3mm Allen wrench, unscrew the setscrew at the back of the seatpost head. Remove the hydraulic cartridge from
the inside of the upper tube assembly. Remove the rubber bottom out bumpers from the cartridge shaft. Clean the car-
tridge with a soft cloth if you are going to re-use it.
2.1
3.1
4.1
1
2.2
3.2
4.2
