DROPPER OC212 | ORBEA TECHNICAL MANUAL OC | 13
EN

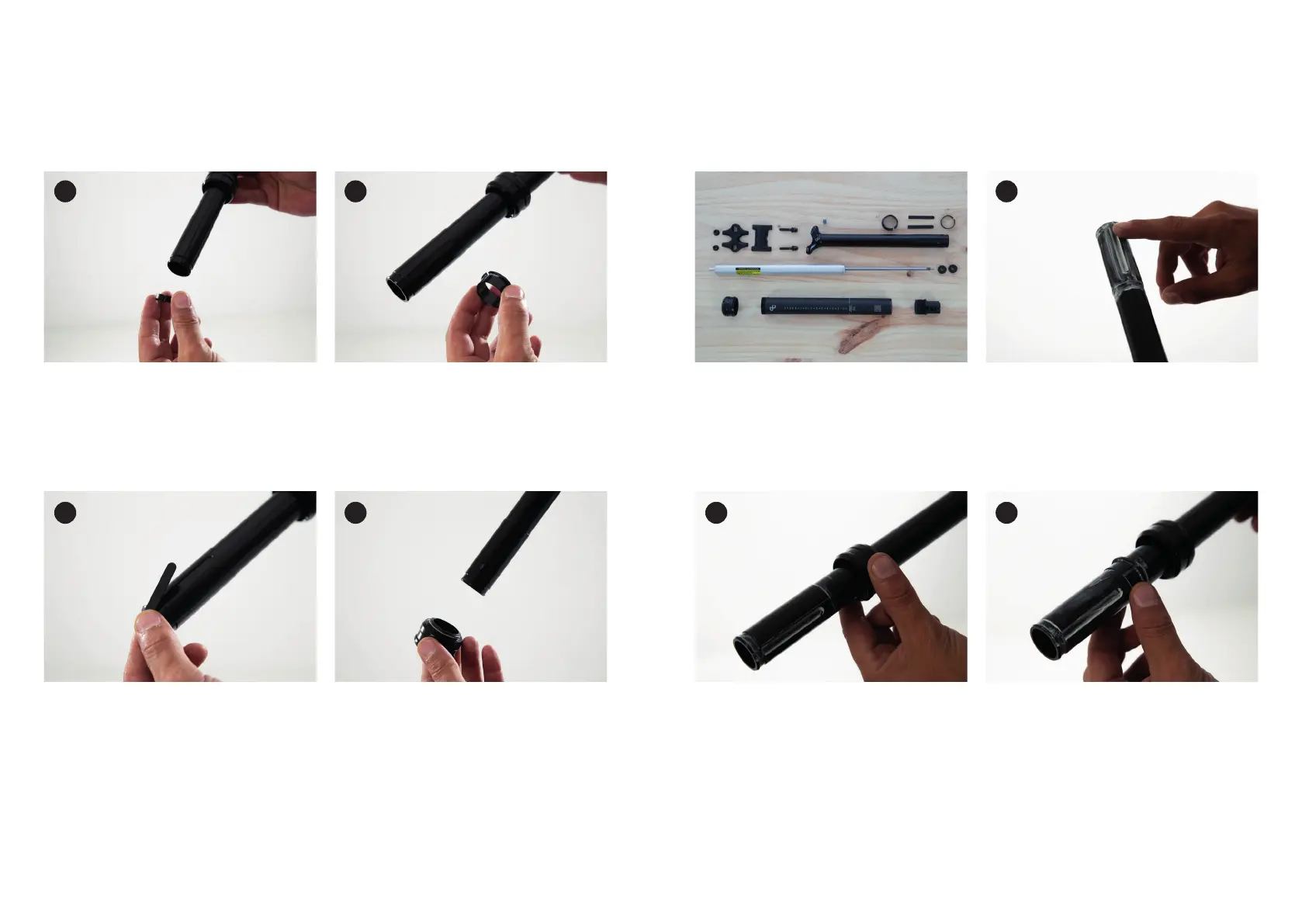

Remove the lower and upper bushing from the upper seatpost assembly.
Remove the plastic guides from the upper tube assembly.
You can use a small screwdriver to remove them from their
housing. Be careful not the scratch any surface.
Slide down the seal collar ring to remove it from the upper
tube.
ASSEMBLY
Clean thoroughly all components before assembling back
the OC2 Dropper.
Use new bushings, guides and seal collar ring (kit E)
Slide the seal collar ring onto the upper tube. Install the
upper bushing.
Apply a thin layer of grease on the guides housings and
the areas where the bushings will be installed.
5.1
2.16
15.2
2.27
