6

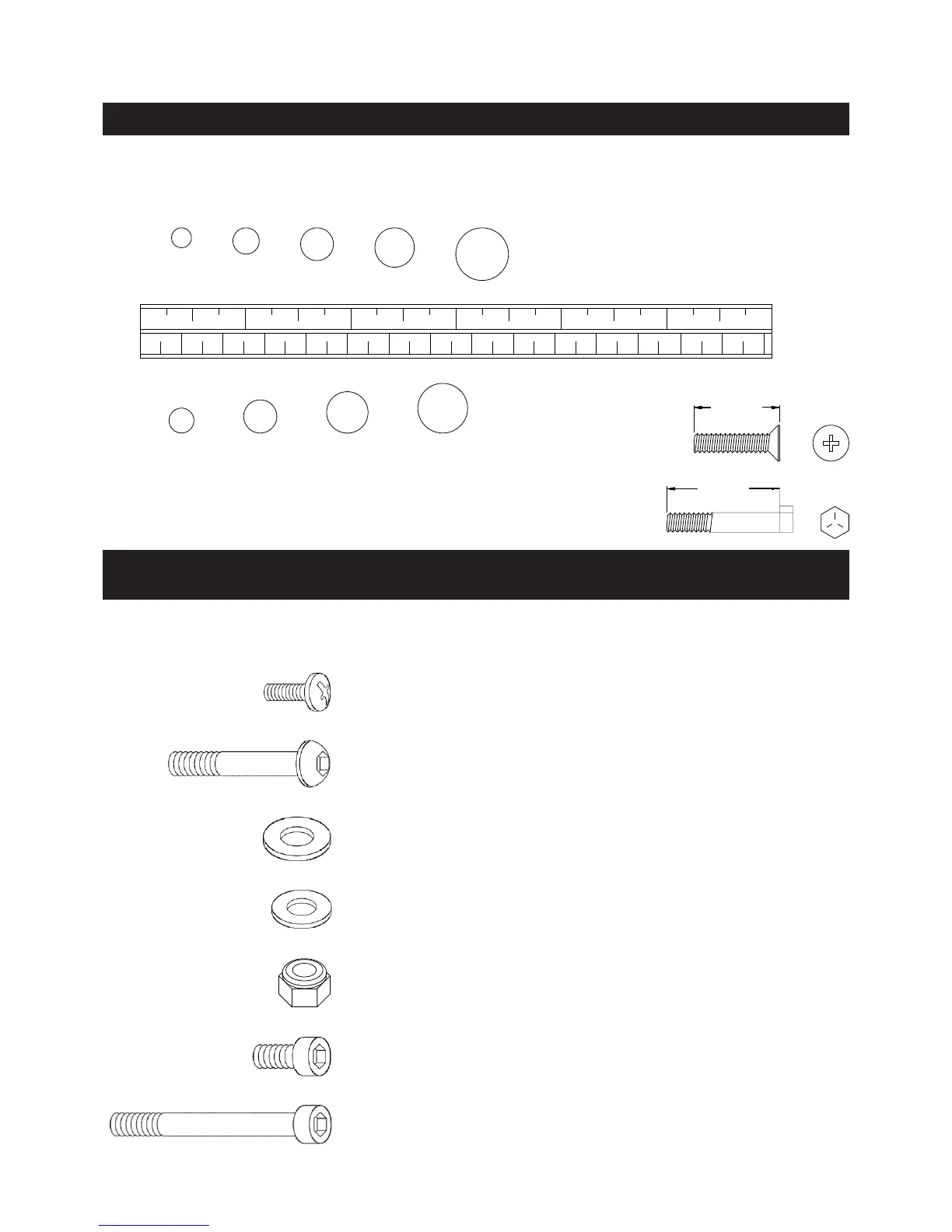

HARDWARE IDENTIFICATION CHART
This chart is provided to help identify the fasteners used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
3/16" 1/4" 5/16" 3/8" 1/2"
INCHES
0 1/2 1 1/2 2 1/2 3 1/2 4 1/2 5 1/2 6
in.
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
mm.
MILLIMETERS
length
6 8 10 12
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
length
After unpacking the unit, open the hardware bag and make sure that you have all the following
fasteners. Some fasteners may be already attached to the parts.
Part Number and Description Qty
72 Bolt, Round Head (M6 x 1 x 10mm) 2
78 Bolt, Button Head (M8 x 1.25 x 75mm) 1
79 Washer (M8) 1
76 Washer (M6) 8
80 Nylock Nut (M8 x 1.25) 1
81 Bolt, Socket Head (M6 x 1 x 16mm) 8
84 Bolt, Socket Head (M8 x 1.25 x 150mm) 4
