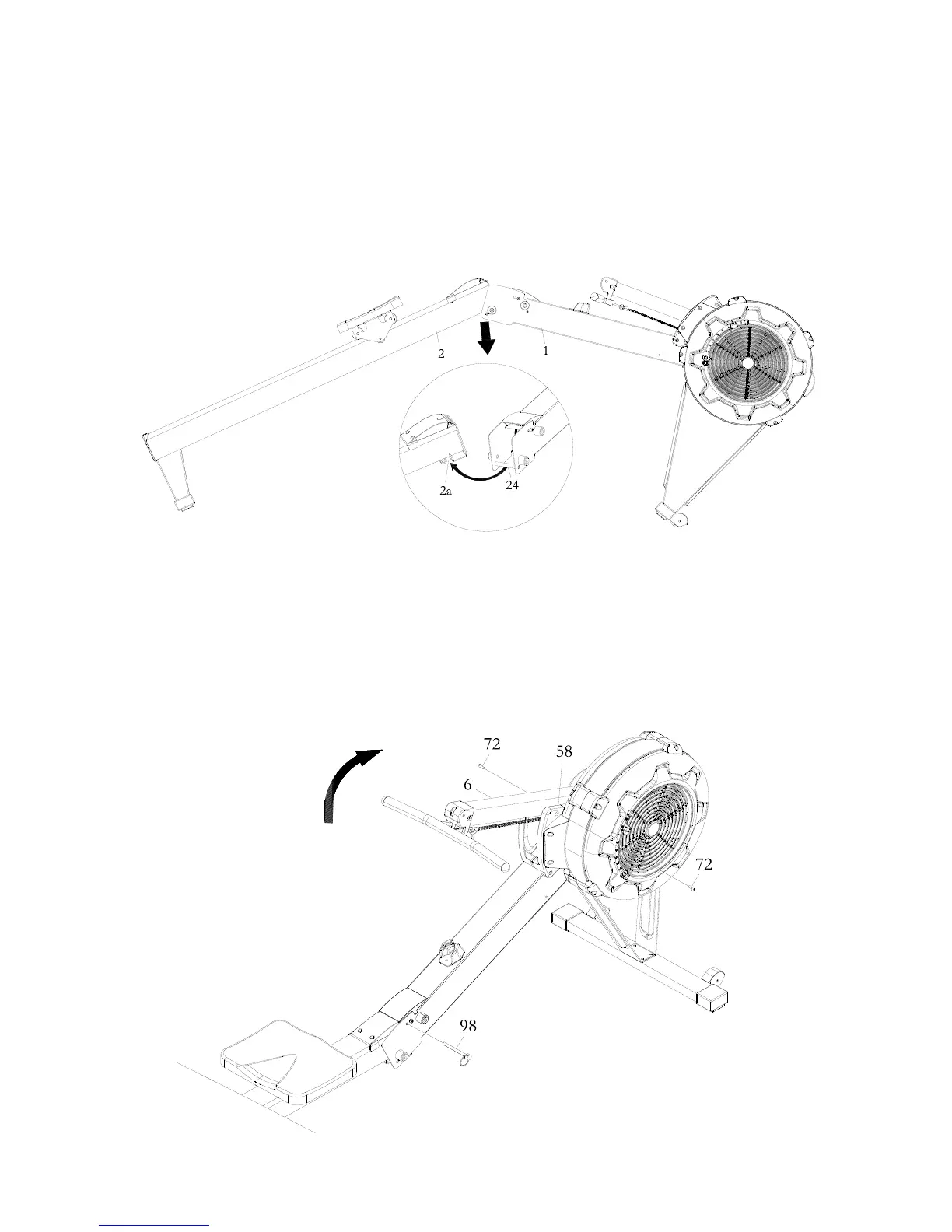

ASSEMBLY INSTRUCTIONS

STEP 3

Lift up the MAIN FRMAE(1) and RAIL FRAME(2), then insert RAIL FRAME(2) into the MAIN

FRMAE(1). Fit the SHAFT(24) on the MAIN FRAME(1) into the gap of the RAIL FRAME(2).

NOTE: Fully tighten bolts at end of this step.

STEP 4

Insert the PULL PIN(98) into the MAIN FRAME(1) and RAIL FRAME(2).

Attach CONSOLE MONITOR POST(6) to the SIDE COVERS (57)(58): M6X10 PHILLIPS HEAD

SCREW(72).

NOTE: Fully tighten bolts at end of this step.
