Orbit OBE8731T User Manual

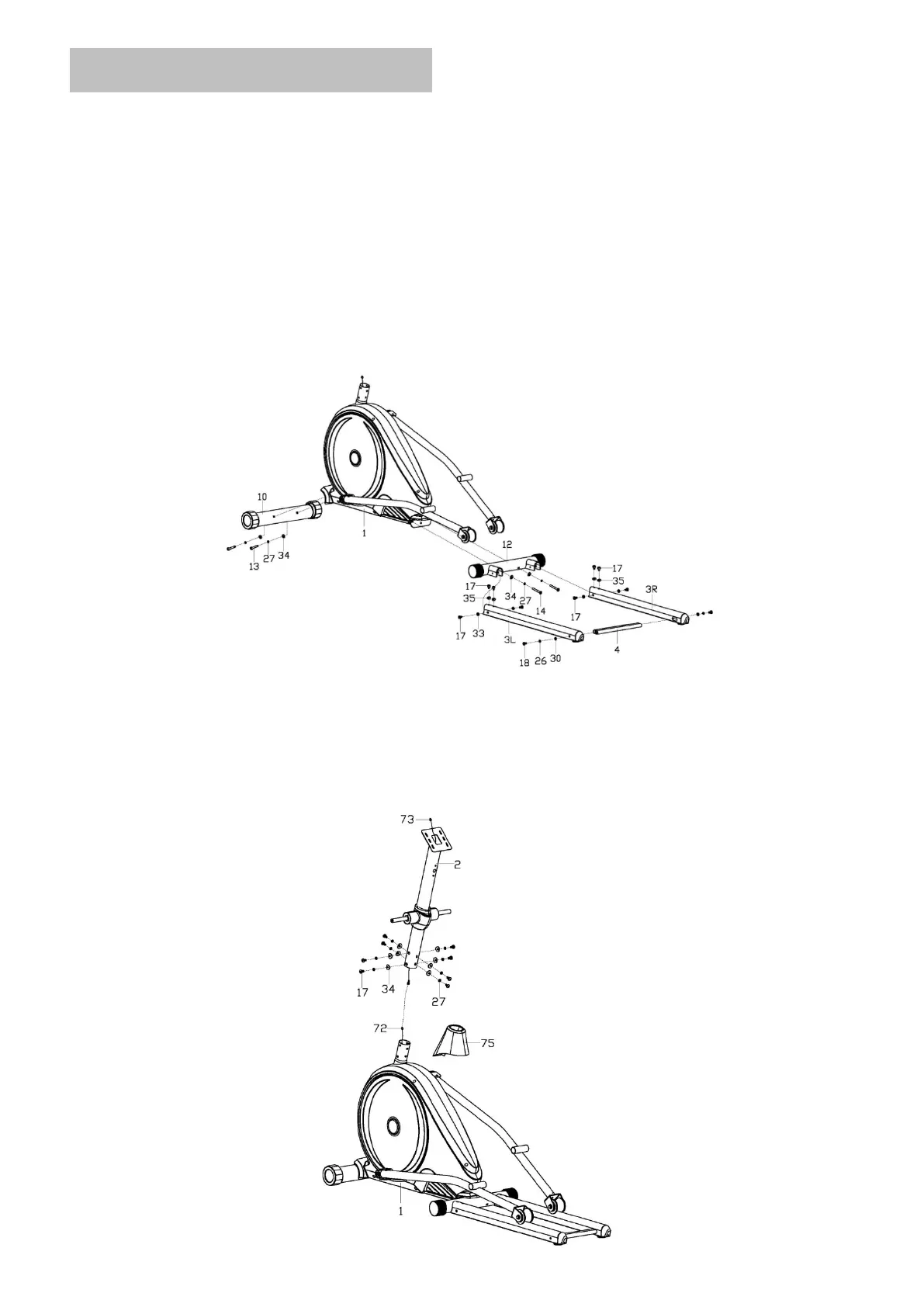

ASSEMBLY INSTRUCTIONS
Step one:
A: Lock the front bottom tube (10) into the main frame (1) with Inner hex screw (13), spring
washer (27) and arch washer (34).
B: Lock the rear bottom tube (12) into the main frame (1) with Inner hex screw (14), spring washer
(27) and arch washer (34).
C: Insert the rear supporting tube (4) into the guide rail (3L/R), and lock it with hex bolt (18),
spring washer (26), flat washer (30).
D： Lock the guide rail (3L/R) into the rear bottom tube (12) with hex bolt (17), spring washer (35),
and flat washer (33).
Step two:
A: Connect the sensor wire （72）and extension wire （73）.
B. Insert the handlebar post （2）into the main frame （1）and lock it tightly with Hex bolt （17），
spring washer（27），and arch washer （34）.
