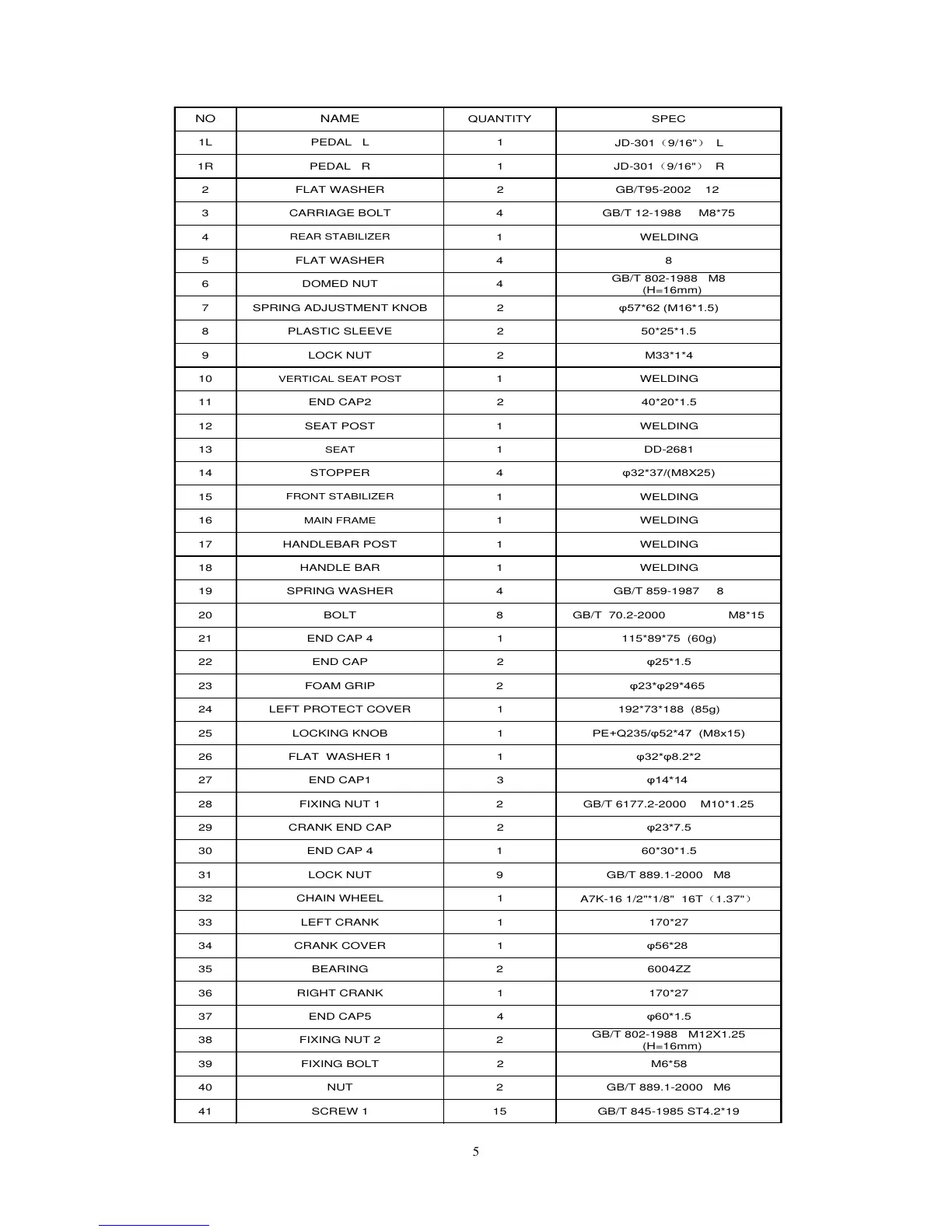

NO NAME
QUANTITY SPEC
1L PEDAL L 1
JD-3019/16" L
1R PEDAL R 1
JD-3019/16" R
2 FLAT WASHER 2 GB/T95-2002 12
3 CARRIAGE BOLT 4 GB/T 12-1988 M8*75
4
REAR STABILIZER
1 WELDING
5 FLAT WASHER 4 8
6 DOMED NUT 4
GB/T 802-1988 M8
(H=16mm)
7 SPRING ADJUSTMENT KNOB 2 φ57*62 (M16*1.5)
8 PLASTIC SLEEVE 2 50*25*1.5
9 LOCK NUT 2 M33*1*4
10
VERTICAL SEAT POST
1 WELDING
11 END CAP2 2 40*20*1.5
12 SEAT POST 1 WELDING
13
SEAT
1 DD-2681
14 STOPPER 4 φ32*37/(M8X25)
15
FRONT STABILIZER
1 WELDING
16
MAIN FRAME
1 WELDING
17 HANDLEBAR POST 1 WELDING
18 HANDLE BAR 1 WELDING
19 SPRING WASHER 4 GB/T 859-1987 8
20 BOLT 8 GB/T 70.2-2000 M8*15
21 END CAP 4 1 115*89*75 (60g)
22 END CAP 2 φ25*1.5
23 FOAM GRIP 2 φ23*φ29*465
24 LEFT PROTECT COVER 1 192*73*188 (85g)
25 LOCKING KNOB 1 PE+Q235/φ52*47 (M8x15)
26 FLAT WASHER 1 1 φ32*φ8.2*2
27 END CAP1 3 φ14*14
28 FIXING NUT 1 2
GB/T 6177.2-2000 M10*1.25
29 CRANK END CAP 2 φ23*7.5
30 END CAP 4 1 60*30*1.5
31 LOCK NUT 9 GB/T 889.1-2000 M8
32 CHAIN WHEEL 1
A7K-16 1/2"*1/8" 16T1.37"
33 LEFT CRANK 1 170*27
34 CRANK COVER 1 φ56*28
35 BEARING 2 6004ZZ
36 RIGHT CRANK 1 170*27
37 END CAP5 4 φ60*1.5
38 FIXING NUT 2 2
GB/T 802-1988 M12X1.25
(H=16mm)
39 FIXING BOLT 2 M6*58
40 NUT 2 GB/T 889.1-2000 M6
41 SCREW 1 15 GB/T 845-1985 ST4.2*19
