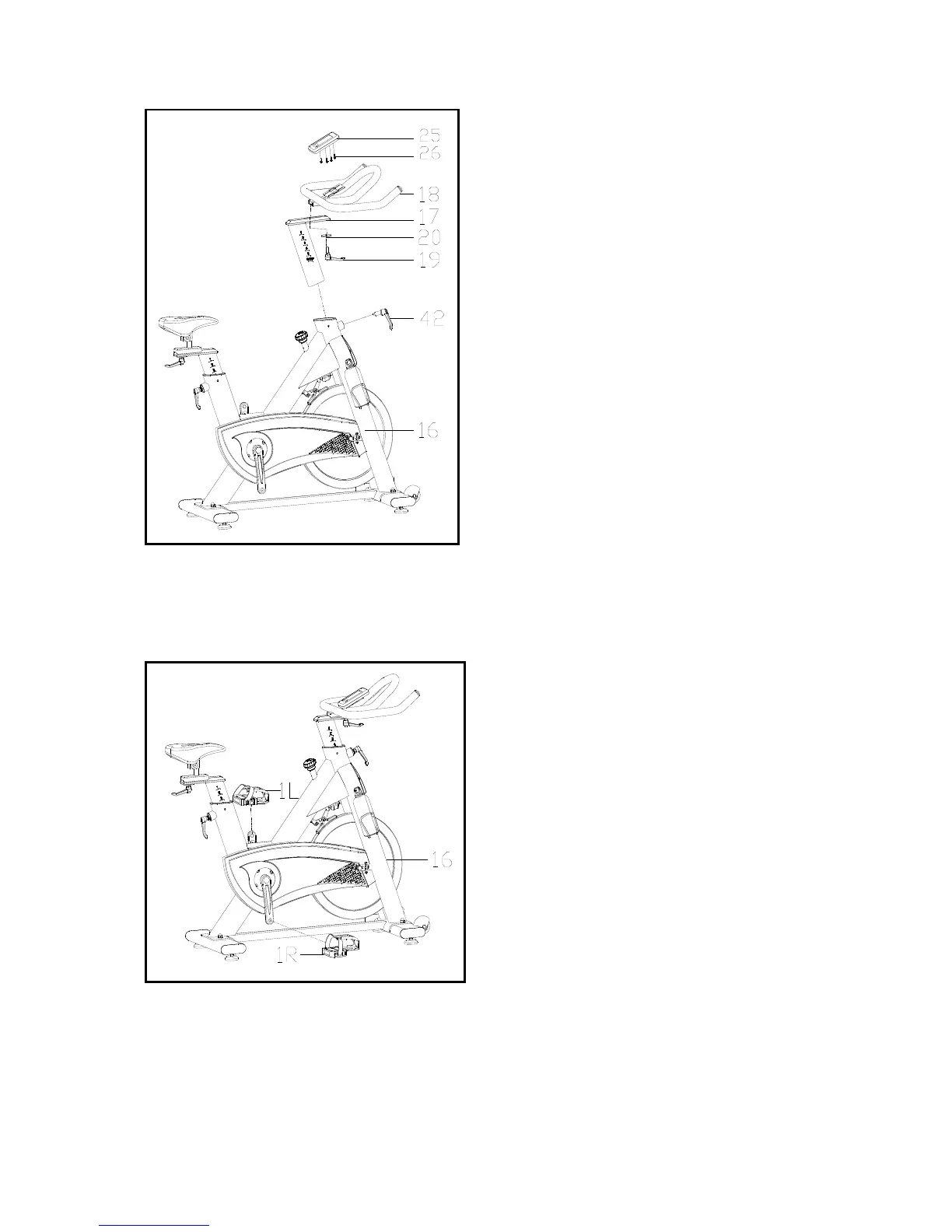

FIG.3
FIG.4
FIG.3:
Slide the Handlebar Post (pt.17) into the
handlebar post housing on the main
frame(pt.16). You will have to slacken the
knurled section of the L Shape Knob
(pt.42) and pull the knob back and then
select the desired height. Release the
knob and retighten the knurled portion.
Then fix the Handlebar (pt.18) with a flat
washer 1 (20) and L Shape knob (19)
ATTENTION: YOU SHOULD FIX THE
HANDLEBAR TIGHTLY
Fix the Computer (pt.25) onto the
Computer Holder with bolt
(pt.26), connect the plug
FIG.4:
The Pedals (pt.1 L & pt.1 R) are
marked "L" and "R" - Left and Right.
Connect them to their appropriate
crank arms. The right crank arm is on
the right- hand side of the cycle as you
sit on it.
Note that the Right pedal should be
threaded on clockwise and the Left
pedal anticlockwise.
