Assembly

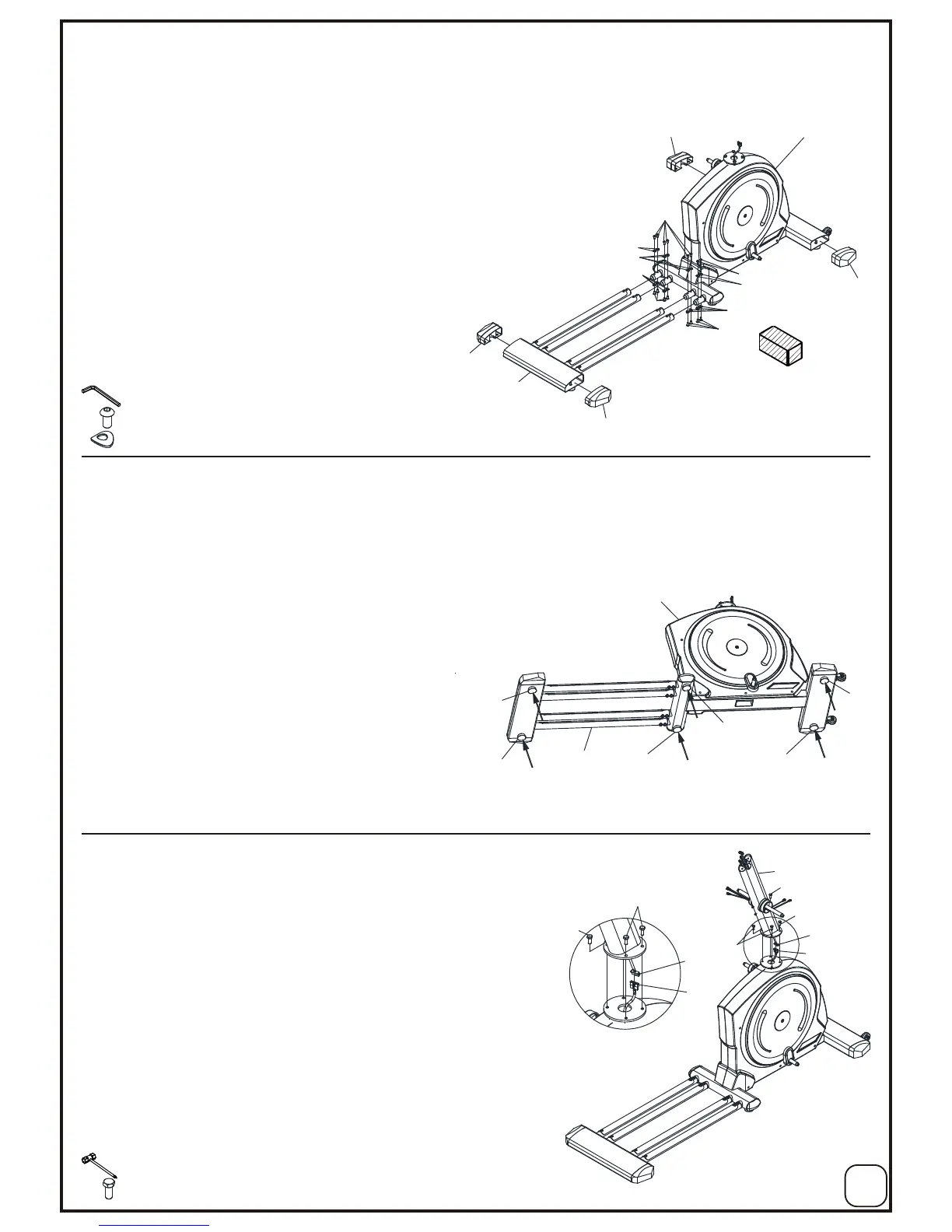

1. Guide Rail Installation
2. Adjusting the Adjustable Leveler
Turn the Adjustable Levelers (C05) on the MainBody (A01) and Guide Rail (A12) as needed to level the
elliptical trainer.
The elliptical trainer has to be leveled to prevent from wobbling or shaking during the exercise.
3. Front Post Installation
Connect the Extension Sensor Wire II (D05) from the MainBody (A01)
to the Extension Sensor Wire I (D04) from the Front Post (A02) and
carefully tuck the wires into the MainBody (A01) before attaching
the Front Post (A02) onto the MainBody (A01).
Attach the Front Post (A02) onto the MainBody (A01) and fully
tighten with 4 Bolts (B14).
[Tighten bolts with the
Hex Tool With Phillips Screwdriver provided]
For easier installation of the Guide Rail (A12), place a block of wood under the
MainBody (A01).
Attach the Guide Rail (A12) onto the tubes of the MainBody (A01) with
16 Bolts (B13) and 16 Washers (B30) that were removed.
Assemble the Left and Right D Shape End Cap(C28/C29) into the tube of the
MainBody(A01) and Guide Rail (A12).
[Remove/Tighten bolts with the M5 Allen Wrench provided]
M5 Allen Wrench
Hex Tool With Phillips Screwdriver (13mm/14mm)
C29
C28
A12
B30
B30
B30
B30
B13
B13
C29
C28
A01
B13
B30
B13
C05
C05
C05
C05
C05
C05
A12
A01
Adjusting the Adjustable Leveler
A02
B14
B14
B14
D05
D04
B14
B14
D05
D04
block of wood
1.)
2.)
3.)
1.)
1.)
2.)
(B13)Bolt M8x16mm---16PCs
(B30)Washer M8x20x1.5t---16PCs
(B14)Bolt M8x20mm---4PCs
To Next Page
