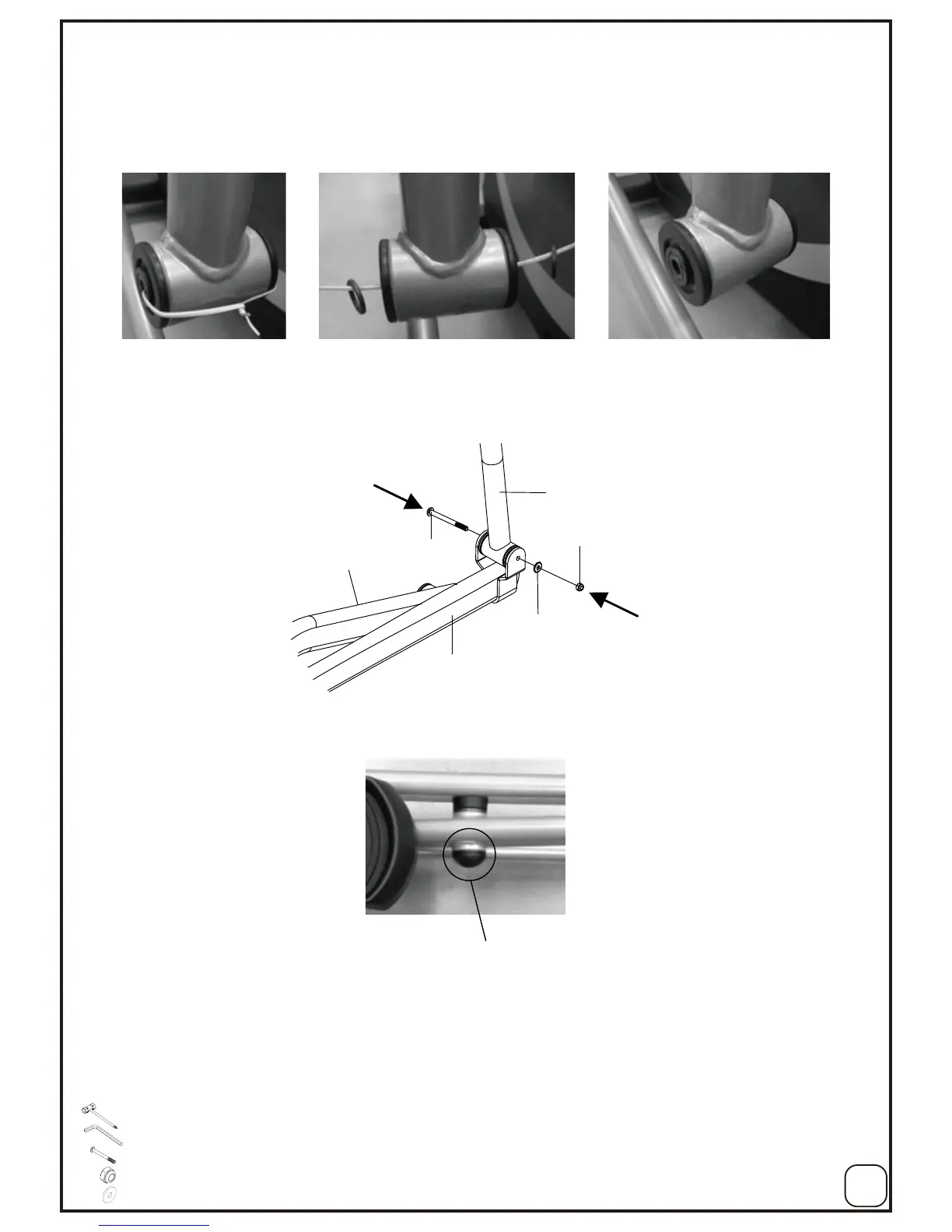

Assembly
6
Hex Tool With Phillips Screwdriver (13mm/14mm)
A06
A04
A08
B24
B33
B29
M8x45 Nut Cap (C11)
Untie the wire and remove 2 Washers (C22) from the bottom end of the Right Dual Action Arm Set (A04).
Place 2 Washers (C22) back onto the joint of the Right Dual Action Arm Set (A04).
Pull the Right Foot Bar Set (A06) up onto the Right Dual Action Arm Set (A04) and align bolt holes.
Then attach the Right Foot Bar Set (A06) onto the Right Dual Action Arm Set (A04) with 1 Bolt (B24),
1 Nut (B29), and 1 Washer (B33) that were removed.
[Tighten bolt and nylon nut with the Hex Tool with Phillips Screwdriver and M5 Allen wrench provided]
Repeat above steps to install the Left Dual Action Arm Set (A03) onto the horizontal axle of the Front
Post (A02) and Left Wheel Bar Set (A07) onto the Crank (A11) axle.
Fit one Nut Cap (C11) onto M8x16mm Hexagon Head Bolts (B32) of the Right Rotate Bar (A08).
7.)
8.)
M5 Allen Wrench
9.)
Remark: Please use the assembly drawings of steps No. 1-9 at Page No. 7.
(B33)Washer 5/16”x20x2.0t---2PCs
(B29)Nut M8xP1.25x7.7t---2PCs
(B24)Bolt M8x92mm---2PCs
