Orbit Reader 20 – User guide Version 1.8
Orbit Research Confidential and Proprietary Information 9

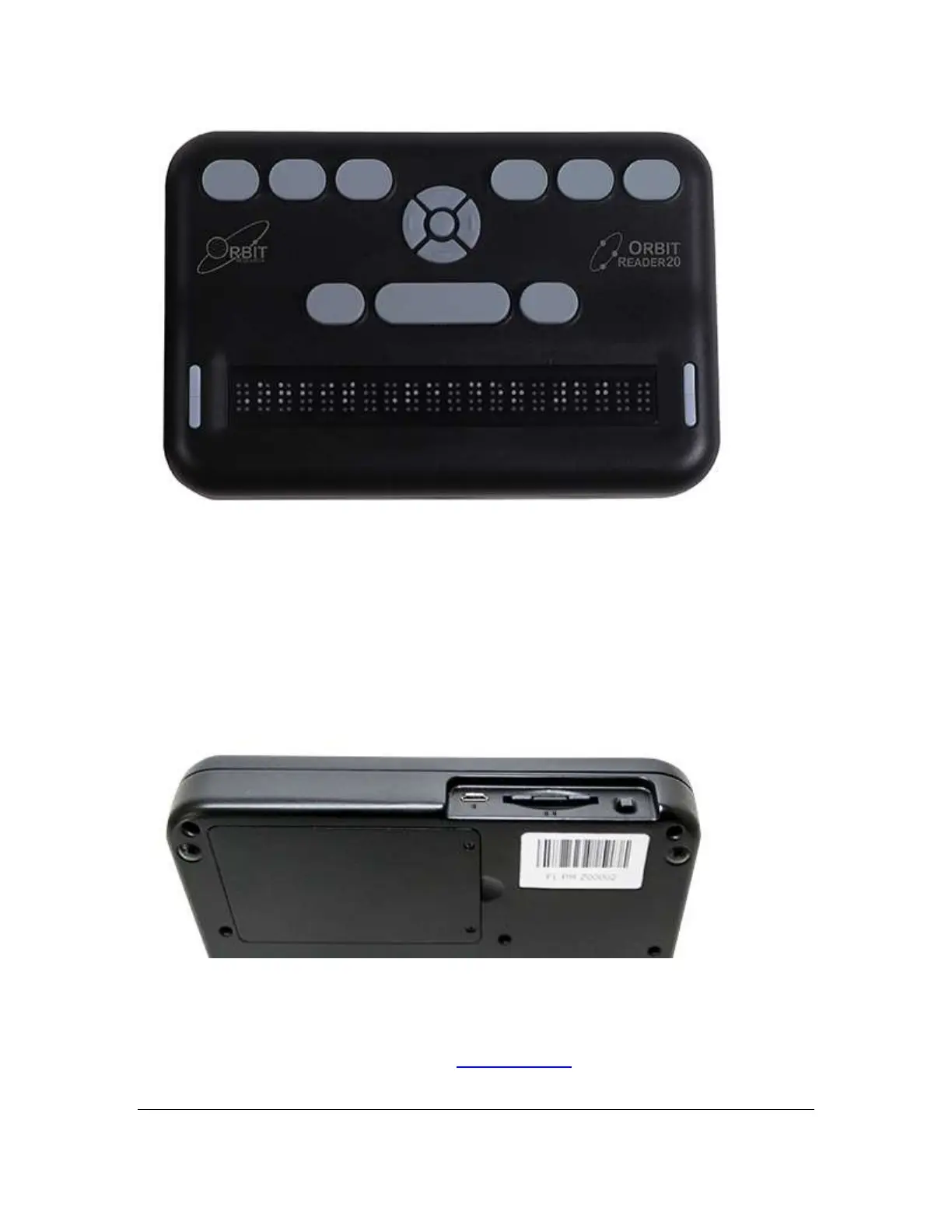

At the back of the device, from left to right, is the Power button (left), an SD card
slot (middle), and a Micro-B USB port (right). (Image is reversed in the picture).
They are all recessed in an area in the left half of the back edge. The Power
button sticks out enough to make it identifiable. The SD card slot has two small
bumps directly below it and the USB port has one bump below it.
The SD card slot is a standard type with spring feedback. The SD card is
inserted with the card connector fingers facing down. To remove the card, press
in and remove your finger to allow the card to pop out.
The battery compartment is located at the bottom of the device.
9.1 Key Placement and Use
When properly oriented, the braille cells are closest to you. The Panning keys are
at each end of the braille display. See Panning Keys section for more
information.
