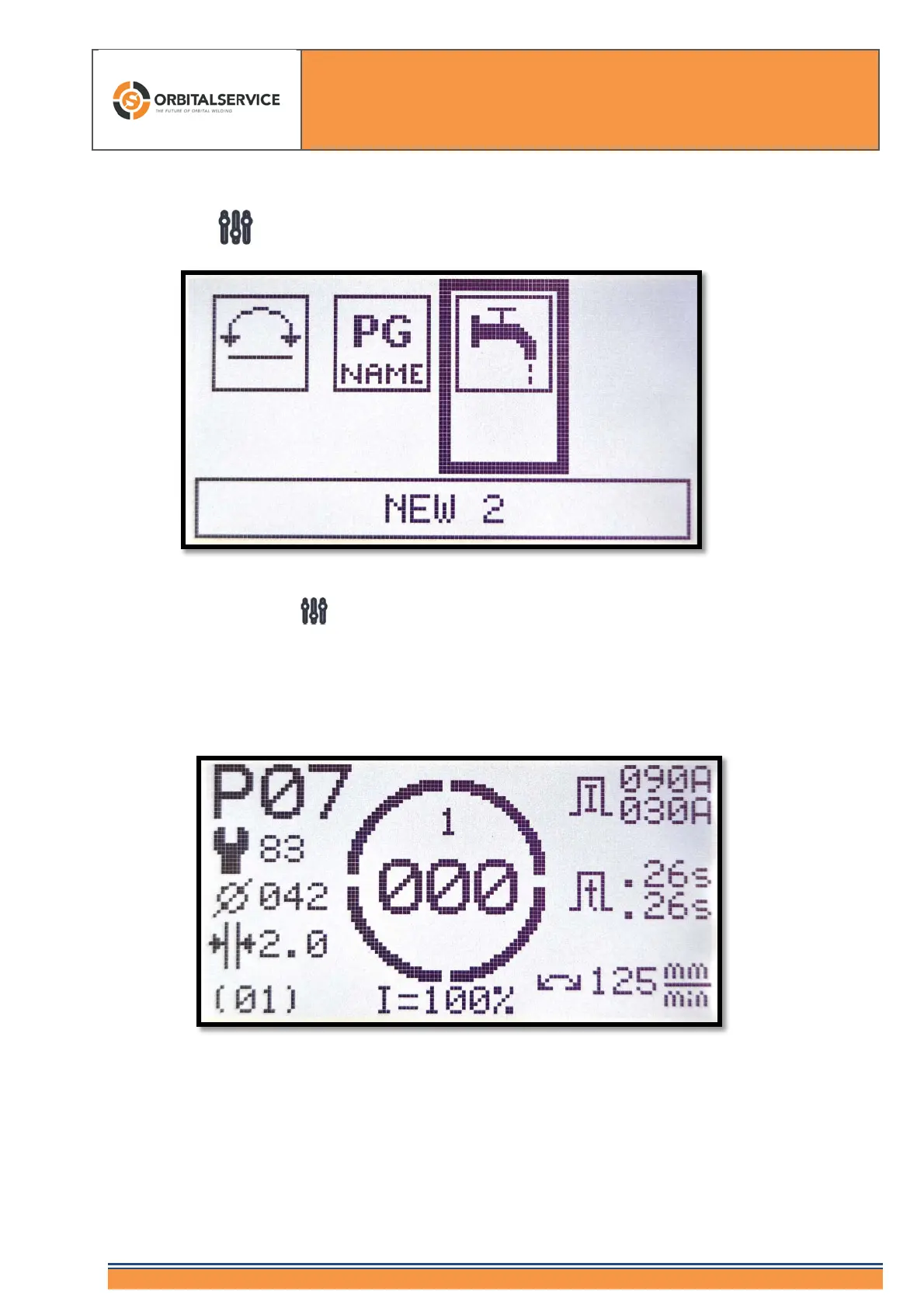

Press button
If you press the button and the water symbol does not change to a dark background, then
we are in presence of a gas cooled weld head. In this case, we have weld head No. 83 (an
open weld head OWH 76-Type LB). If the symbol has a dark background, then we have the
possibility to use a cooler and a water cooled hose. In this case, water flow and temperature
are monitored and shown accordingly.
Welding program No. P 07 is calculated and ready.
You can see important information about the weld head, the program slot and the pipe on the
left side as well as the welding parameters of sector 01 on the right side.
Below we see the current changes, currently at 100% (default setting).
