First of all, we must say that the value highlighted in black is the one that can be
changed or viewed.

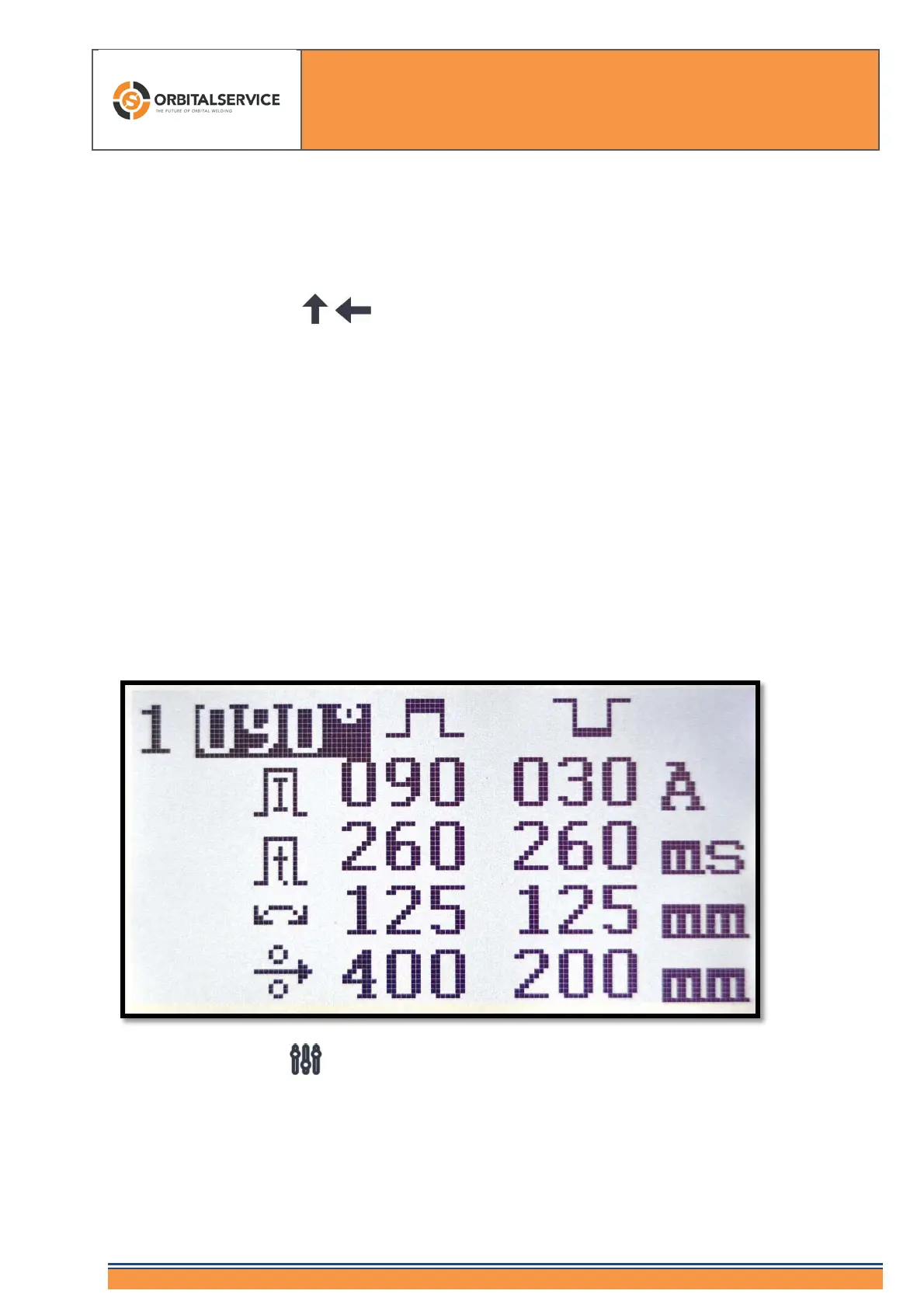

Number of Sectors
With the arrow buttons you can scroll through the sectors. You have the possibility to
program up to 6 sectors.
This number of sectors is already defined during the automatic programming (Synergic
Function - Automatic Programming). See above description of this function.
When "scrolling through" you can see the number of sectors associated with the welding
parameters. Please observe that the high current values decrease. Everything else is the
same between sectors.
If you choose 4 sectors during the automatic program creation, Sectors 5 and 6 are also
there and calculated according to the parameters of Sector 4. The degrees are set at 0°. You
have the possibility, (If you set, for example, 420°for sector 5) to define that you want to weld
up to this value. But please make sure to change the high current value, otherwise you will
have the values of sector 4 in it and you weld up to 420° with these. In such a case, you
could also simply extend sector 4 to 420°.
The Angle Degrees
After pressing button you reach the field Angle Degrees.
