Maintenance Instructions For Swivel and RF Handle Models
Tune Up Procedure for Swivel Models

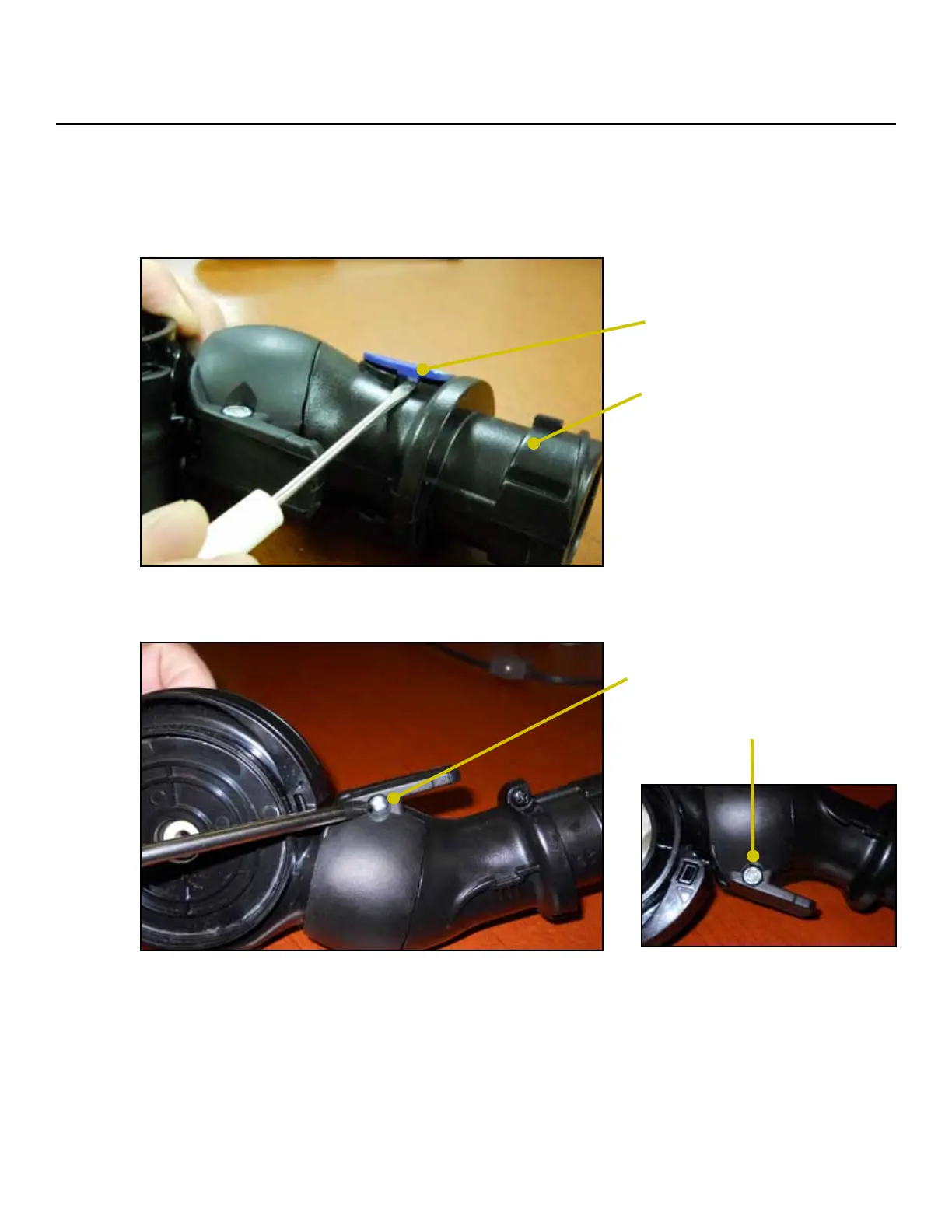

1. Remove the rear fascia using a small atblade screwdriver to unsnap from the fan housing.
2. Using a phillips head screwdriver, remove the clamp screw, being careful to retain the anvibraon
nut it is threaded into on the opposite side of the clamp.
Rear Fascia
Fan Housing
Assembly (41)
Clamp Screw
Anvibraon Nut
To Next Page
