Oreck XLPRO6 - Page 4

ALL
OTHER SERVICING SHOULD BE DONE BY AN
ORECK AUTHORIZED SERVICE CENTER.
Troubleshooting Guide
CAUTION: Always disconnect power cord before servicing
vacuum.
WARNING: Repairs should only be performed by an
authorized service center.
Whenever calling, please be sure to have your model and serial
number from data plate.
CALL CUSTOMER SERVICE HOT LINE
1-800-989-3535
Problem: Loss of V
acuum
Cause:
1. Damaged lid.
2. Full paper filter bag.
3. Clogged hose or wand.
Problem: Dust blowing from
vacuum when running.
Cause:
1. Full paper filter bag.
2. Improperly installed paper
filter bag.
3. Cloth filter bag dirty.
Solution:
1. Inspect and replace if needed.
2. Replace paper filter bag.
3. Remove obstruction.
Solution:
1. Replace filter bag.
2. Reinstall or replace paper filter
bag.
3. Clean cloth filter bag.

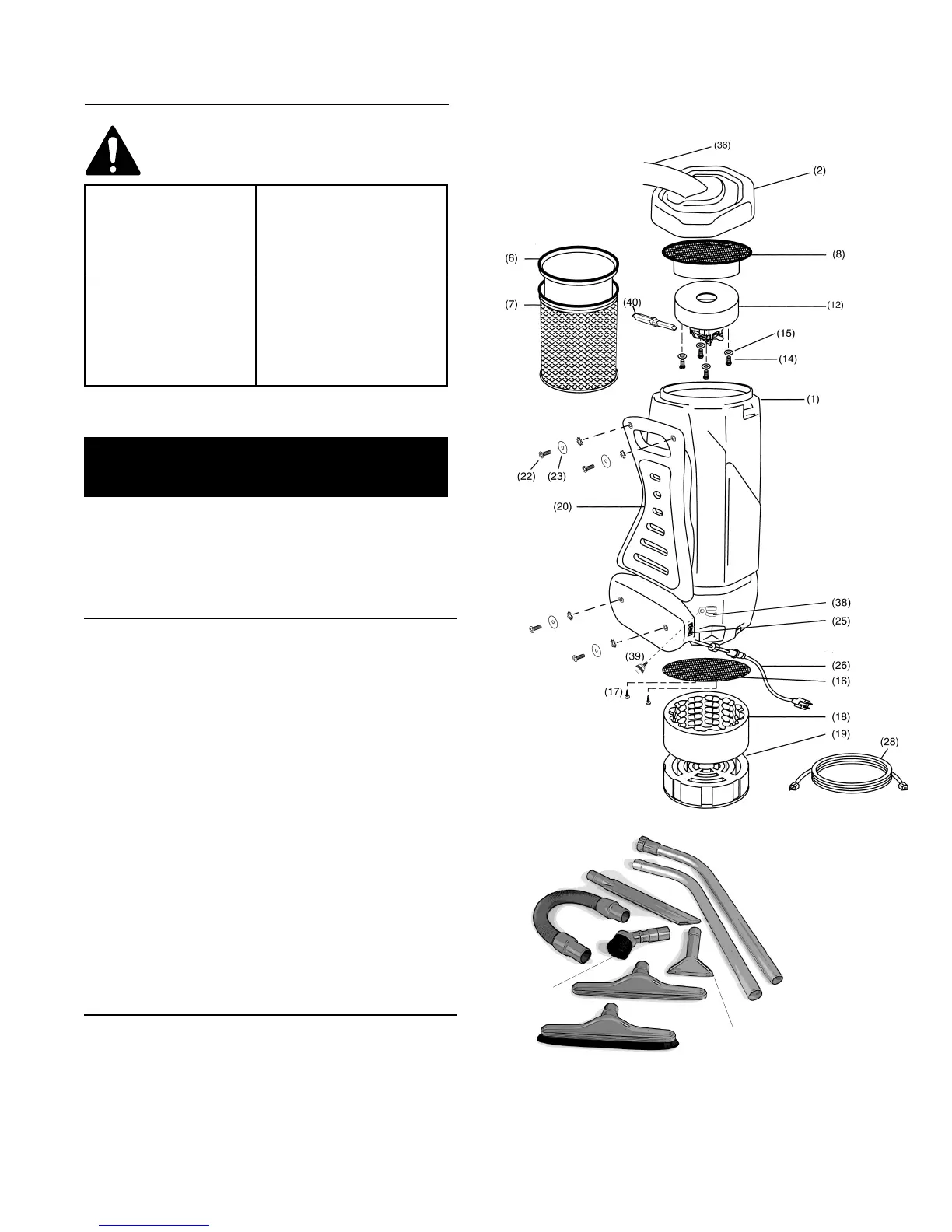

Parts Diagram
XLPRO6 Parts Listing
Item # Part # Description
1 10-0001-B 6 Qt Body
2 10-0002-6-B 6 Qt Lid
6 PK25PRO6DW 6 Qt Paper Bag, 25 Pk
7 10-0496 6 Qt Cloth Bag
8 10-0008-A Complete Dome Filter
12 10-0012 Motor
14 10-0014 Screws, Motor
15 10-0015 Washers, Motor
16 10-0016 Motor Deflector Plate
17 10-0017 Screw, Motor Deflector
18 10-0018 Sound Filter Band
19 10-0019 Dual Cell Noise Filter
20 10-0020 Cushioned Back Pad
21 10-0021 Waist Belt (Not Shown)
22 10-0022 Screw, Waist Belt
23 10-0023 Washer, Waist Belt
25 10-0025 On/Off Switch
26 10-0026-A Power Cord, 17”
28
COMMCORD
50’
Electrical Cord
38
10-0069
Cushion Support Clamp
39
10-0070 Screw (Cord Lock)
40 10-1333
Set, Motor Brushes
43
10-0165
Copper Ring (Not Shown)
44
10-0223-B
Collar
, Nut & Copper Ring Set
(Not Shown)
Accessories
Item # Part # Description
29 10-0029
2 Pc
Aluminum W
and, Button
10-0030-A
2 Pc
Aluminum W
and, Friction
31
10-0031
5” Upholstery
Tool
32
10-0032
14” Scalloped Floor
T
ool
33
10-0033
17” Crevice
T
ool
36
10-0036
Stretch Hose w/Cuf
fs
37
10-0037
3” Dust Brush
41
10-0183-A
Floor Replace Brush
42
10-0183
Bristle, Floor
T
ool
(Sold
Separately)
©2007 Oreck Holdings, LLC. All Rights Reserved. All word mark, logos, product configurations, and registered trademarks are
owned and used under the authority of Oreck Holdings, LLC.
424692 REV G 02/07
ECN R-8615
(29)
(33)
(36)
(32)
(31)
(37)
(41)
(42)
