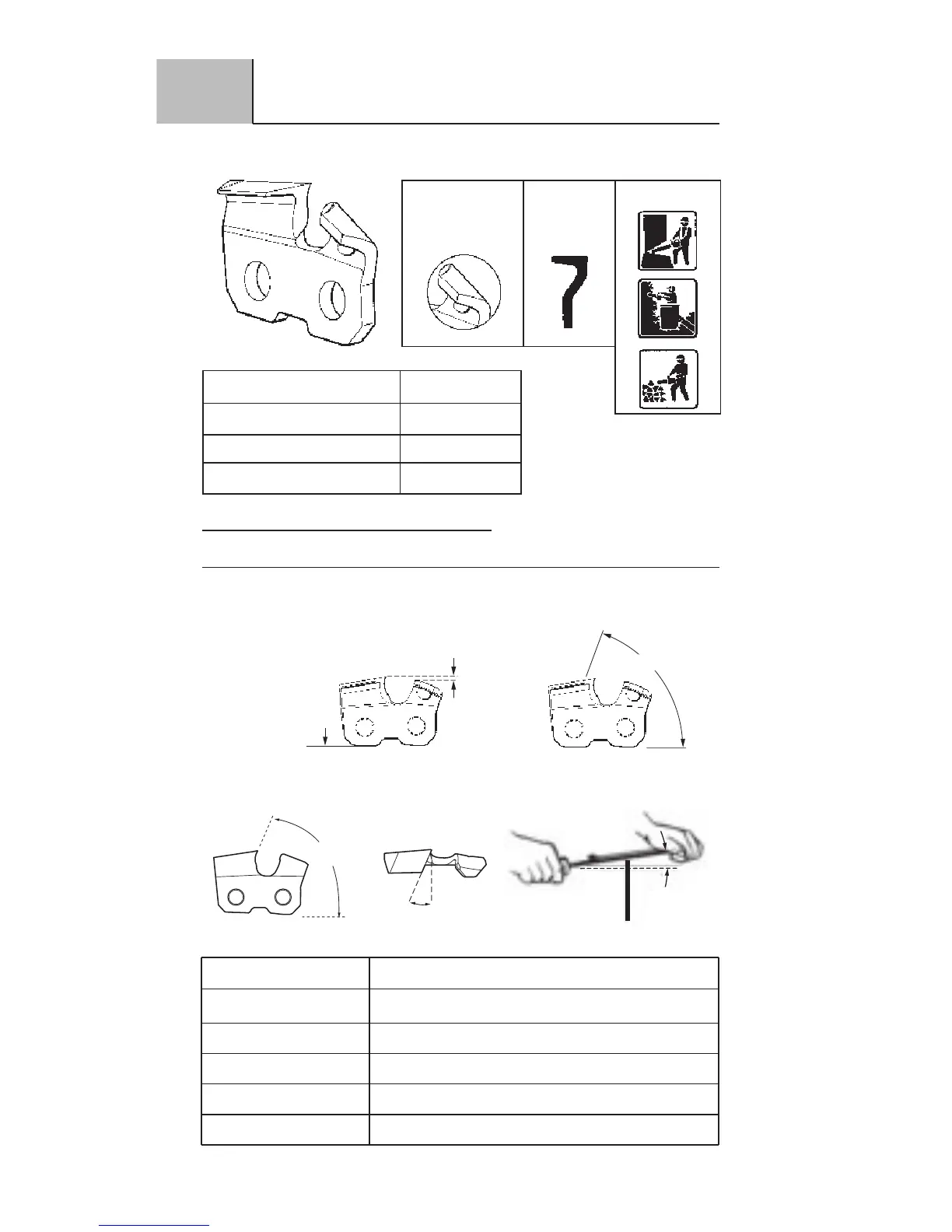

Oregon Chain Saw - Page 46

42
Oregon
®
Vanguard 3/8"
Kickback End Use
Reducing View
Features
Low-kickback Performance
Low-vibration Chain
OREGON
®
VANGUARD
Chain Type Gauge
72V .050"
73V .058"
75V .063"
FILING
햲
DEPTH-GAUGE
햳
TOP-PLATE
SETTING CUTTING ANGLE
햴
SIDE-PLATE
햵
TOP-PLATE
햶
FILE-GUIDE
ANGLE FILING ANGLE ANGLE
10°
25°
60°
60°
.025"
HEEL DOWN
TOOLS FOR FILING
Part No. Description
70502 7/32" Round File (12-Pack)
31686 7/32" Assembled File Guide
31941 .025" Drop-Center Depth-gauge Tool
OR534-316 3/16" Grinding Wheel, 5-3/4" Dia.
OR4125-316 3/16" Grinding Wheel, 4-1/8" Dia.
Chains on this page are intended for use with saws 3.0 to 6.0 cu. in.
(50 cc - 100 cc) displacement and bars 12 in. to 32 in. (30 -81 cm) in length.
