CHAIN TERMS (CONTINUED)

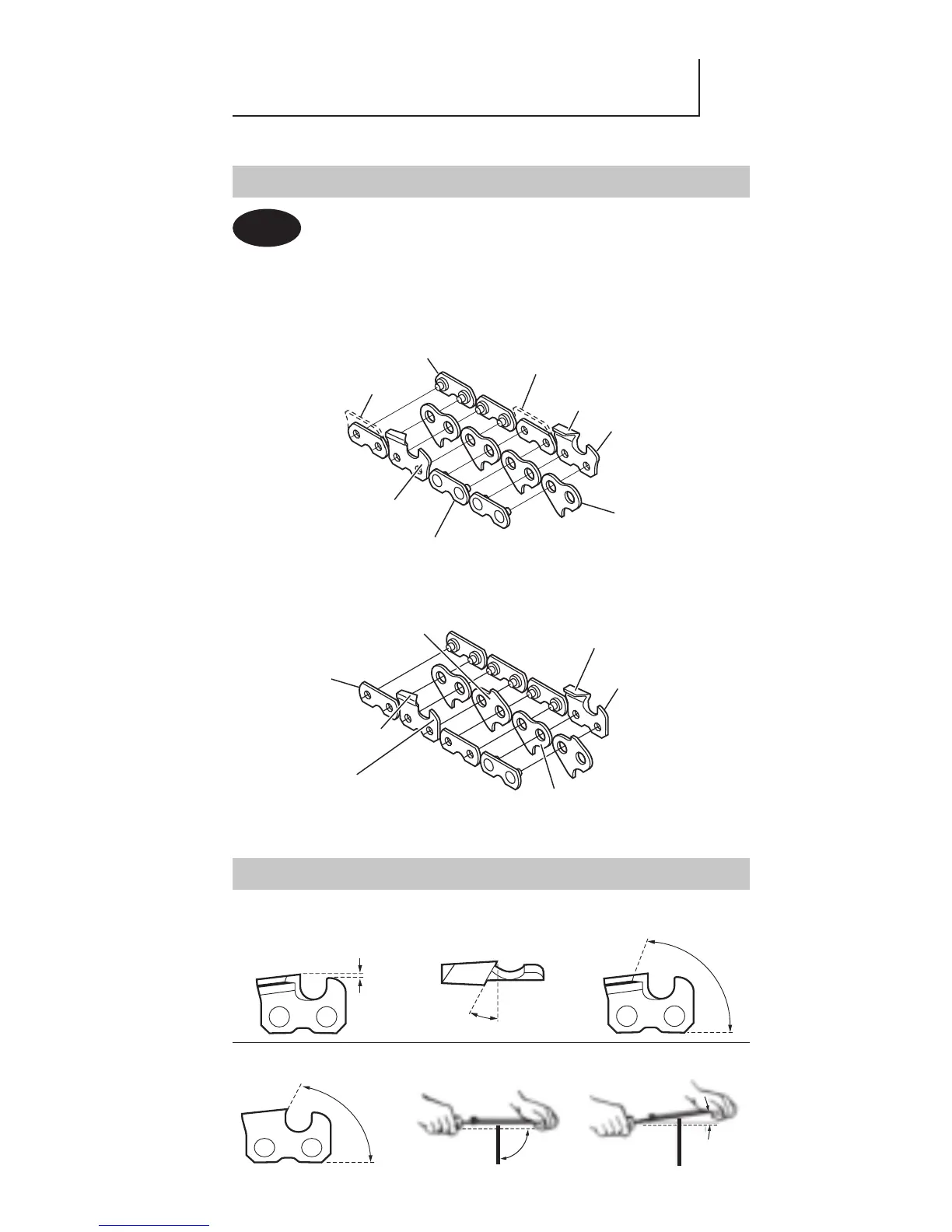

THE PARTS OF A SAW CHAIN
Parts below named in Bold Face indicate kick-
back-reducing links and features: bumper tie
straps, bumper drive links, and ramped depth
gauges.
CUTTER MAINTENANCE TERMS
DEPTH-GAUGE TOP-PLATE TOP-PLATE
SETTING FILING ANGLE CUTTING ANGLE
SIDE-PLATE ANGLE FILE-GUIDE ANGLES
10°
90°
Right-hand cutter
w/ standard
depth gauge
Tie strap
Bumper drive link
Left-hand cutter
w/ standard
depth gauge
Drive link
Preset tie strap
Right-hand cutter
w/ ramped depth
gauge
Preset tie stra
p
Drive link
Bumper tie strap
Left-hand cutter w
/
ramped depth
gauge
Bumper tie strap
