49

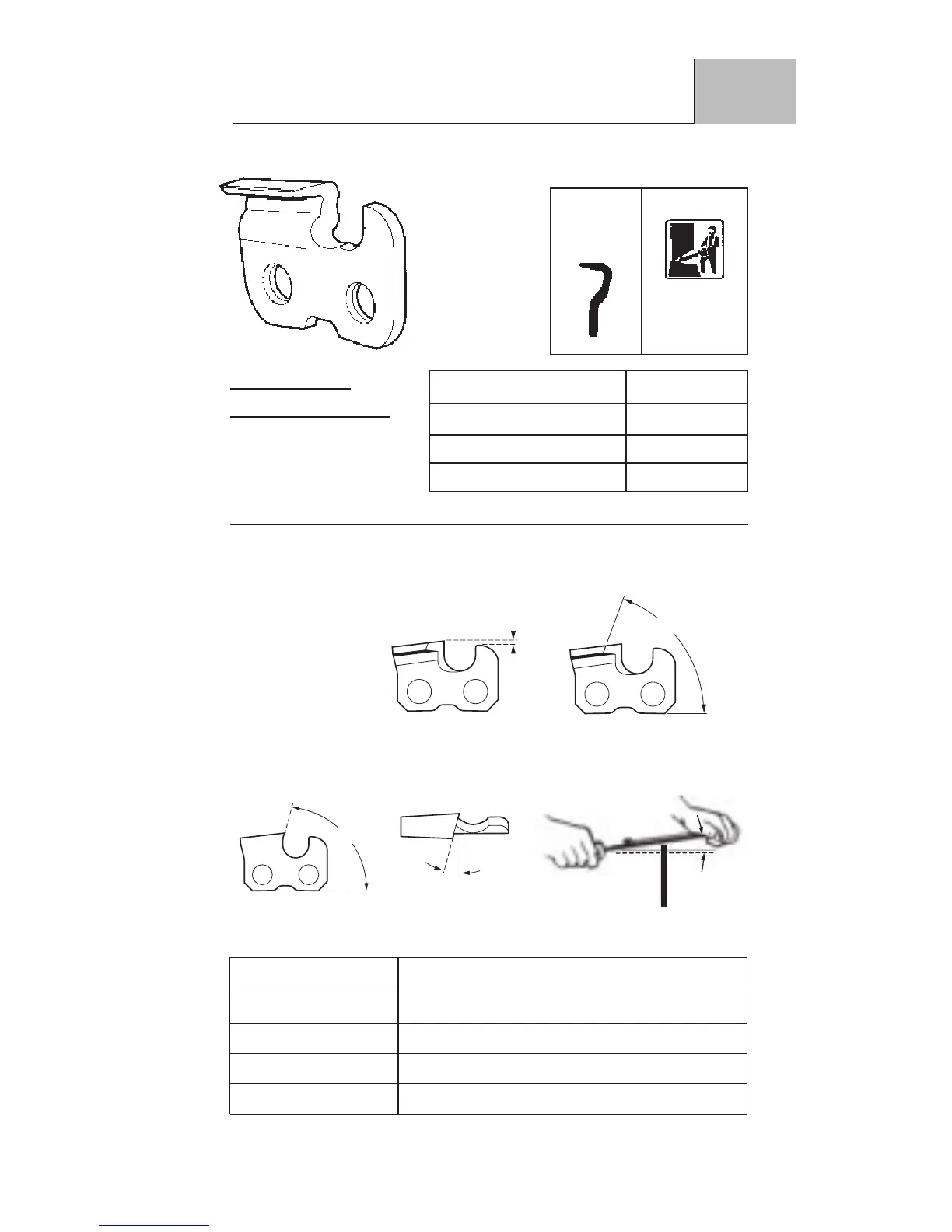

Ripping Chain 3/8"
Kickback End Use
Reducing View
Features
Not a Low-
kickback Chain
SEMI CHISEL
Chain Type Gauge
72RD .050"
73RD .058"
75RD .063"
FILING
햲
DEPTH-GAUGE
햳
TOP-PLATE
SETTING CUTTING ANGLE
햴
SIDE-PLATE
햵
TOP-PLATE
햶
FILE-GUIDE
ANGLE FILING ANGLE ANGLE
10°
10°-15°
75°
50°
.025 "
TOOLS FOR FILING
Part No. Description
70502 7/32" Round File (12-Pack)
22290 .025" Depth-gauge Tool
OR534-316 3/16" Grinding Wheel, 5-3/4" Dia.
OR4125-316 3/16" Grinding Wheel, 4-1/8" Dia.
Ripping chains feature a special grind for use in ripping cuts only. Do
not use these chains for any type of cutting other than ripping.
