Oregon Chain Saw - Square-Ground Filing Guide; Who Should Perform Square Ground Filing?; File Positioning

60

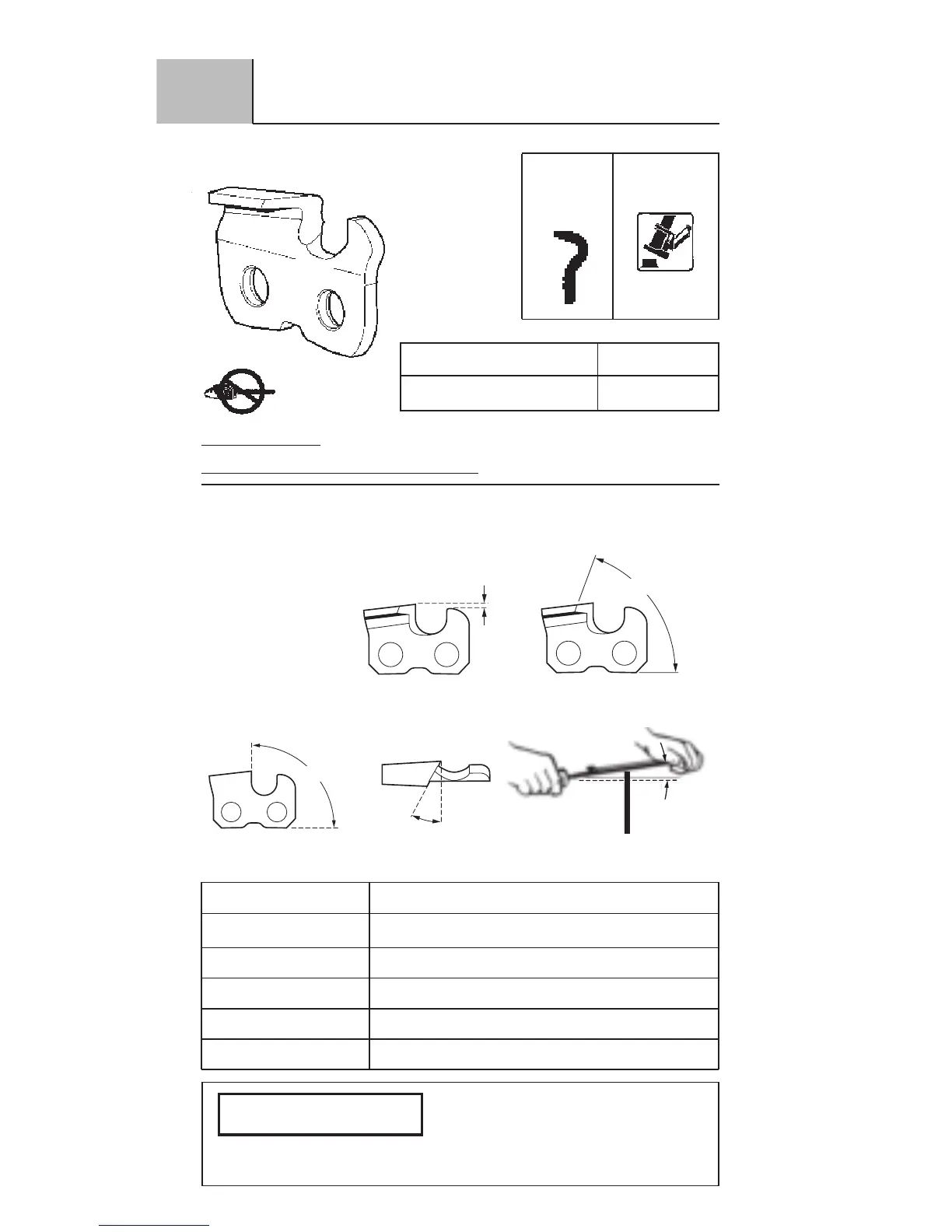

Harvester Chain .404"
For use on mechanized harvesting
equipment only.
Do not use on hand-held cutting applications as severe injury to
operator or bystanders may result.
WARNING
Kickback End Use
Reducing View
Features
Harvester,
no hand-held applications
CHIPPER
FILING
햲
DEPTH-GAUGE
햳
TOP-PLATE
SETTING CUTTING ANGLE
햴
SIDE-PLATE
햵
TOP-PLATE
햶
FILE-GUIDE
ANGLE FILING ANGLE ANGLE
10°
35°
90°
60°
.030"
TOOLS FOR FILING
Part No. Description
70502 7/32" Round File (12-Pack)
31686 7/32" Assembled File Guide
22291 .030" Depth-gauge Tool
OR534-316 3/16" Grinding Wheel, 5-3/4" Dia.
OR4125-316 3/16" Grinding Wheel, 4-1/8" Dia.
Chain Type Gauge
59AA .063"
