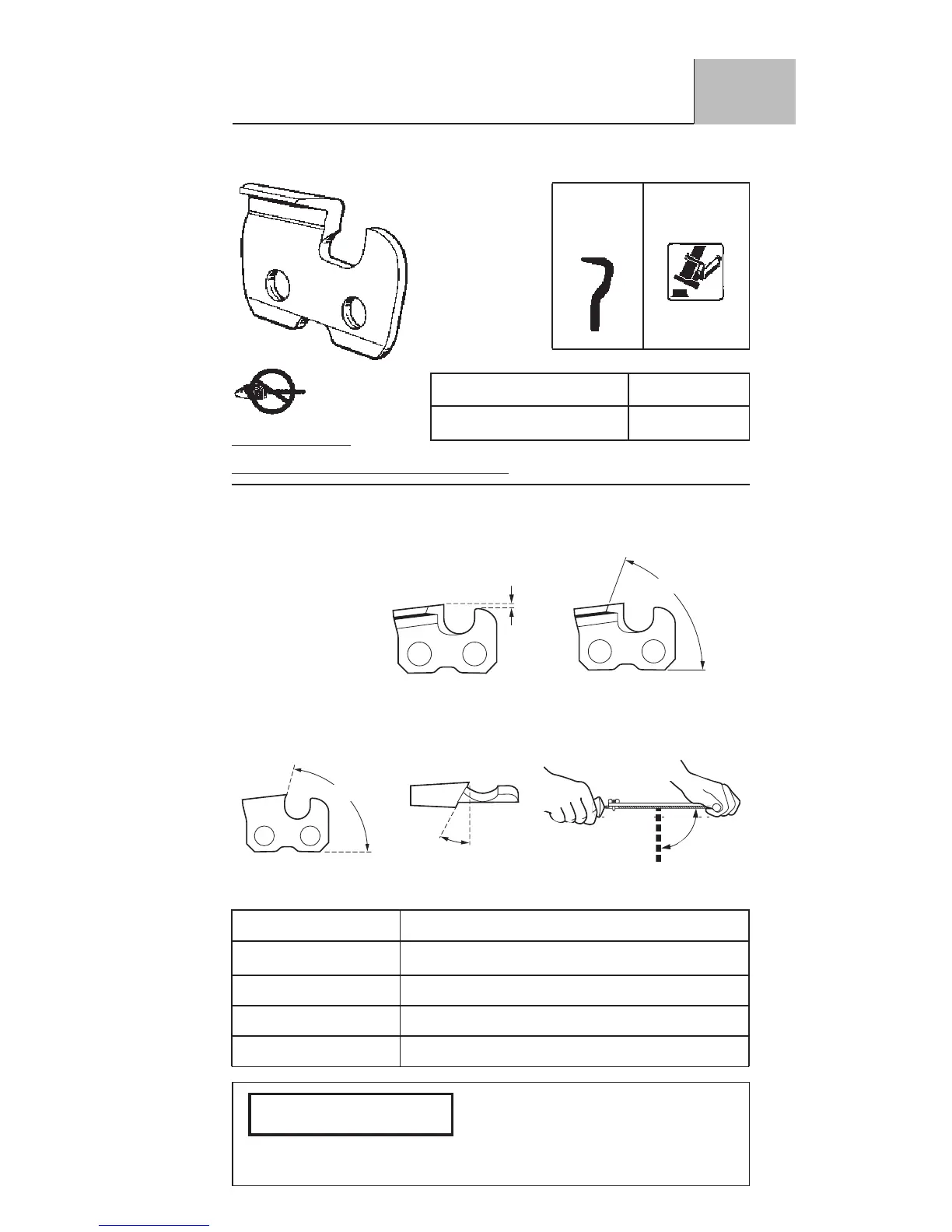

Harvester Chain 3/4"
For use on mechanized harvesting
equipment only.
Do not use on hand-held cutting applications as severe injury to
operator or bystanders may result.
WARNING
Kickback End Use
Reducing View
Features
Harvester,
no hand-held applications
SEMI CHISEL
FILING

DEPTH-GAUGE

TOP-PLATE
SETTING CUTTING ANGLE

SIDE-PLATE

TOP-PLATE

FILE-GUIDE
ANGLE FILING ANGLE ANGLE
90°
30°
80°
50°
.070"
TOOLS FOR FILING
Part No. Description
90410 5/16" Round File (6-Pack)
107617 5/16” Assembled 11H File Guide
107529 .070" Depth-gauge Tool
OR534-516 5/16" Grinding Wheel, 5-3/4" Dia.
Chain Type Gauge
11H .122"
