Operation controls
and functions
1
2
3
4

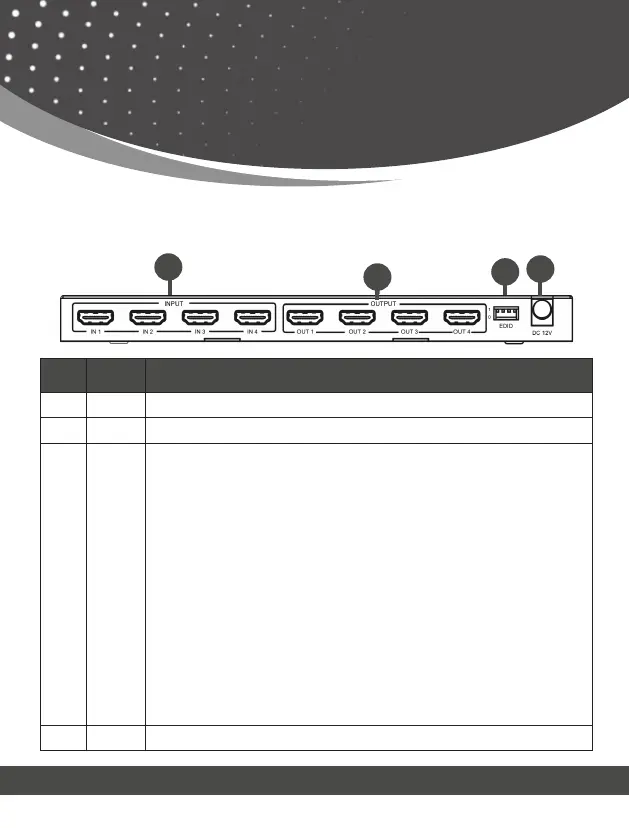

5.2 Rear Panel
No. Name Function/Description
1. INPUT Connect to HDMI source device such as DVD player or PC.
2. OUTPUT Connect to HDMI display device such as TV or Projector.
3. EDID EDID SWITCH control.
0000 1080P, Stereo Audio 2.0
0001 1080P, Dolby/DTS 5.1
0010 1080P, HD Audio 7.1
0011 4K2K30_444, Stereo Audio 2.0
0100 4K2K30_444, Dolby/DTS 5.1
0101 4K2K30_444, HD Audio 7.1
0110 4K2K60_444, Stereo Audio 2.0 SDR
0111 4K2K60_444, Dolby/DTS 5.1 SDR
1000 4K2K60_444, HD Audio 7.1 SDR
1001 4K2K60_444, Stereo Audio 2.0 HDR
1010 4K2K60_444, Dolby/DTS 5.1 HDR
1011 4K2K60_444, HD Audio 7.1 HDR
1100 COPY OUTPUT 1
1101 COPY OUTPUT 2
1110 COPY OUTPUT 3
1111 COPY OUTPUT 4
4. DC 12V DC 12V power supply interface.
