Origin 21 LWS42SDT User Manual

6
2

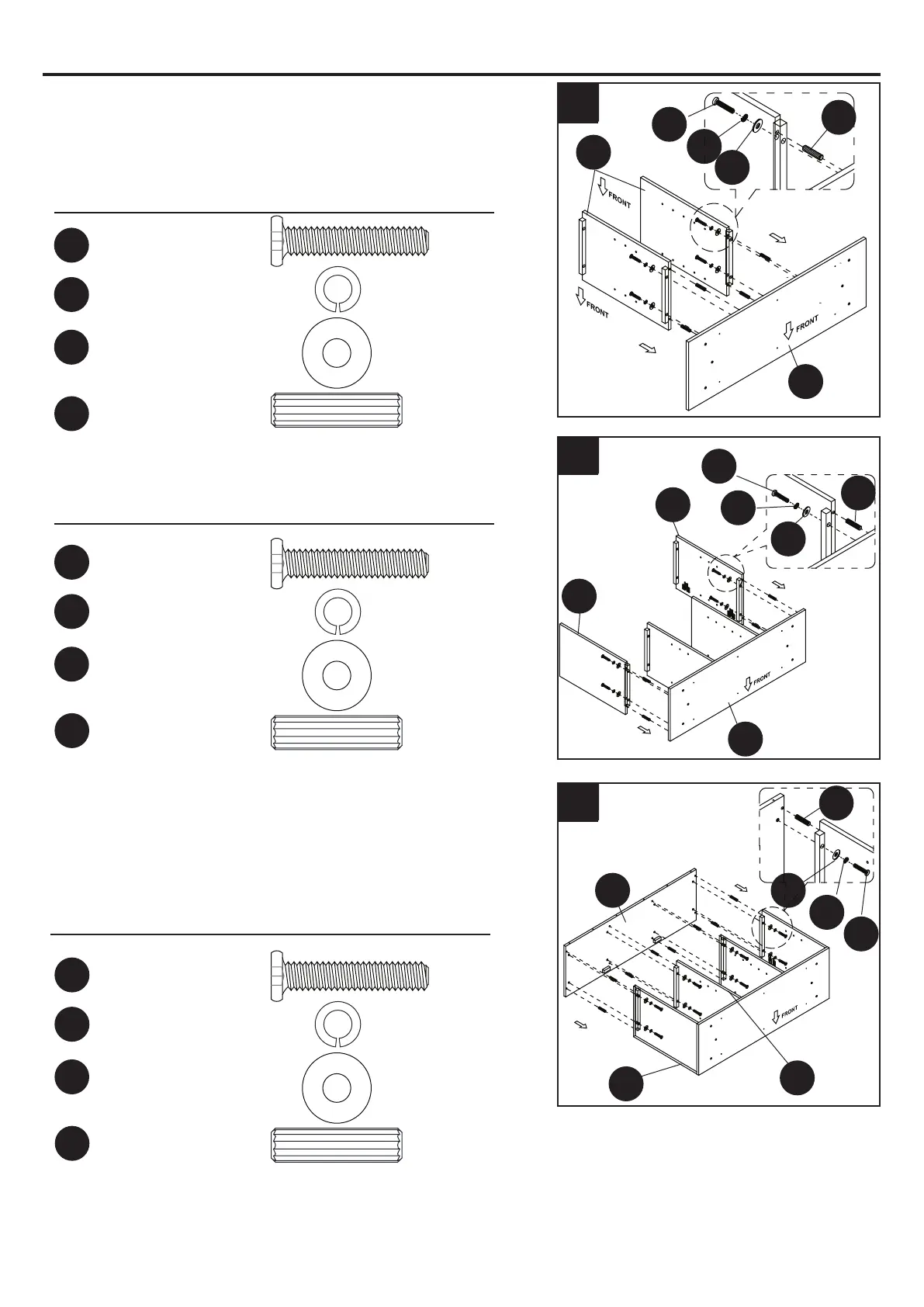

ASSEMBLY INSTRUCTIONS
1
Hardware Used
3
Hardware Used
1. Insert the 30 mm Wood Dowels (DD) into the outer
holes of the Partition Panels (D) and attach them to the
Bottom Panel (B) with two 32 mm Bolts (AA), two Lock
Washers (BB) and two Flat Washers (CC) in each.
x 4
D
AA
C
D
BB
CC
1/4” x 32mm Bolt
1/4” Lock Washer
x 4
1/4” Flat Washer x 4
M8 x 30mm
Wood Dowel
x 4
AA
CC
BB
B
2. Repeat the same procedure to attach the Side Panels
(C) to the Bottom Panel (B).
x 4
1/4” x 32mm Bolt
1/4” Lock Washer
x 4
1/4” Flat Washer x 4
M8 x 30mm
Wood Dowel
x 4
AA
BB
CC
3.1 Insert the 30 mm Wood Dowels (DD) into the end holes
of the vertical Panels (C and D).
3.2 Align the Top Panel (A) onto the inserted wood dowels
and fasten it in place with eight 32 mm Bolts (AA), eight
Lock Washers (BB) and eight Flat Washers (CC).
x 8
1/4” x 32mm Bolt
1/4” Lock Washer
x 8
1/4” Flat Washer x 8
M8 x 30mm
Wood Dowel
x 8
BB
AA
CC
DD
DD
C
DD
DD
A
Hardware Used
BB
AA
CC
DD
BB
AA
CC
DD
C
B
