1
DECK
RIC.HT
Ml
D/I
HUH
SPEAKER
Bl
ack/Yel
I
ow
(+)
ORION
300
PRO
PRE
AMP
EQUALIZER
or
ORION
600
EQM
EQUALIZER
ORION
400
BDG
BRIDGING
MODULE
DIN
Cable
Yellow(-)
SUBWOOF
EH
Yellow
(-1
Orange
{
+
)
Orange
(+}
Black/Orange
(-
Mixed
mono
operation
using
a
400
BDG
Bridging
Module
is
the
approach
to
use
when
you
want
to
add
a
subwoofer
to
the
a
single
amplifier
system.
This
mode
can
be
used
to
provide
more
power
to
the
subwoofer
while
maintaining
stereo
left
and
right.
In
this
system,
the
400
BDG
Bridging
Module
accepts
the
stereo
inputs
and
turns
one
channel
over
180
degrees
(inverts
the
channel).
Both
channel
outputs
of
the
amplifier
are
now
connected
to
the
subwoofer
with
the
inverted
channel
being
used
as
the
negative
input.
This
works
be¬
cause
the
two
channels
are
180
degrees
out-of-phase.
A
REMINDER:
The
speakers
must
never
be
grounded
to
tho
car
chamits
or
body.
To
do
so
will
cause
severe
noise
problems
and,
in
the
case
of
bridging,
cancel
out
the
two
phase
operation.
15V
GROUND
DIN
CONNECTOR
All
ORION
Accessorial
anil
Amplifiers
have
this
DIN
configuration.
The
left
mid/high
speaker
is
connected
normally,
but
the
connections
to
the
right
mid/high
speaker
must
be
turned
over
to
retain
the
stereo
effect.
This
means
that
the
yellow
lead
now
becomes
the
negative
lead
and
the
black/
yellow
lead
becomes
the
positive
lead.
'Phantom
Power'
(+15V
&
-15V)
is
supplied
to
dll
ORION
accessory
modules
by
the
amplifier
through
th«
DIN
cable.
(When
ORION
amplifiers
are
not
UMd,
ORION
PPS
100
Phantom
Power
Supply
is
requimd
)

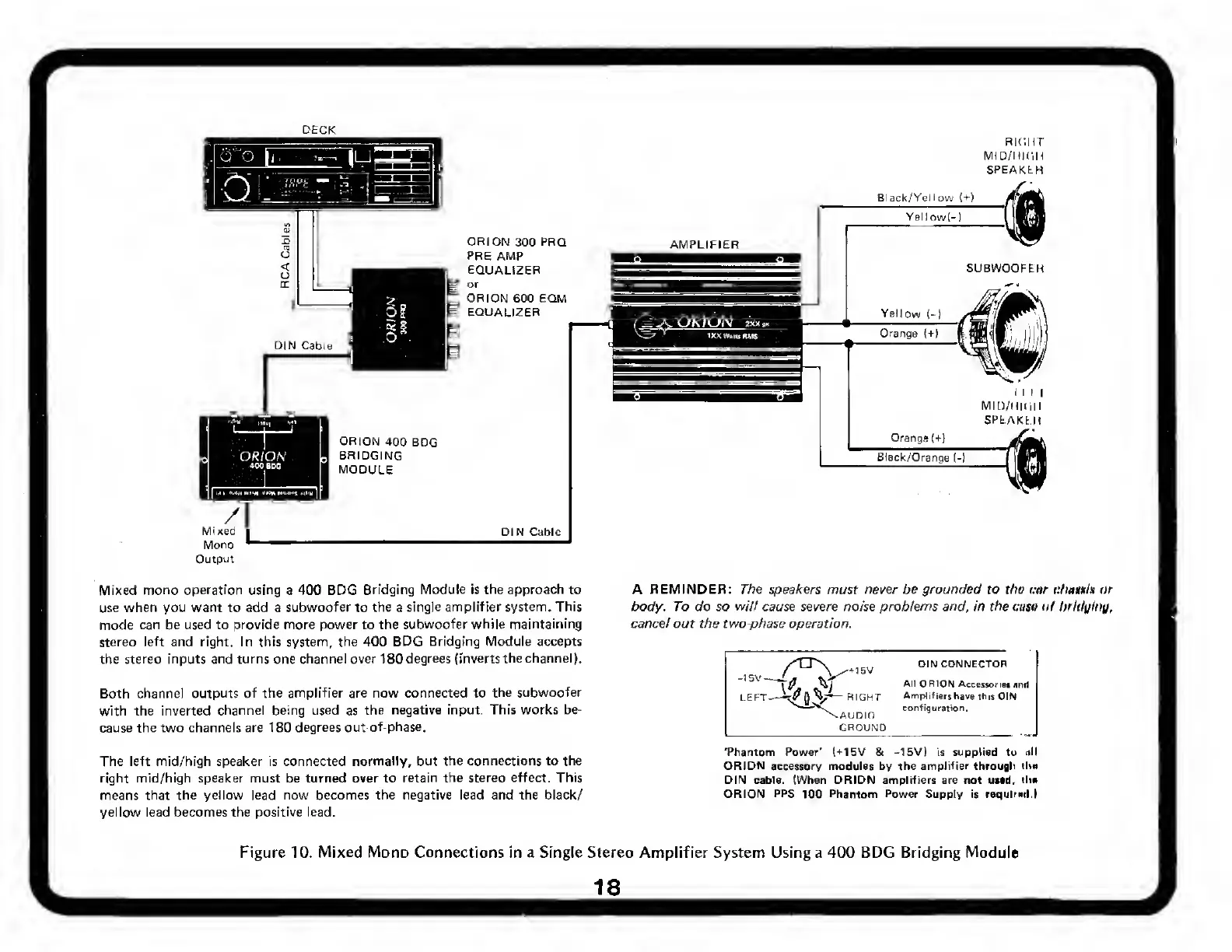

Figure
10.
Mixed
Mono
Connections
in
a
Single
Stereo
Amplifier
System
Using
a
400
BDG
Bridging
Module
18
