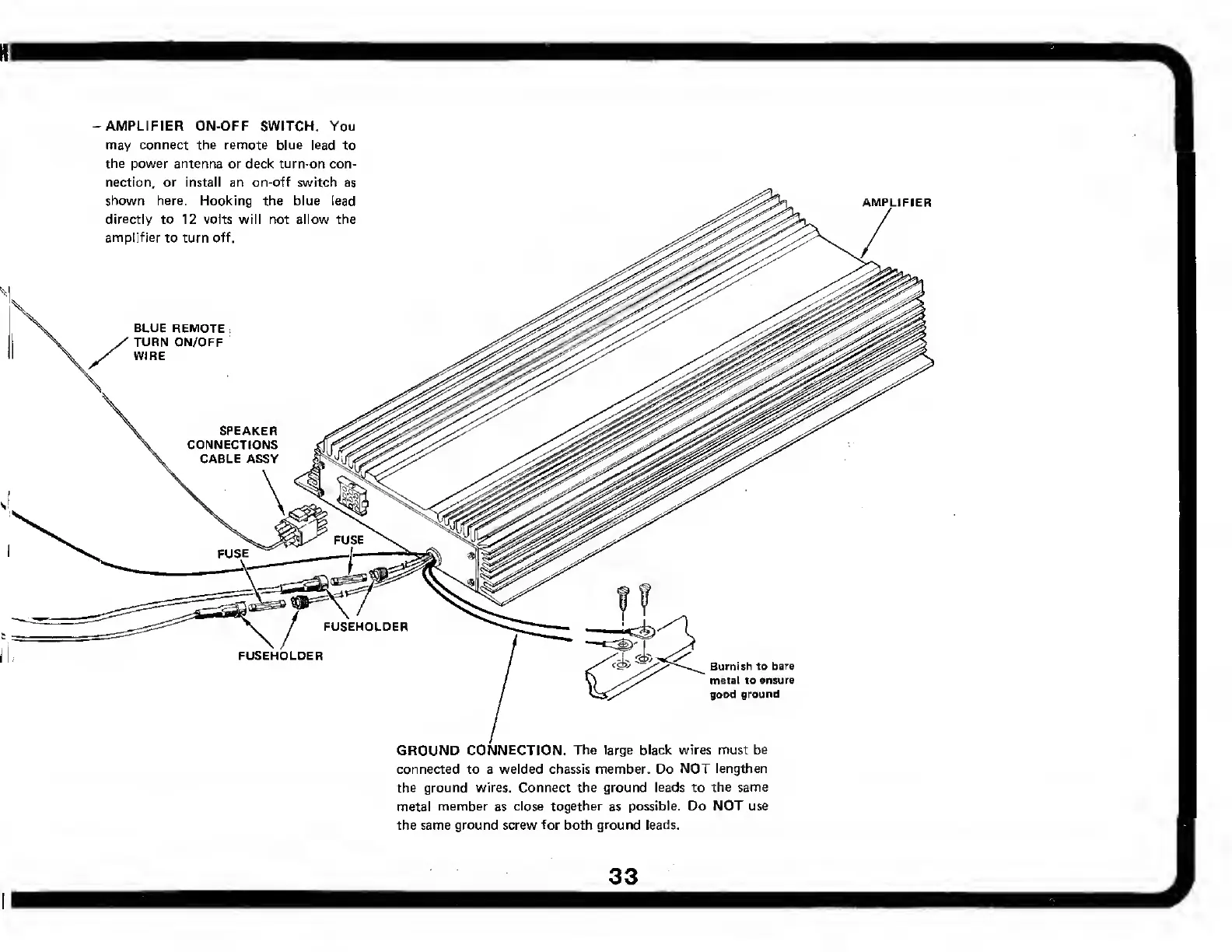

-AMPLIFIER
ON-OFF
SWITCH.
You
may
connect
the
remote
blue
lead
to
the
power
antenna
or
deck
turn-on
con¬
nection,
or
install
an
on-off
switch
as
shown
here.
Hooking
the
blue
lead
directly
to
12
volts
will
not
allow
the
amplifier
to
turn
off.
AMPLIFIER
Burnish
to
bare
metal
to
ensure
good
ground
GROUND
CONNECTION.
The
large
black
wires
must
be
connected
to
a
welded
chassis
member.
Do
NOT
lengthen
the
ground
wires.
Connect
the
ground
leads
to
the
same
metal
member
as
close
together
as
possible.
Do
NOT
use
the
same
ground
screw
for
both
ground
leads.
33
