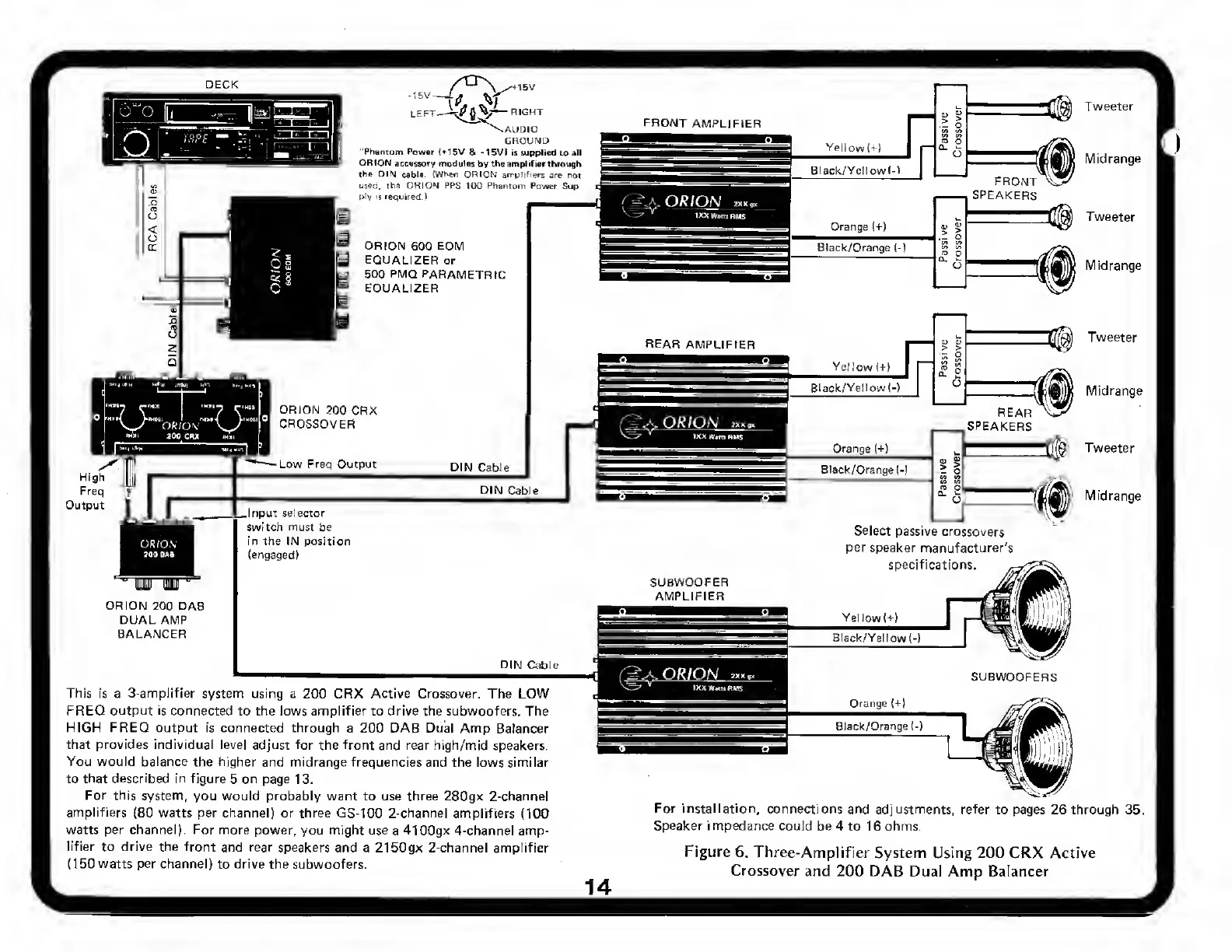

This is a 3-amplifier system using a 200 CRX Active Crossover. The LOW
FREQ output is connected to the lows amplifier to drive the subwoofers. The
HIGH FREQ output is connected through a 200 DAB Dual Amp Balancer
that provides individual level adjust for the front and rear high/mid speakers.
You would balance the higher and midrange frequencies and the lows similar
to that described in figure 5 on page 13.
For this system, you would probably want to use three 280gx 2-channel
amplifiers {80 watts per channel) or three GS-100 2-channel amplifiers (100
watts per channel). For more power, you might use a 4100gx 4-channel amp¬
lifier to drive the front and rear speakers and a 2150gx 2-channel amplifier
(150 watts per channel) to drive the subwoofers.
For installation, connections and adjustments, refer to pages 26 through 35.
Speaker i mpedance could be 4 to 16 ohms.
Figure 6. Three-Amplifier System Using 200 CRX Active
Crossover and 200 DAB Dual Amp Balancer
