Orion 280gx User Manual

r
DECK
High
Freq
Output
ORION 600 EQM
EQUALIZER
or
ORION 500 PMQ
PARAMETRIC
EQUALIZER
ORION 200 CRX
CROSSOVER
MODULE
DIN Cable
ORION 400 BDG
BRIDGING
MODULE
Summed
Mono
Output
HIGH/MID AMPLIFIER
MID/HIGH
SPEAKERS
MID/HIGH
SPEAKERS
DIN Cable
TWEETERS
-15 V -
LEFT-
^ + 15V
RIGHT
DIN CONNECTOR
All ORION Accessories and
Amplifiers have this DIN
configuration.
'Phantom Power' (+15V & -15V) is supplied to all
ORION accessory modules by the amplifier through the
DIN cable. (When ORION amplifiers are not used, the
ORION PPS 100 Phantom Power Supply is required.)
AUDIO
GROUND

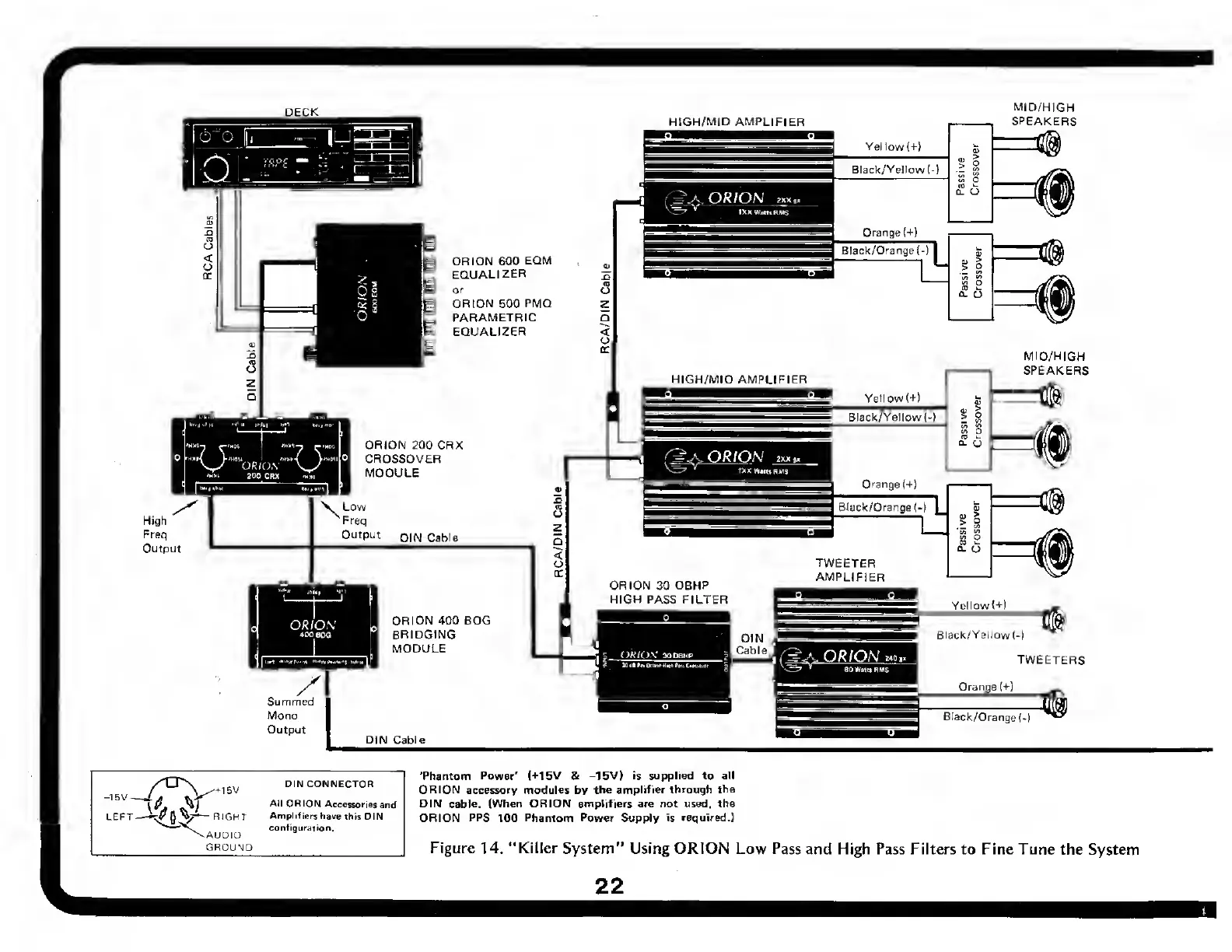

Figure 14. “Killer System" Using ORION Low Pass and High Pass Filters to Fine Tune the System

Orion 280gx Specifications

General

Brand	Orion
Model	280gx
Category	Amplifier
Language	English
