SUBWOOFER AMPLIFIER
Not
Used
Black/Orange
Orange (+)
Yellow (-)
Orange (+)
Yellow (-)

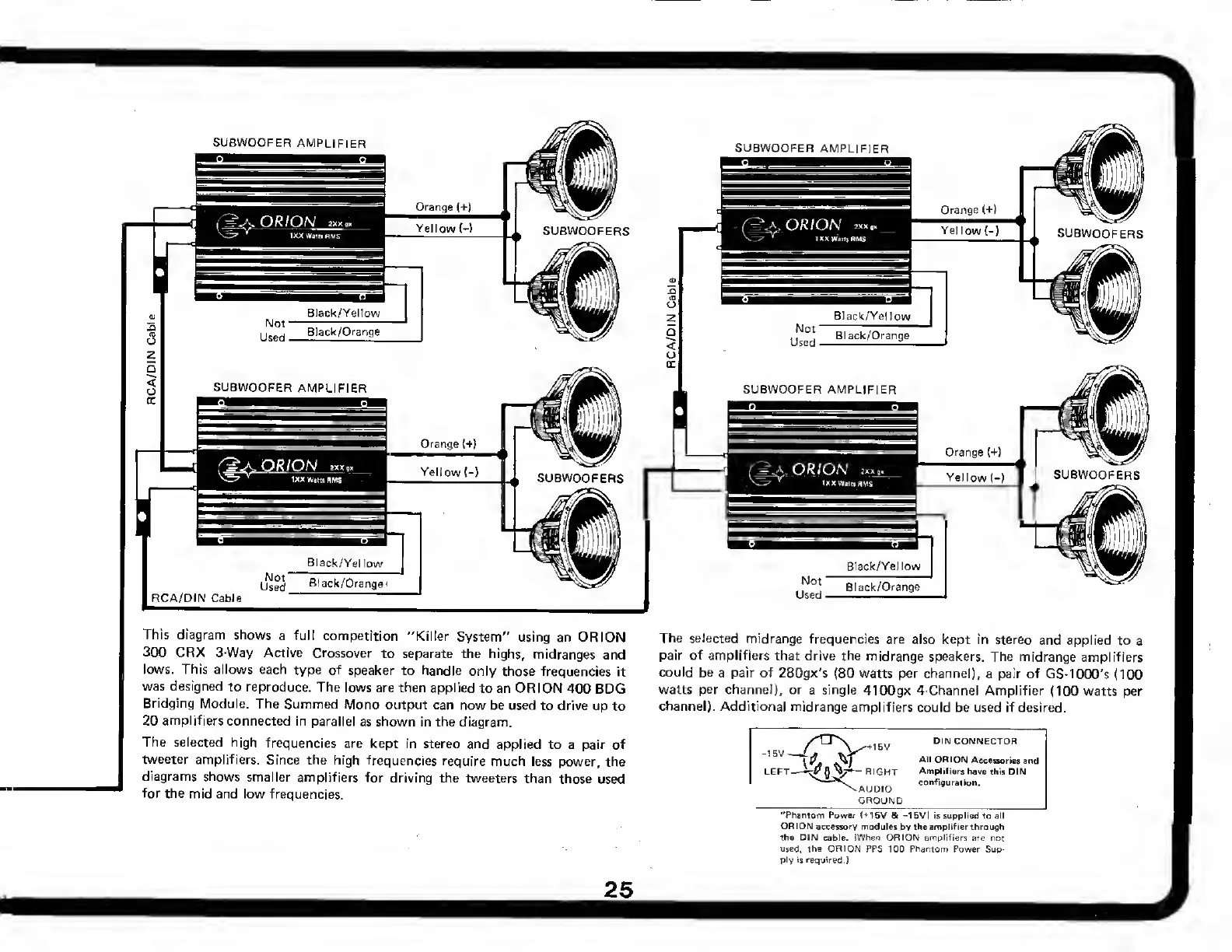

This diagram shows a full competition "Killer System" using an ORION
300 CRX 3-Way Active Crossover to separate the highs, midranges and
lows. This allows each type of speaker to handle only those frequencies it
was designed to reproduce. The lows are then applied to an ORION 400 BDG
Bridging Module. The Summed Mono output can now be used to drive up to
20 amplifiers connected in parallel as shown in the diagram.
The selected high frequencies are kept in stereo and applied to a pair of
tweeter amplifiers. Since the high frequencies require much less power, the
diagrams shows smaller amplifiers for driving the tweeters than those used
for the mid and low frequencies.
The selected midrange frequencies are also kept in stereo and applied to a
pair of amplifiers that drive the midrange speakers. The midrange amplifiers
could be a pair of 280gx's (80 watts per channel), a pair of GS-1000's (100
watts per channel), or a single 4100gx 4-Channel Amplifier (100 watts per
channel). Additional midrange amplifiers could be used if desired.
5 ,-RIGHT
AUDIO
GROUND
DIN CONNECTOR
All ORION Accessories and
Amplifiers have this DIN
configuration.
"Phantom Power (+15V & -15Vi is supplied to all
ORION accessory modules by the amplifier through
the DIN cable. (When ORION amplifiers are not
used, the ORION PPS 100 Phantom Power Sup¬
ply is required.)
25
