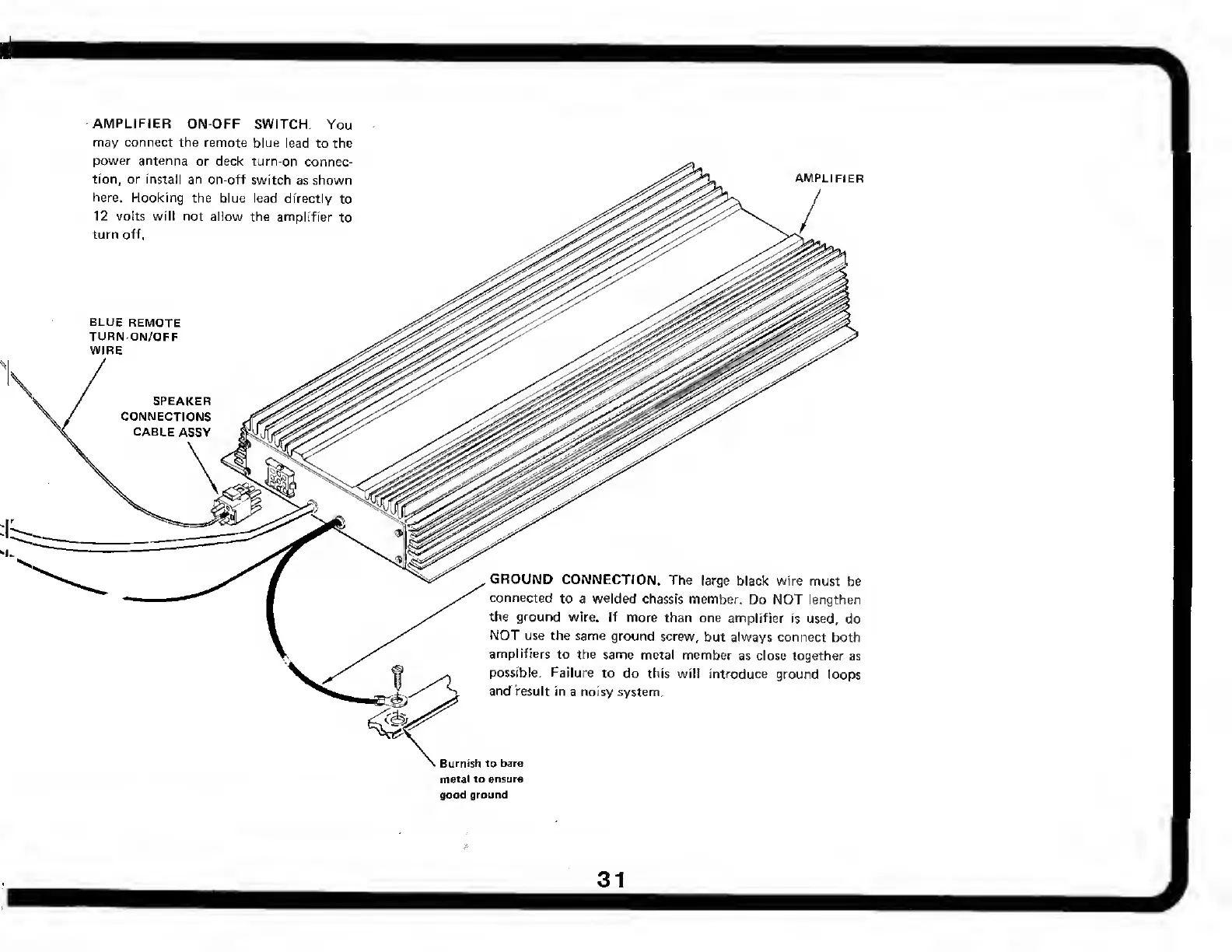

AMPLIFIER ON-OFF SWITCH. You
may connect the remote blue lead to the
power antenna or deck turn-on connec¬
tion, or install an on-off switch as shown
here. Hooking the blue lead directly to
12 volts will not allow the amplifier to
turn off,
BLUE REMOTE
TURN-ON/OFF
WIRE
SPEAKER
CONNECTIONS
CABLE ASSY
AMPLIFIER
.GROUND CONNECTION. The large black wire must be
connected to a welded chassis member. Do NOT lengthen
the ground wire. If more than one amplifier is used, do
NOT use the same ground screw, but always connect both
amplifiers to the same metal member as close together as
possible. Failure to do this will introduce ground loops
and result in a noisy system.
Burnish to bare
metal to ensure
good ground
