4 © 2007 directed electronics—all rights reserved
without signal.
3. RCA Inputs - Accepts RCA input from a source unit, preamplifier, or equalizer.
4. Gain Control - Continuously adjusts from 175mV to 8V input to obtain full power
output.
5. HPF, FULL, LPF Switch - Selects either Hi-pass crossover, Full range, or Lo-pass cross-
over.
6. Lo-Pass Frequency Control - Adjusts the frequency of the crossover.
7. Hi-Pass Frequency Control - Adjusts the frequency of the crossover.
8. Bass Boost Switch - Adjusts bass gain in three steps (0dB, 6dB, & 12dB).
9. Status LED - Will indicate any fault condition in amplifier, also lights briefly during
muting phase of turn-on

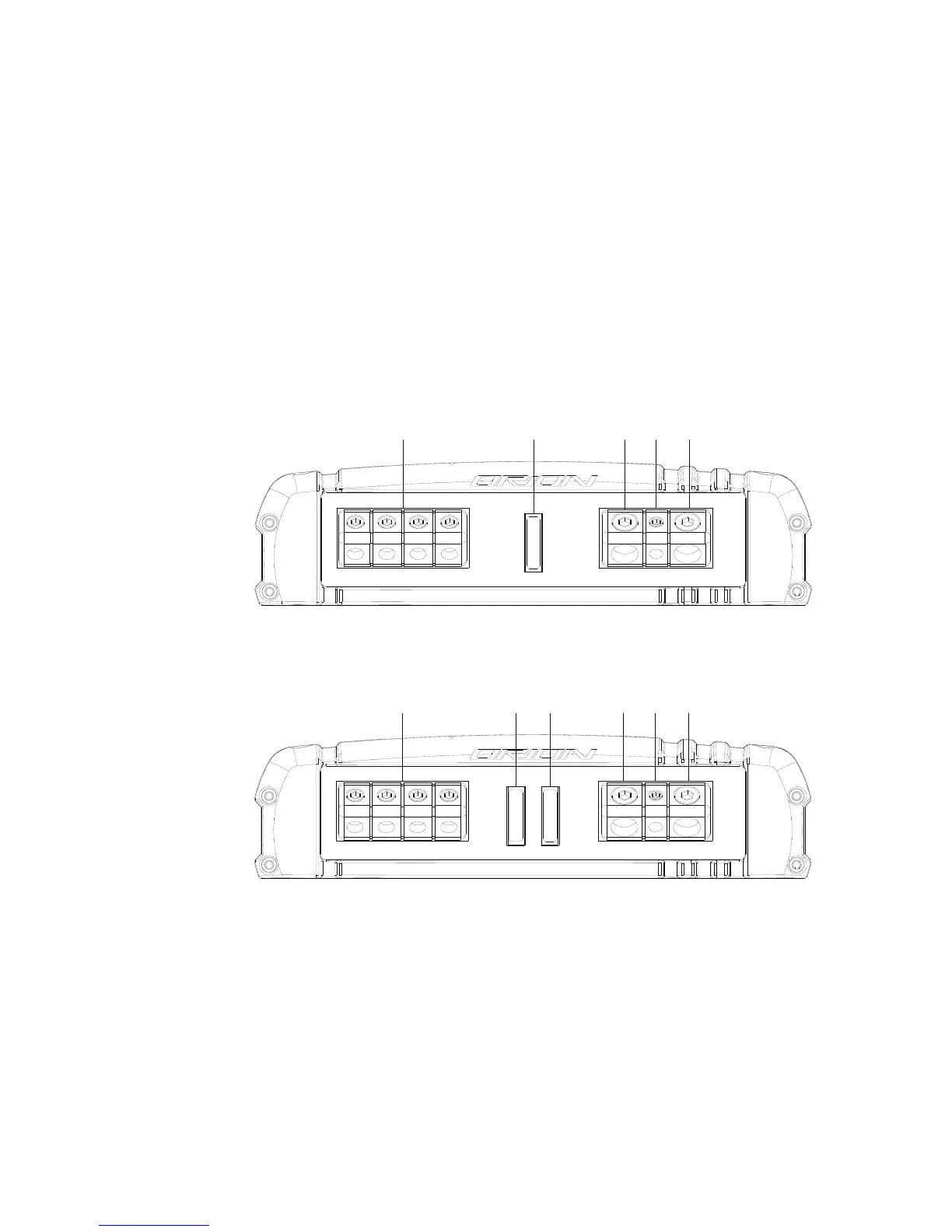

Output Plate
CO300.2
Figure 3
Figura 3
Abbildung 3
CO600.2
Figure 4
Figura 4
Abbildung 4
232145
1. Speaker Connections - accepts up to 12 AWG speaker wire.
2. 1 ATC Fuse (CO300.2) - 2 ATC Fuses (CO600.2) - protects the amplifier from over
current situations.
3. Power Connections - accepts up to 4 AWG power cables.
4. REM Remote Turn-on Input - turns on the amplifier when fed 12 V+.
5. Ground Connection - accepts up to 4 AWG ground cable.
