Orion HCCA102 User Manual

2 ohm
2 oh
Parall
el—One Speaker (dual 2 ohm voice coils)
One dual
2 ohm voice coil woofer with voice coils in parallel results in a 1 ohm load
to the amplifier.
- -
+ +

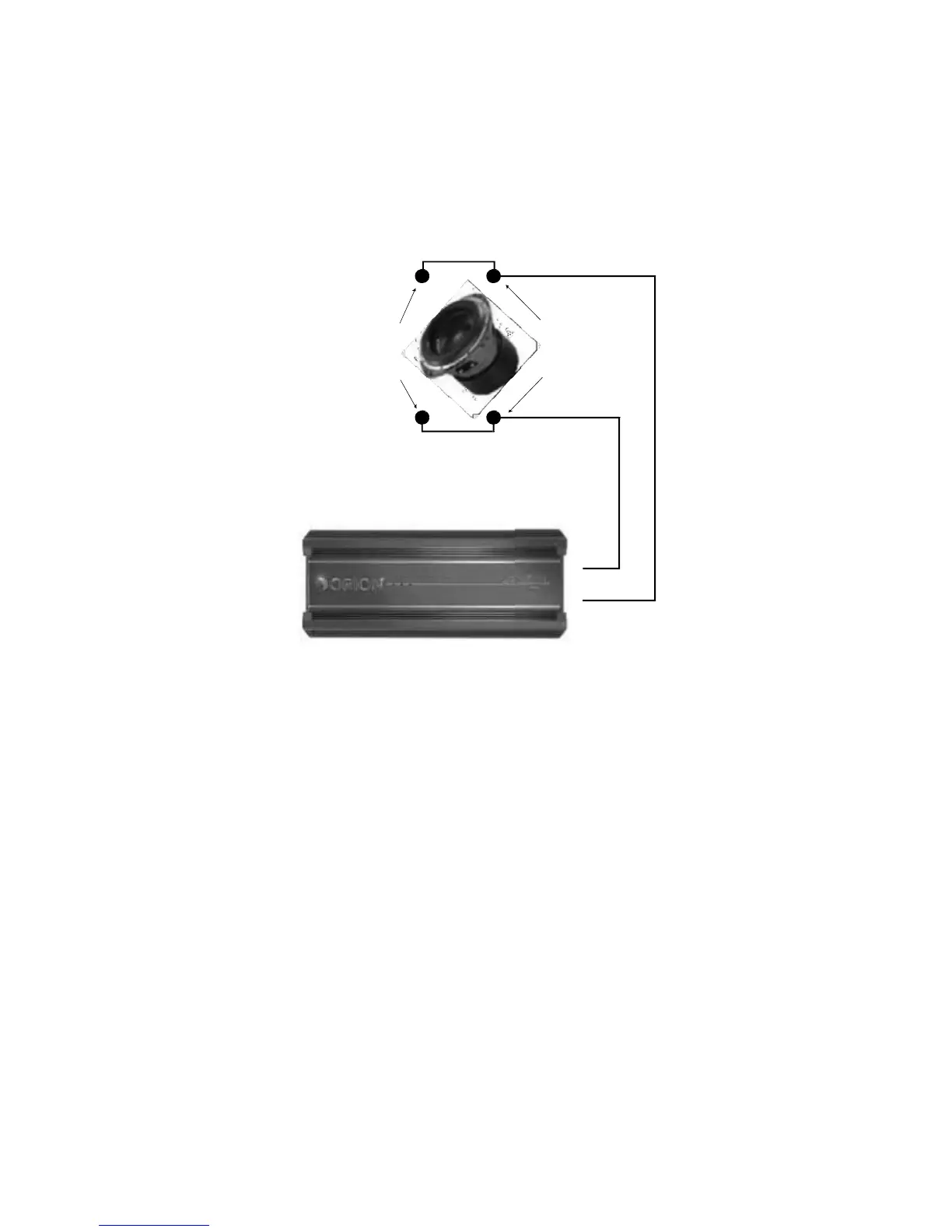

Figu
re 3
Figura 3
Abbildung 3
+
-
1. Connec
t the speaker in parallel by connecting the two positive (+) terminals
together and the two negative (-) terminals together.
2. Wir
e the positive (+) terminals of the woofer to the positive (+) terminal on the
amplifier. Wire the negative (-) terminals of the woofer to the negative (-) terminal
on the amp.

Orion HCCA102 Specifications

General

Brand	Orion
Model	HCCA102
Category	Subwoofer
Language	English
