Orion HCCA102 - Parallel-One Speaker (dual 4 ohm voice coils)

4 ohm 4 ohm

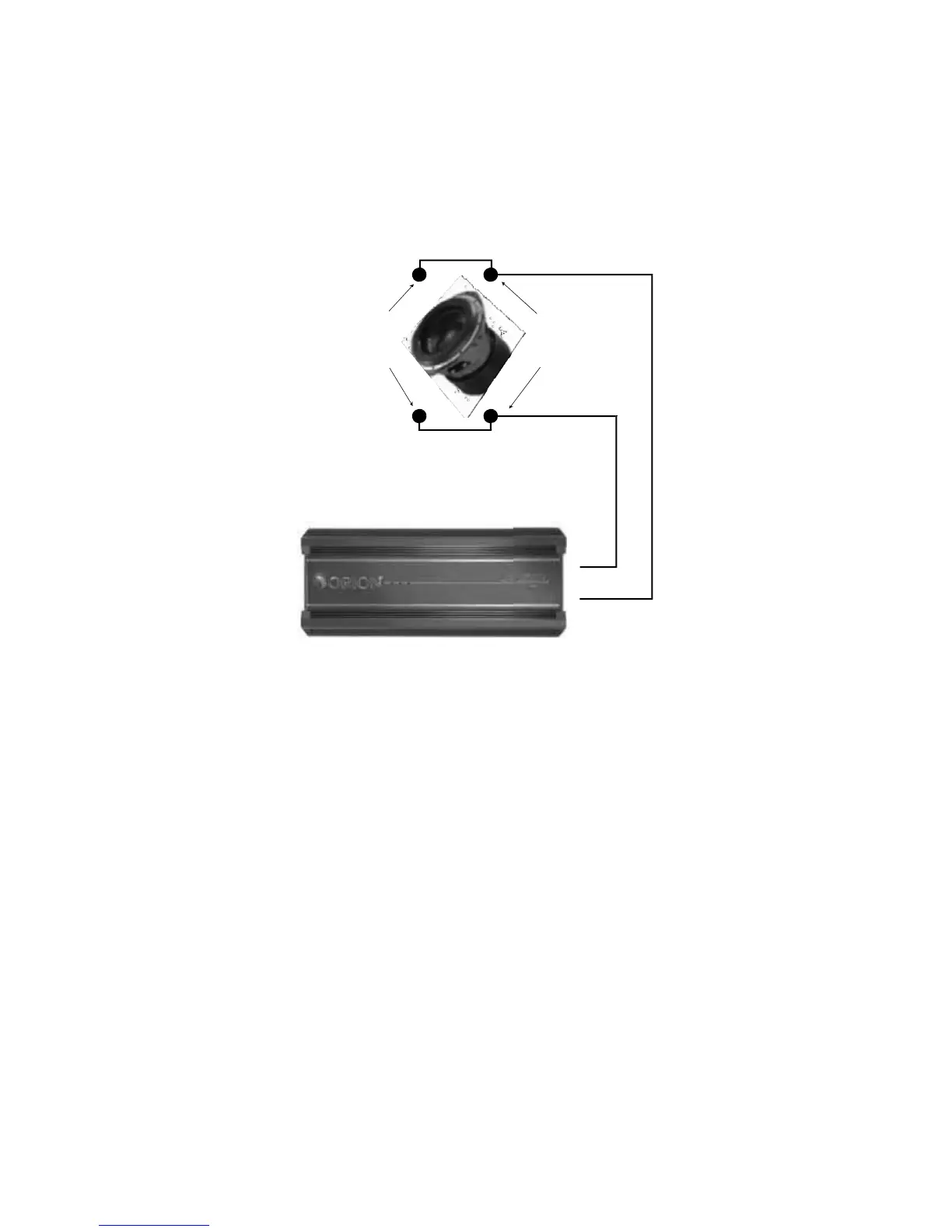

Parall
el—One Speaker (dual 4 ohm voice coils)
One dual
4 ohm voice coil woofer with voice coils in parallel results in a 2 ohm load
to the amplifier.
- -
+ +
Figu
re 4
Figura 4
Abbildung 4
+
-
1. Connect the speaker in parallel by connecting the two positive (+) terminals
together and the two negative (-) terminals together.
2. Wir
e both positive (+) terminals of the woofer to the positive (+) terminal on the
amplifier. Wire both negative (-) terminals of the woofer to the negative (-) terminal
on the amplifier.
