7

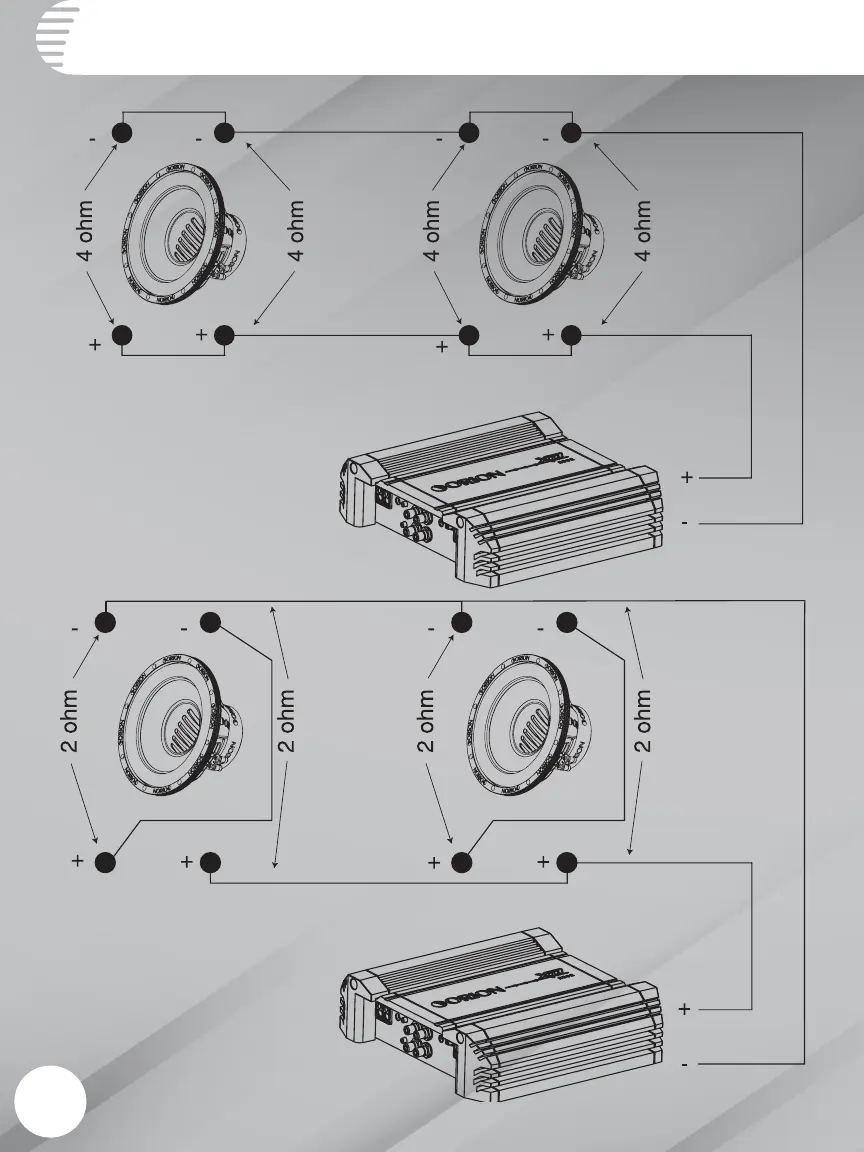

Parallel - Two Speaker (Dual 4 ohm voice coils)
Two dual 4 ohm voice coil woofer with voice coils
in parallel and the two woofers in parallel
results in a 1 ohm load to the amplifier
Series/Parallel - Two Speaker (Dual 2 ohm voice coils)
Two dual 2 ohm voice coil woofer with voice coils
in series and then parallel the two series
woofers results in a 2 ohm load to
the amplifier
WIRING CONFIGURATION
