WIRING CONFIGURATIONWIRING CONFIGURATION

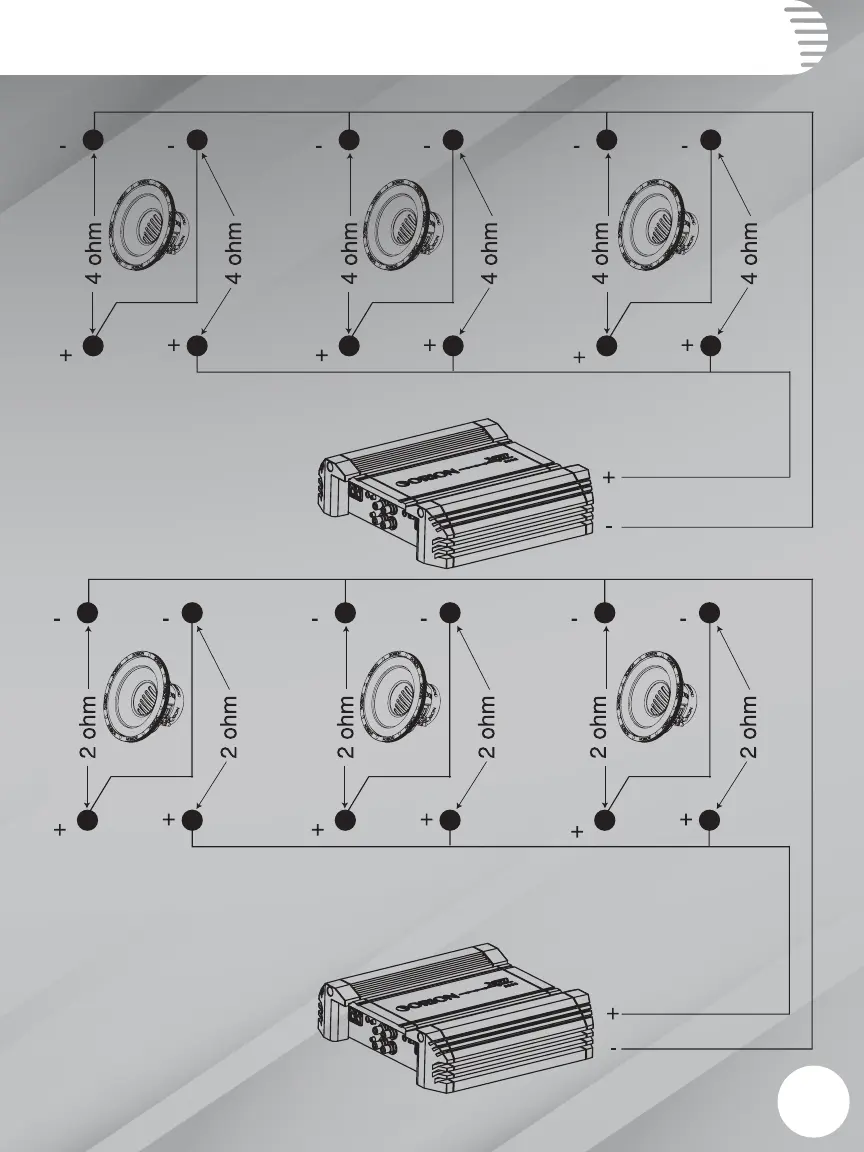

Series/Parallel - Three Speaker (Dual 4 ohm voice coils)
Three dual 4 ohm voice coil woofer wired in
series and then parallel the three
woofers for a resulting
2.67 ohm load to the
amplifier
Series/Parallel - Three Speakers (Dual 2 ohm voice coils)
Three dual 2 ohm voice woofer with voice coils of each
woofer wired in series and then parallel the three
woofers for a resulting 1.33 ohm load
to the amplifier.
