XTRPRO102 & 104 Vented Enclosure Recommendations
Box Properties
— Description
—
Type:
Vented Box
Shape: Prism, Square
— Box Parameters —
Vb = 0.75
cu.ft
V(total) = 0.841 cu.ft
Fb = 44 Hz
QL =
7
F3 = 35.24
Hz
Fill =
none
— Vents —
No. of Vents =
1
Vent shape =
round
Vent ends = one
flush
Dv = 3 in. (76
mm)
Lv = 11.19 in. (284
mm)

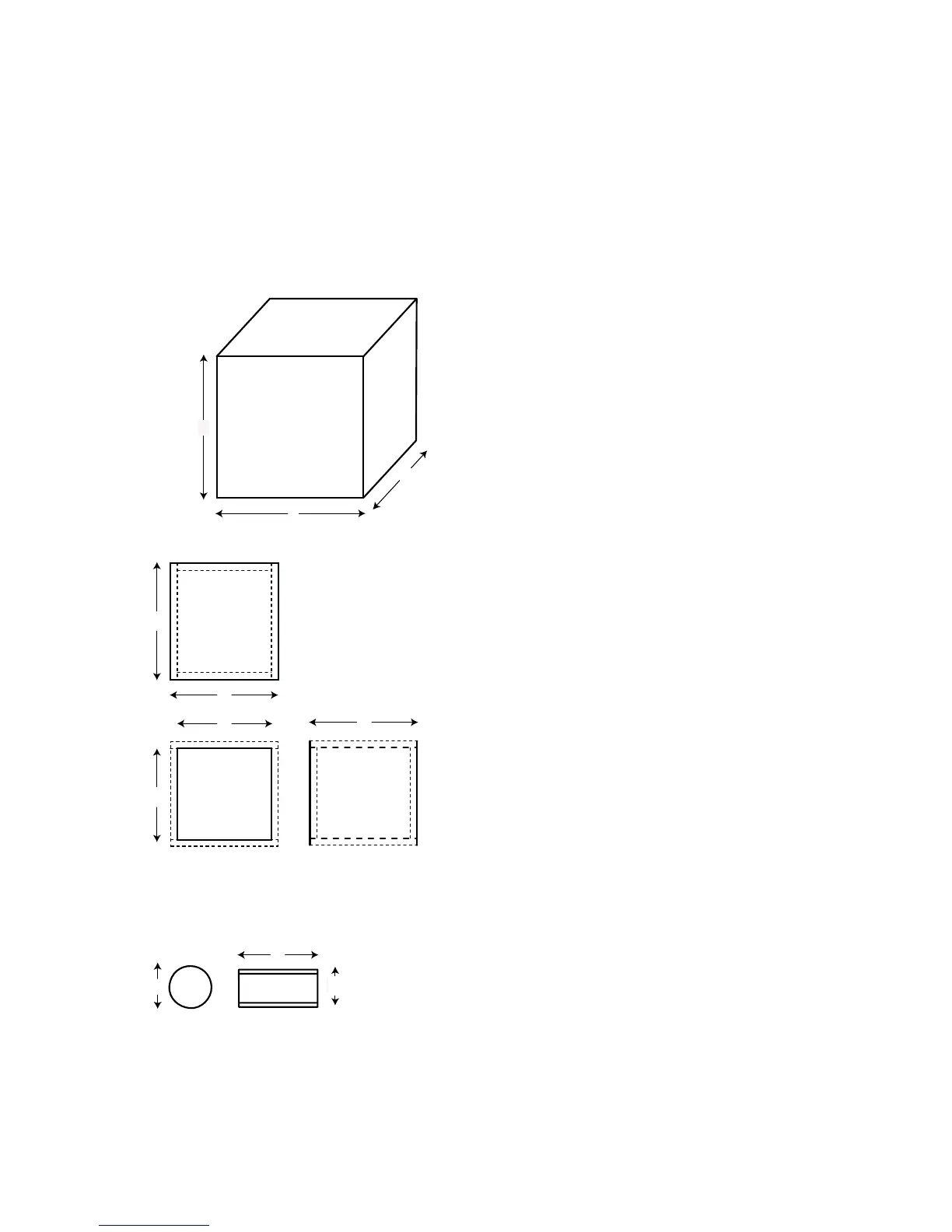

Figure 15
Figura
15
Abbildung
15
A
B
External
Dimensions
A = 12 in. (305
mm)
B = 15.5 in. (394
mm)
C = 11.39 in. (289
mm)
Internal Dimensions
A = 10.5 in. (267
mm)
B = 14 in. (356 mm)
C = 9.89 in. (251
mm)
C
Wall
Thickness
Front = 0.75 in. (19 mm)
Side = 0.75 in. (19
mm)
c
To p
&
Bottom
b
d
Front &
a
Back
h
e
c
Sides
g
—Box
Parts—
Box Shape: Square
Prism
1Top,1
Bottom:
depth (c) = 11.39 in. (289
mm)
width (b) = 15.5 in. (394 mm)
thickness = 0.75 in. (19 mm)
1 Front, 1
Back:
height (a) = 10.5 in. (267
mm)
width (d) = 14 in. (356 mm)
thickness = 0.75 in. (19 mm)
height (a) = 10.5 in. (267 mm)
depth (c) = 11.39 in. (289 mm)
thickness = 0.75 in. (19 mm)
—Driver Mounting—
Mounting: Front
Vent Parts
1
Duct:
outside diameter (e) = 3.25 in. (83 mm)
inside diameter (g) = 3 in. (76 mm)
length (h) = 11.19 in. (284 mm)
