Orion XTRPRO122D User Manual

22
XTRPRO152 & 154 Sealed Enclosure Recommendations
Box Properties
— Description —
Type: Closed Box
Shape: Prism, Square
— Box Parameters —Vb
= 2 cu.ft
V(total)
= 2.078 cu.ft
Qtc = 0.963
QL = 5.281
F3 = 37.55 Hz
Fill = none

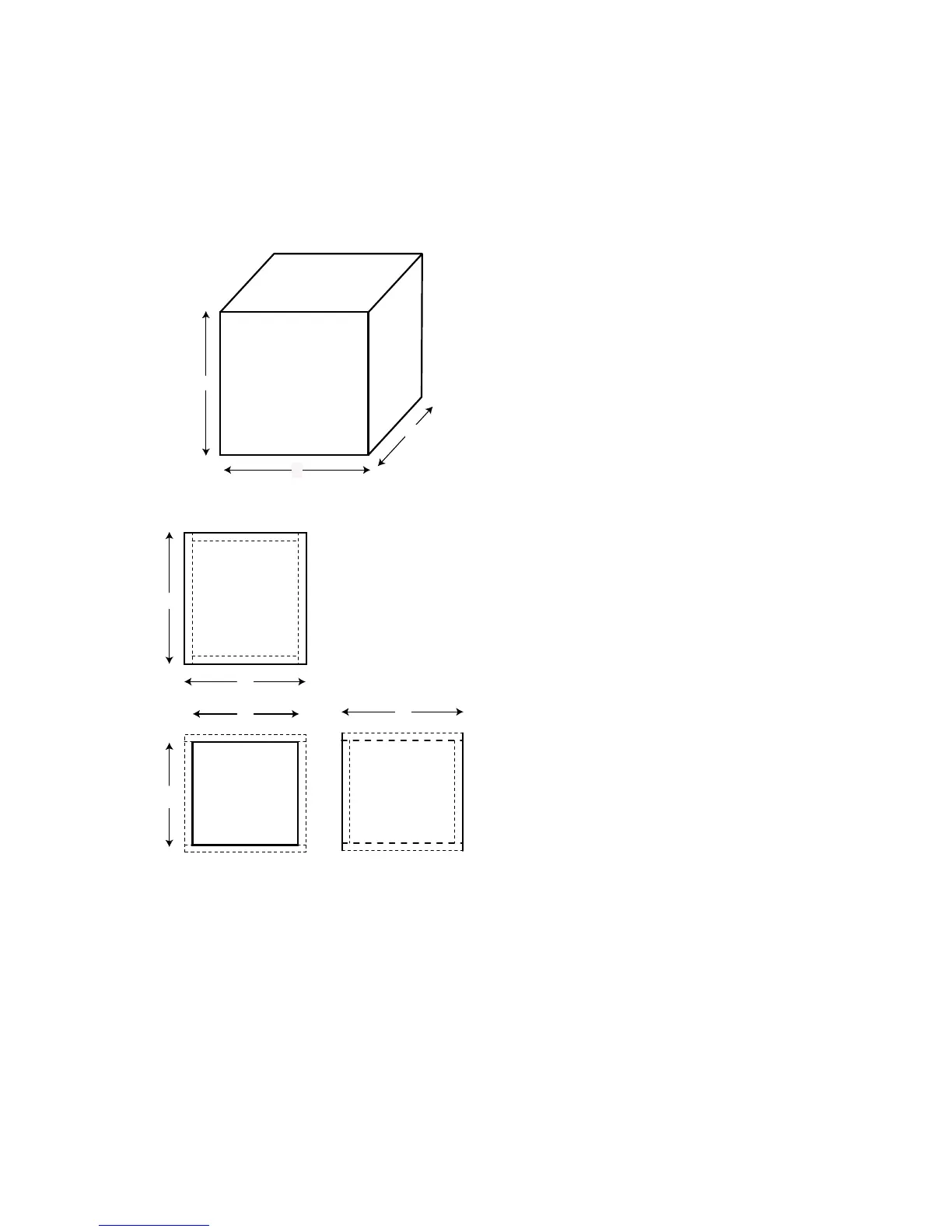

External Dimensions
A = 17.5 in. (445 mm)
B = 17.5 in. (445 mm)
C = 15.52 in. (394 mm)
Internal Dimensions
A = 16 in. (406 mm)
A
B = 16 in. (406 mm)
C = 14.02 in. (356 mm)
C
Wall Thickness
Front = 0.75 in. (19 mm)
B
Side = 0.75 in. . (19 mm)
c
Top &
Bottom
b
d
Front &
a
Back
c
Sides
—Box Parts—
Box Shape: Square Prism
1 Top, 1 Bottom:
depth (c) = 15.52 in. (394 mm)
width (b) = 17.5 in. (445 mm)
thickness = 0.75 in. (19 mm)
1 Front, 1 Back:
height (a) = 16 in. (406 mm)
width (d) = 16 in. (406 mm)
thickness = 0.75 in. (19 mm)
2 Sides:
height (a) = 16 in. (406 mm)
depth (c) = 15.52 in. (394 mm)
thickness = 0.75 in. (19 mm)
Figure 18
Figura 18
Abbildung
18
—Driver Mounting—
Mounting: Front
