1 Duct:
outside diameter (e) = 4.25 in. (108 mm)
inside diameter (g) = 4 in. (102 mm)
length (h) = 5.422 in. (138 mm)
e
g
23
XTRPRO152 & 154 Vented Enclosure Recommendations
Box Properties
— Description
—
Type:
Vented Box
Shape: Prism, Square
— Box Parameters —Vb
= 3 cu.ft
V(total)
= 3.116 cu.ft
Fb = 36 Hz
QL =
5
F3 = 29.7
Hz
Fill =
none
— Vents —
No. of Vents =
1
Vent shape =
round
Vent ends = one
flush
Dv = 4 in. (102
mm)
Lv = 5.422 in. (138
mm)

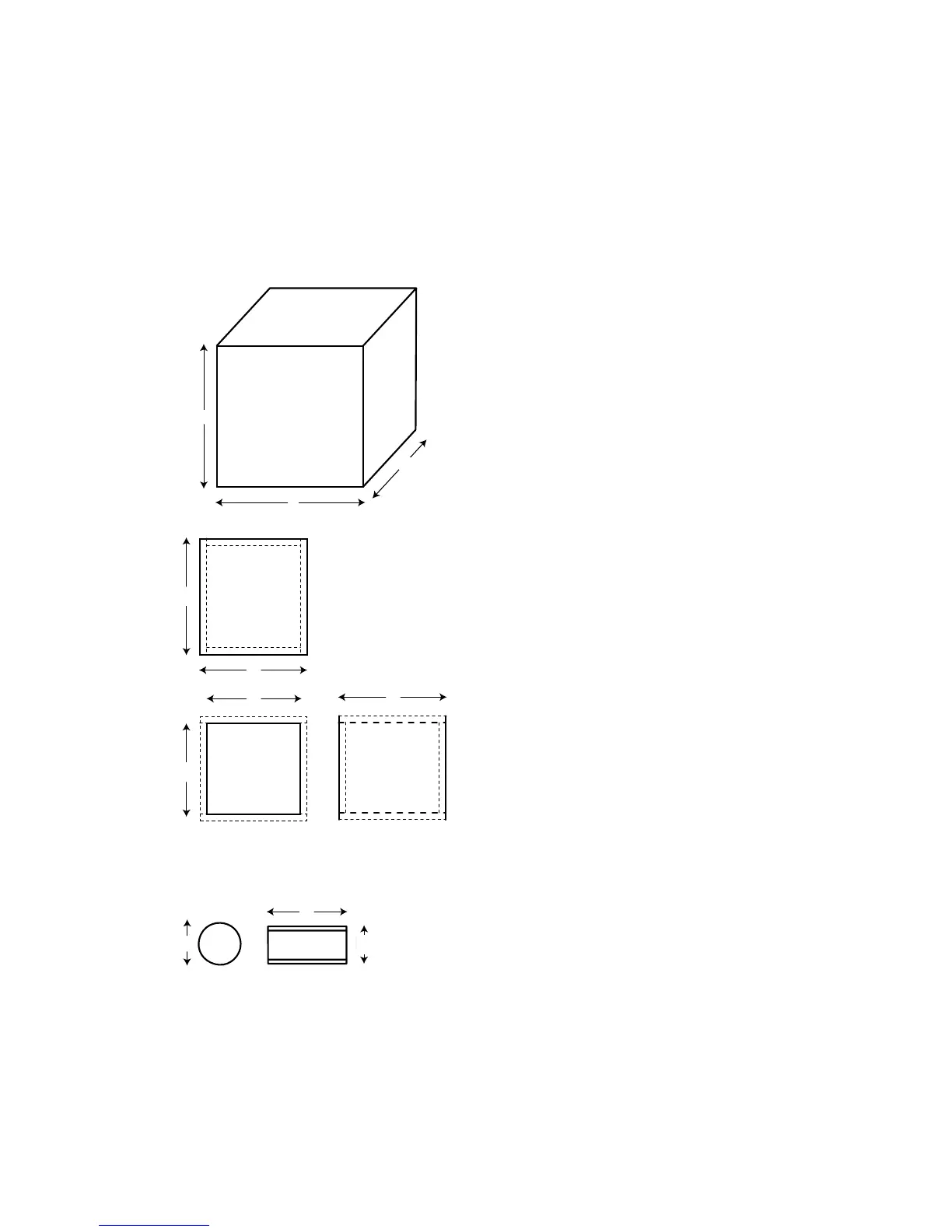

Figure 19
Figura
19
Abbildung
19
A
B
External
Dimensions
A = 18.5 in. (470
mm)
B = 23.5 in. (597 mm)
C = 15.9 in. (404 mm)
Internal
Dimensions
A = 17 in. (432
mm)
B = 22 in. (559 mm)
C = 14.4 in. (366
mm)
C
Wall
Thickness
Front = 0.75 in. (19
mm)
Side = 0.75 in. (19 mm)
c
To p
&
Bottom
b
d
Front &
a
Back
h
c
Sides
—Box
Parts—
Box Shape: Square
Prism
1Top,1
Bottom:
depth (c) = 15.9 in. (404
mm)
width (b) = 23.5 in. (597 mm)
thickness = 0.75 in. (19 mm)
1 Front, 1
Back:
height (a) = 17 in. (432
mm)
width (d) = 22 in. (559 mm)
thickness = 0.75 in. (19 mm)
height (a) = 17 in. (432 mm)
depth (c) = 15.9 in. (404 mm)
thickness = 0.75 in. (19 mm)
—Driver Mounting—
Mounting: Front
Vent Parts --- Square
