Orlaco 0103742 - Electrical Installation; Camera TIC 9 hz Connector Type; Supplied Cable Connections

4 IM0973120 A 01

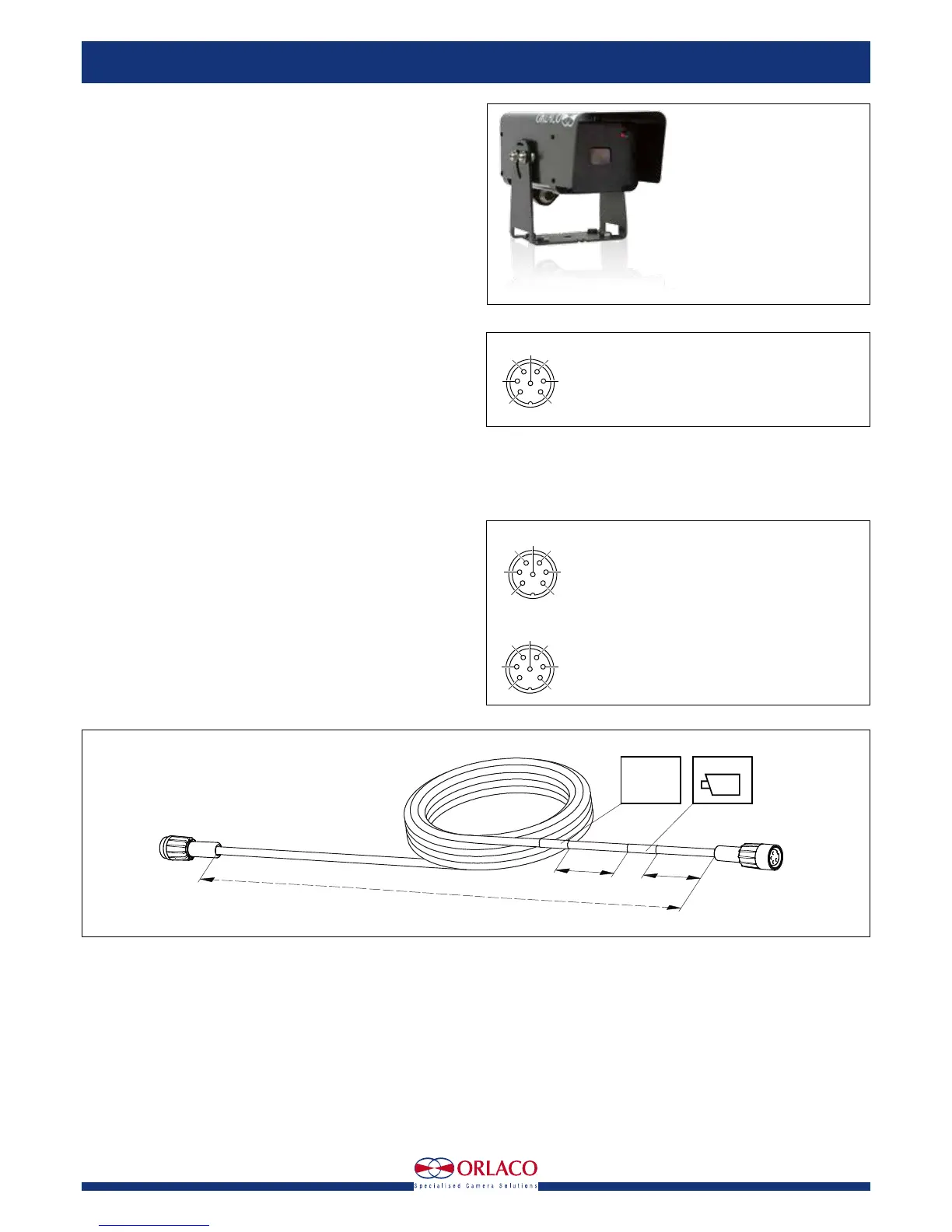

4. Electrical installation
4.1. Camera TIC 9hz connector type
Art. no. 0103732
Electrical connections, see figure 4
Solder side of 7p male socket.
1 = Coax core Video
2 = Coax shielding Video GND
3 = Red Camera power, 12...30V/DC
4 = Black Camera 0V
5 = Yellow Serial 1 TX
6 = Orange Serial 2 RX
7 = Grey N.C.
Shielding GND
4.2. Supplied cable
Art. no. 0304410 Cable 6,0m m7M m7F, see figure 6.
Electrical connections, see figure 5
Front side of 7p molded connector.
1 = Coax Core Video
2 = Coax Shield Video GND
3 = Red Power input
4 = Black 0V
5 = Orange Rx
6 = Yellow Tx
7 = Grey N.C.
For specifications; see Data sheet DS0304410
2
5
7
4
3
6
1
Solder side
7p male socket
Figure 4
2
5
7
4
3
6
1
2
5
7
4
3
6
1
Front side molded
7P Male connector
Front side molded
7P Female connector
Cable length
100
100
0304***
YM
Label 1
Label 2
CAMERA-END
Molded connector 7pin male
Molded connector
7pin female
Figure 5
Figure 6
Art. no. 0103732 Camera TIC 320 9hz connector type
Installation Manual
