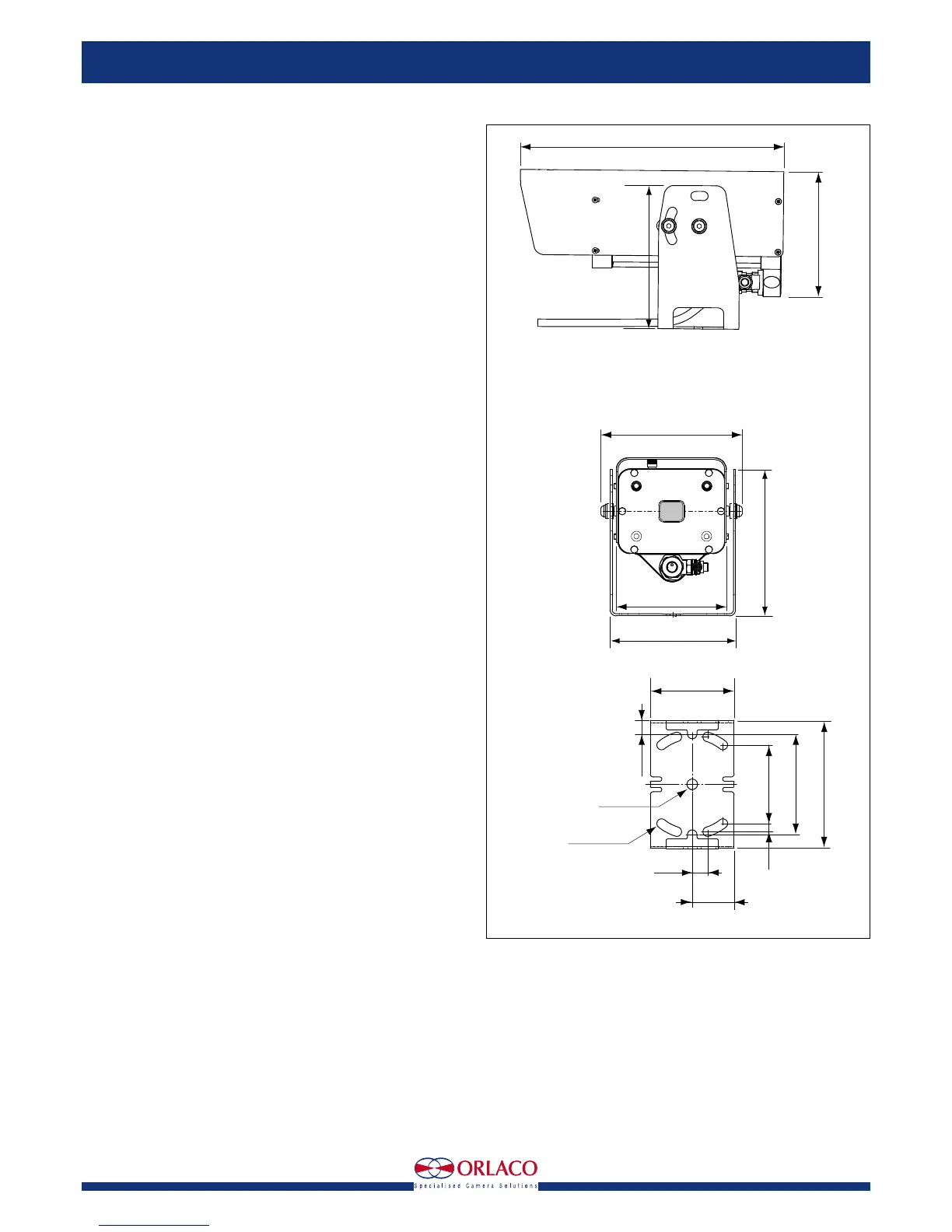

6 IM0973120 A 01
UNITS IN MM
122,0
96,0
13,0
80,0
74,9
7,7
40,0
14,7
R4,5 +0,5 -0,0
∅10,0
122,0
141,5
260,0
109,0
140,2
122,0
141,5
8. Dimensions7. Technical specications
Sensor: Uncooled LWIR Thermal Imager 336x 256 VOx Microbolometer.
Pixel size: 25 micron.
Frame Rates: 30/60 Hz (NTSC); 25/50 Hz (PAL).
Sensitivity: <50 mk f/1,0.
Scene Range: High Gain -40°C to +160°C. Low Gain -40°C to +550°C.
Digital zoom: 2x & 4x.
Video: NTSC/PAL, field switchable.
Lens: WFOV (Wide Field Of View), 19mm (f1.24) 24° x18°.
Color: 15 Color Palettes (LUTs).
Presets: 128 presets Visca and 255 presets Pelco-D.
Construction Alu: Stainless steel QS304, mounting parts and sun cover,
anodised Aluminium housing, suitable for mobile applications with
shocks and vibrations. Corrosion proof housing according to IEC 60068-
2-52 salt mist, cyclic.
Construction Sst: Housing, mounting parts and sun cover; stainless
steel QS304, suitable for mobile applications with shocks and vibrations.
Corrosion proof housing according to IEC 60068-2-52 salt mist, cyclic.
Ingress protection: IP 68 according to IEC 60529 (25 m under water),
dry-nitrogen filled, 1,4 Bar overpressure.
Bracket Alu: Standard Alu bracket, including bolts, nuts and washers.
Suitable for mounting overhead and standing.
Bracket Sst: Stainless steel bracket, including bolts, nuts and washers.
Suitable for mounting overhead and standing.
Operating temperature: -40°C to +85°C.
Weight Alu: 2,6 kg.
Weight Sst: 5,1 kg.
Power input: Cable between camera and power supply < 50 m 12-24V/
DC, > 50 m 18-24V/DC.
Power consumption; Temperature <0°C (demister on): 7,2 W & >0°C
(demister off): 3,6 W.
Communication: Communication via serial interface through pin nr. 5 and
6 on the 7 poles connector, Visca,- Pelco-D protocol (RS232) 9,6 Kbps.
Green Passport: All materials are compliant to Green Passport
requirements according IMO resolution MEPC.197(62) as adopted on
15 July 2011 (Maritime sector: International Maritime Organization
concerning the functions of the Marine Environment Protection
Committee).
Serial commands: See Orlaco Visca protocol manual; IM0973300. For
Pelco-D commands see chapter 7.
