1. Mounting and connecting Camera
1.2. Camera attachment.

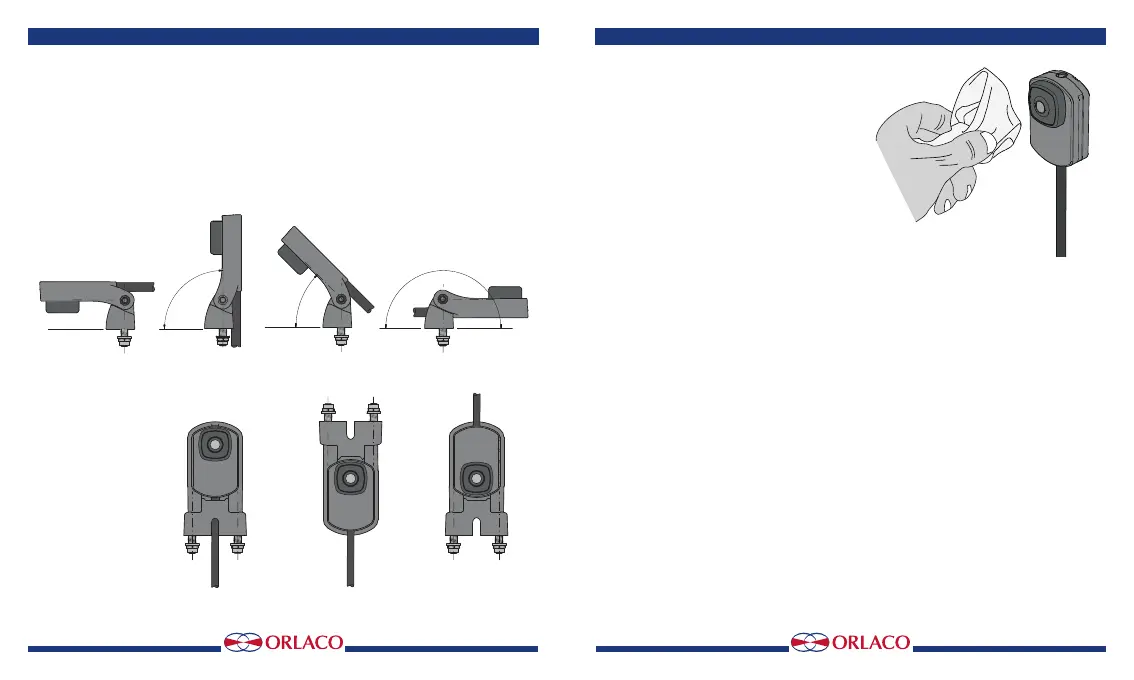

Bracket adjustment; see figure 1.
Installation manual
90°
45°
standard
hanging
camera turned
180˚ rotation
180°
Recommendation:
The bracket should be tightened with
a torque of 6 Nm nominal. (Screw and
Bolts).
Tighten by hand or with very low
speed, see figure 2.
Figure 1
17
6. Maintenance and cleaning
Fixing a blurry image:
If the camera image is blurry, it is
advisable to clean the camera.
Cleaning the lens glass:
Use a soft cloth to clean the lens glass
of the camera. Use clean water or a
high quality and safe foam cleaner.
Rub the camera lens glass clean with
the cloth.
Do absolutely not use aggressive
chemicals or abrasive cleaning agents.
7. Disposal
Disassembly, removal and disposal. Local regulations for dealing with waste
must be followed when disposing of disassembled components or entire units.
