Page 11 / 36
Hartley and Sugden

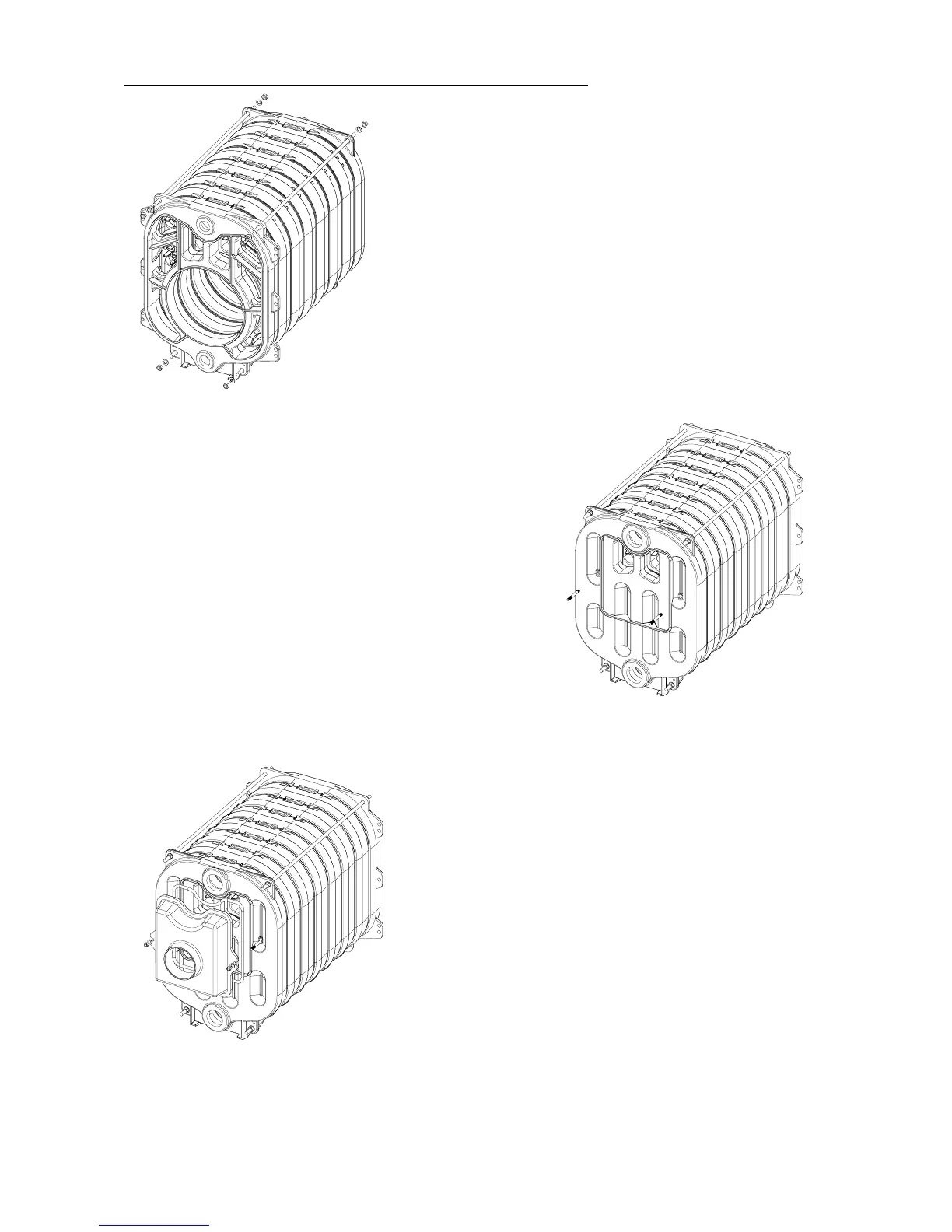

15. Installation of the tie r ods for as sembly of the cast iron bod y. Inse rt the
4 tie rods in the l ugs o f the front an d rear sections.
On the front face : 4 plain washers M16.
4 nuts DIN934 M16.
On the rear face : 4 plain washers M16.
4 nuts DIN934 M16.
Once the tie rods have been installed, unscrew the nut of t he mounting
bar and remove the front plate. Remove the mounting bars.
16. Flue gas box installation.
Screwthe2 studs DIN 939 12x90 ( code n°1-80-300-12090 ) intothe
tapped holes in the rear section, the end with the shortest thread
in the section.
17. Placethesiliconedrope Ø14mm(code 1-30-240-60114) in thethroatof
the flue gas box and fix this one with help of 2 washers M12 and 2 nuts
DIN934 M12.
